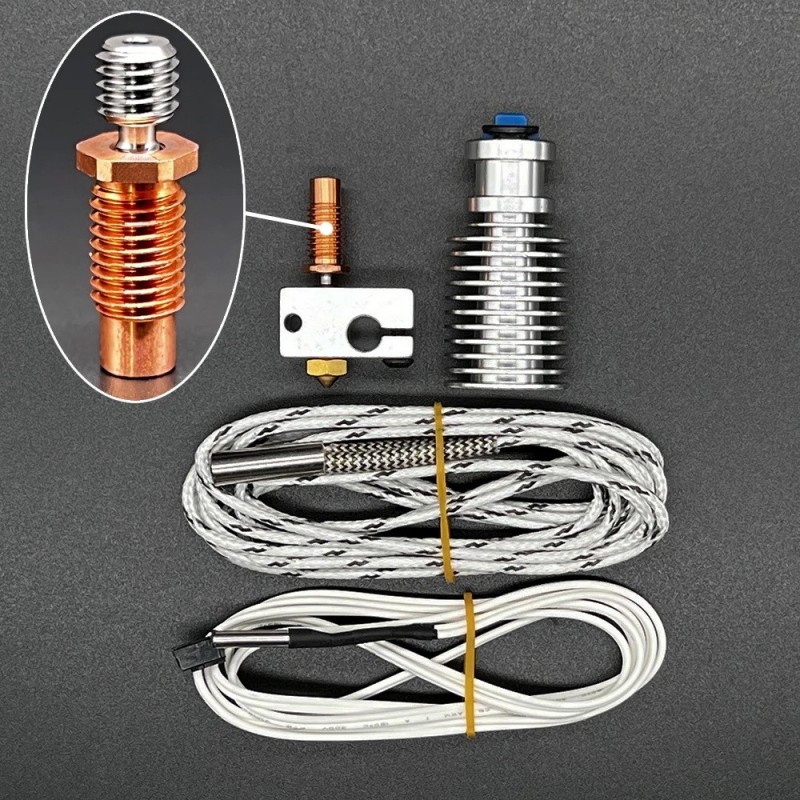

E3D V6 Hotend Kit 3d Printer Accessories 320℃ High Temperature Voron 2.4 J-head Remote Extruder Parts 24V 1.75/0.4MM

Αναφορά (SKU): E3DV6-24V

Περισσότερες λεπτομέρειες

Διαθέσιμο

Εκτύπωση

Άλλες πληροφορίες

The following two types of hotend E3DV6 and Voron 2.4 are compatible with each other, with the same installation size, and can be directly replaced with each other on the same machine.

Shipping List：

Description:
Two kinds of metals are used to make the throat tube. Titanium is used in the front part of M6 to reduce thermal conductivity, while copper is used in the back part of M7 to help heat dissipation. The thermal barrier performance is better than that of the original V6 and the printing quality is improved.Size:heat end screw M7, heating end M6Total length 24.4mmUse for: 1.75mm filamentMaterial:Copper & Titanium alloy
Product specification
Voltage: 12V/24V
Power: 50W
Heating head size: 6 * 20mm
Heating head material: 304 stainless steel
Line length: 1M
Line thick: 0.5 mm⊃2; (The cross section of the copper wire inside the heater is 0.5mm⊃2;)
Color: as shown in the picture
Heating temperature: up to 350 degrees
Model: HT-NTC100K thermistor temperature sensor component
Specifications: Negative Temperature Coefficient (NTC) Thermistor
Type: B3950
XH2.54 Terminal
Temperature measurement head size: 3 * 15mm
No need to change the firmware program to directly replace the original thermal resistor
Thermistor temperature measurement is stable. The temperature measurement of the upgraded HT-NTC100K can be up to 320 degrees, can effectively replace the K-type thermocouple. It helps much to solve the issues of strict requirements of K-type thermocouple wiring, and the line is long which is susceptible to get external interference and result in temperature fluctuation that can affect the printing quality.

V6 Heating Block:

Size: 16mm*16mm*12mm

Material: 6061 aluminium alloy

With HT-NTC100K high temperature thermistor and 40W/50W heater, the maximum temperature and heating temperature can up to 320 ° ( temperature limit is 320°, recommend not to use more than 320 °).

V6 Throat Tube:

Specifications: inner hole 2mm; radiating end threaded M7; heated end M6; total length : 22.4mm

Material: 316F / stainless steel

Scope: 3D-V6 long distance wire;

V6 Heat Cooling Tube:

Specifications:

connection thread M7

Joint connecting thread G1/8

Feeding hole Φ4.2 (with 4 × 2 Teflon tube PTFE)

Installation position Φ12 × 3.7

V6 Nozzle:

Dimensions: 12.5mm * 7mm

Material: Copper

Nozzle Accuracy: 0.2mm, 0.3mm, 0.4mm, 0.5mm (support 1.75mm)

Screw outer diameter: 6mm (Metric M6, tooth length 5.5mm, ID 2mm)

Machining error is within 0.005mm. Customization is available.

V6 Pneumatic Fittings:

Inner diameter: 4mm for 1.75mm filament guiding tube - ID2mm OD4mm PTFE tube use

Thread: 1/8"

Thermistor temperature measurement is stable. The temperature measurement of the upgraded HT-NTC100K can be up to 320 degrees, can effectively replace the K-type thermocouple. It helps much to solve the issues of strict requirements of K-type thermocouple wiring, and the line is long which is susceptible to get external interference and result in temperature fluctuation that can affect the printing quality.

The improvements compared to the other temperature resistance in the market.

1. Upgrade from the original ordinary temperature probe directly exposed temperature measurement to resistance package temperature measurement. Temperature measurement head cylinder diameter 3mm, length 15mm, can be used with the heating block that support the thermocouple.

2. The temperature measurement range is increased from -50 ℃~ +250℃ to -50 ℃ ~ +320 ℃. It helps a lot to print high-temperature filament, can replace the original K-type thermocouple temperature. If need to print high-temperature filament, the HT-NTC100K thermistors are highly recommended.

3. The new version of HT-NTC100K temperature measuring thermistor adopts 304 stainless steel, with the internal temperature package to ensure the maximum service life with precision temperature measurement.

4. HT-NTC100K thermistor adopts white high-temperature cord, can bear higher temperature. And for customers' convenience, the wires adopts line connection, the customer can tear the wires depends on their application. The high temperature line is double thicker than others in the market, not easy to break off.

5. Supports the customization of different specifications, including the temperature head cylinder size, length of the wires (MOQ is 100 sets).

6. Can be used with the new version of the heater (the new heater can heat up to 350 degrees).
