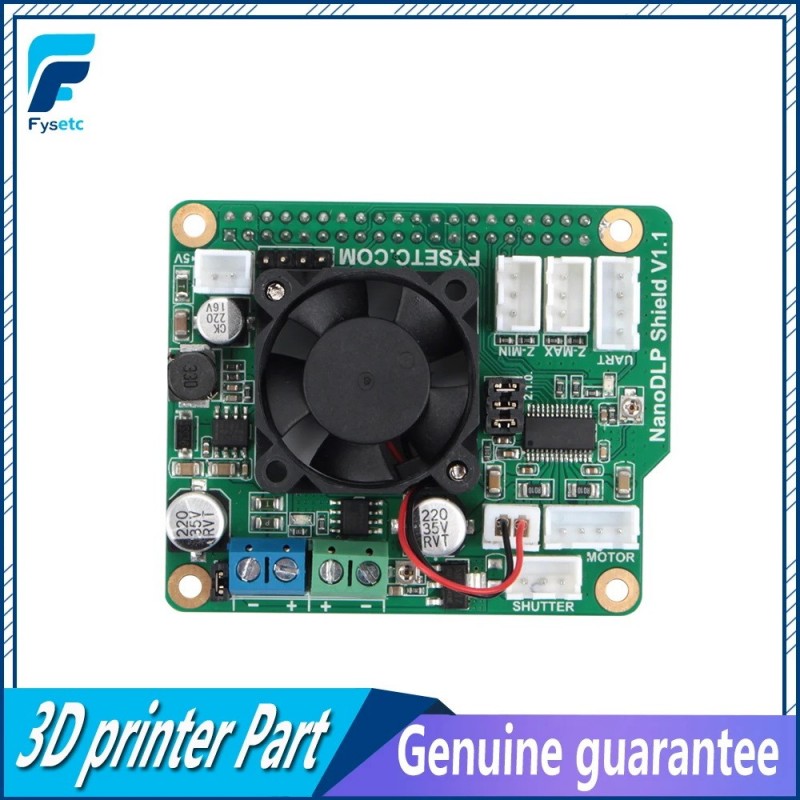

NanoDLP Shield V1.1 Expansion Board With DRV8825 Controled MOS For Raspberry Pi 3B Μεγαλύτερη προβολή

NanoDLP Shield V1.1 Expansion Board With DRV8825 Controled MOS For Raspberry Pi 3B

(SKU): NanoDLP-Shield V1.1

NanoDLP Shield V1.1 Expansion Board With DRV8825 Controled MOS For Raspberry Pi 3B

Περισσότερες λεπτομέρειες

Διαθέσιμο

30,00 € με Φ.Π.Α

Άλλες πληροφορίες

NanoDLP Shield V1.1 Expansion Board With DRV8825 Controled MOS For Raspberry Pi 3B And NanoDLP's Light-cured 3D Printer Parts
This expansion board is designed for the Raspberry Pi 3B and is used to run NanoDLP's light-cured 3D printers. The board contains a 9-28V to 5V circuit that provides a maximum of 3A and other interfaces required by NanoDLP. See the instructions below.

Features
9V-28V to 5V@3A Buck Converter
DRV8825 Stepper Driver
12V Fans (cooling the Pi)
2X Endstops
Controled MOS for ext LED driver
I2C Connector for LCD1602
Uart Connector for Touch Screen
Shutter support
5V OUT Connector for ext Board

Package Listing:
1* board
