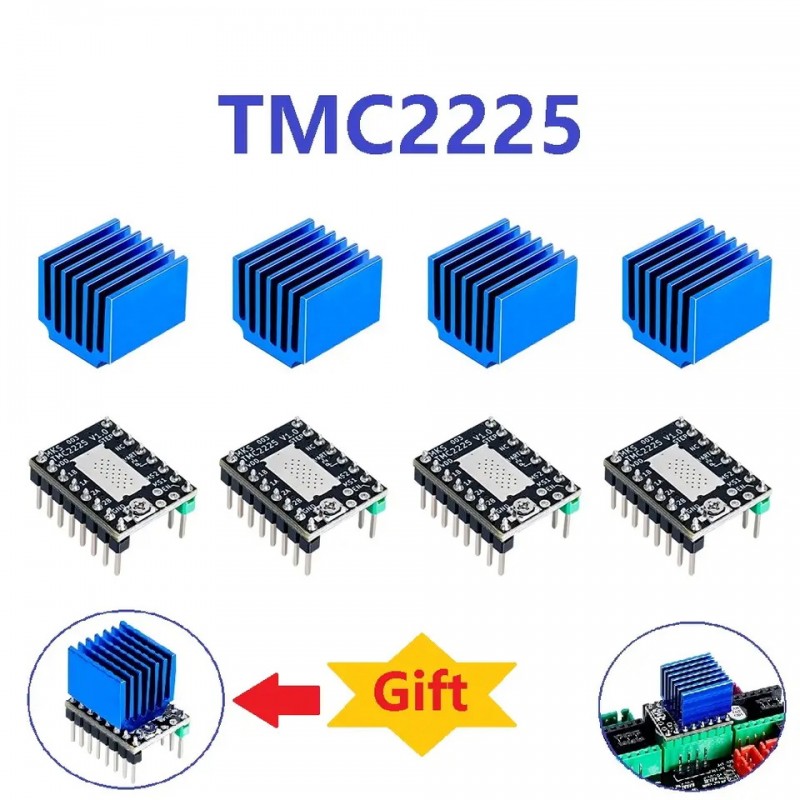

5pcs Stepper driver TMC2225 module 3D printer accessory Stepper motor drive TMC 2225

Αναφορά (SKU): TMC2225-5PCS

Περισσότερες λεπτομέρειες

Διαθέσιμο

Εκτύπωση

Άλλες πληροφορίες

TMC2225 is an upgraded product to replace tmc2208. It has a better price than tmc2208. What's more, a larger heatsink contributes to its better heat dissipation performanceThe only difference between TMC2225 and TMC2208 is package.The package of TMC2225 is HTSSOP,and the package of TMC2208 is QFN. It can replace TMC2208 and TMC2209 completely.

Specifications:

Configuration: STEP/DIR or UART

Micro steps: Up to 1/256MicroPlyer: 1/256Logic

Voltage: 3.3-5VMotor

Voltage: 4.75-36VMotor

Phase Current: 1.2A RMS, 2.0A Peak

Microstep setting：M0M1STEPGNDGND4VCC-IOGND8GNDVCC_IO16VCC_IOVCC_IO32Driver current regulation:Verf measures the voltage of Gnd and potentiometer middle.

Please DO NOT connect the motors when measuring the voltage, or it's easy to burn the drive.

Please connect the power supply when measuring voltage as well, do not connect only the USB power.

Please pay special attention to the direction, do not insert wrongly!Driver current algorithm:I = Vref Default I = 1.25A

Package include:

4SETS add 1set (a gift)

Note: Please allow 1-3mm error due to manual measurement.

Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
