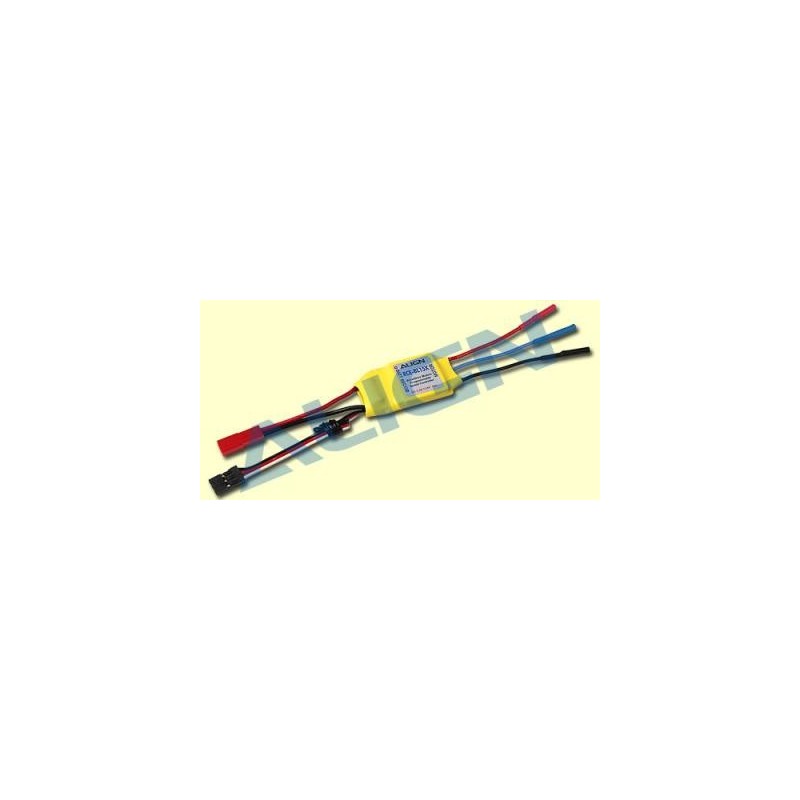

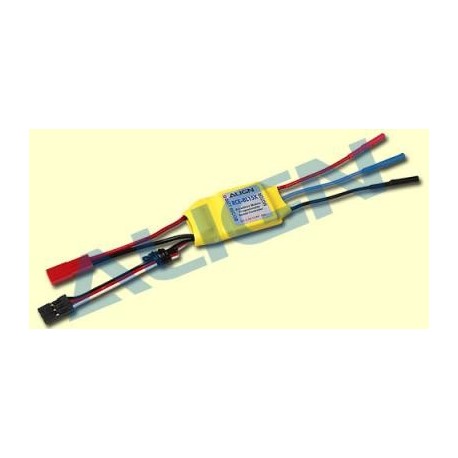

Align 15A Brushless ESC(Governer Mode) RCE-BL15X Μεγαλύτερη προβολή

Align 15A Brushless ESC(Governer Mode) RCE-BL15X

(SKU): KX880003A

Align 15A Brushless ESC(Governer Mode) RCE-BL15X

Περισσότερες λεπτομέρειες

Διαθέσιμο

38,99 € με Φ.Π.Α

Άλλες πληροφορίες

Product Details

Product:
Package:
Instructions:Specification:

Feartures:
?5-6V step-less adjustable BEC output allowing custom voltage setting to match servo specification.
?Linear BEC output power system, suitable for 7.4-11.1V (2S-3S) Li battery, with continuous current rating of 2A, and burst rating of 3A.
?Three programmable throttle speed settings to support quick throttle response.
?Includes soft start and Governor Mode.
?Small and compact PCB design for lightweight and simple installation.
?Large heat sink for optimum thermal performance.
?Highly compatible to work with 98% of all brushless motors currently on the market.
?Ultra-smooth motor start designed to run with all kinds of brushless motors.
?The power inlet utilizes a Japanese made "Low ESR" capacitor in order to provide stable power source.
?The throttle has more than 200 step resolution that provides great throttle response and control.

?Contimuous current: 15Amps with porper air flow
?Surge current: 20Amps
?Supporting motor types: 2 poles to 10+ poles in/outrunner brushless motors
?Supporting maximum RPM: 2poles=>190,000rpm
?Supporting input voltage: 5.5V~12.6V
?BEC output voltage: 5-6V step-less adjustment
?Supporting battery types: Li-Po 2~3 cells
?Size: 42X24X9.3mm
?Weight: 15g
Accessories:
plus
?ALIGN standard 4mm socket terminal X3pcs
