FlyCamOne Transmission Set 5,8GHz

Video transmission system for transmitting live pictures from the modell to the ground. The FlyCamOne Transmission Set 5,8GHz allows the live transmitting of video signals from the FlyCamOne HD 720p which is mounted at the model. The receiver unit on the ground shows the pictures on a 2.5 inch display which is available seperatley or on every monitor using a cinch input. The systems allows video transmitting for approx. 300m (68.9ft)

Technical data sending unit:

• Dimensions: 53 x 48 x 19mm (2.09 x 1.89 x 0.75in)
• Weight: 30g (1.06oz)
• AV input: 10 pin
• Audio output: 3.5mm
• Power consumption 140mA
• Channels: 8
• Transmission power: 25mW
• Range: 300m (68.9ft)
• Antenna: 3dB

Technical data receiver unit:

• Dimensions: 100 x 59 x 18mm (3.94 x 2.32 x 0.71in)
• Weight: 70g (2.47oz)
• Battery: 1000mAh
• Range: 300m (68.9ft)
• Antenna: 3dB

Notice: That signal transmission of 2.4GHz RC systems will not be interfered. The FlyCamOne Transmission Set sends on a different frequency band with 5.8GHz. So the interference of the steering signals is impossible.

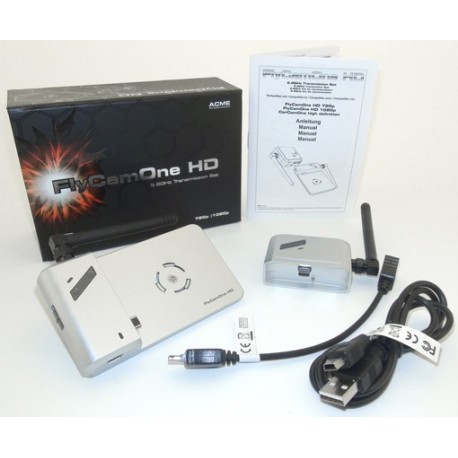

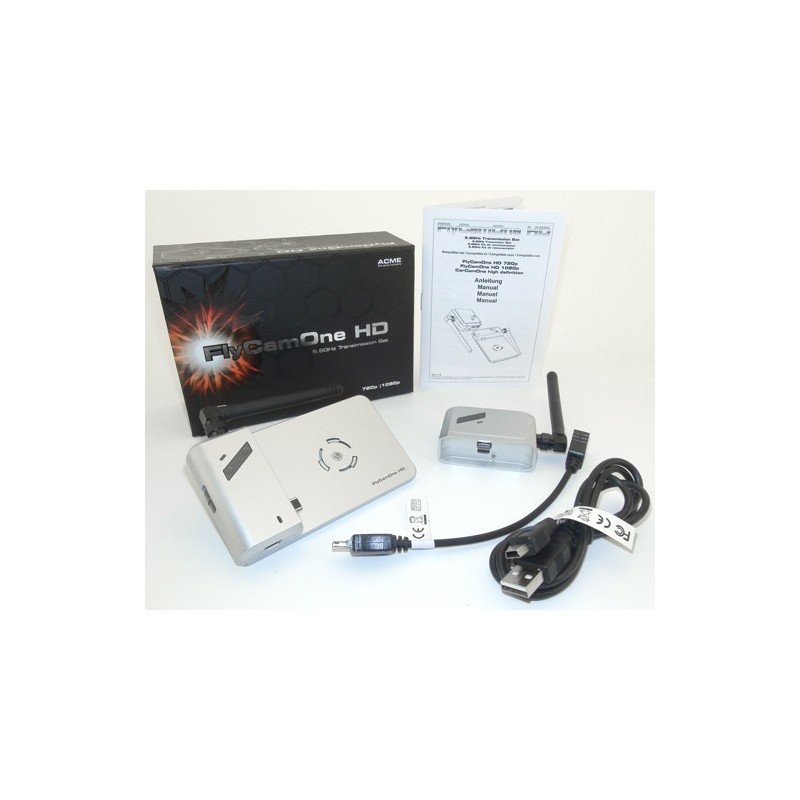

Delivery includes sending unit, receiver unit, adapter cable, USB cable, manual.
