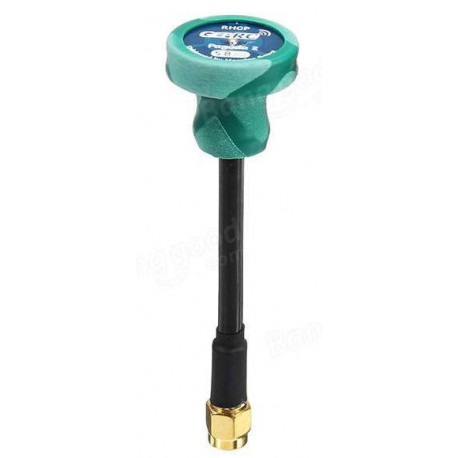

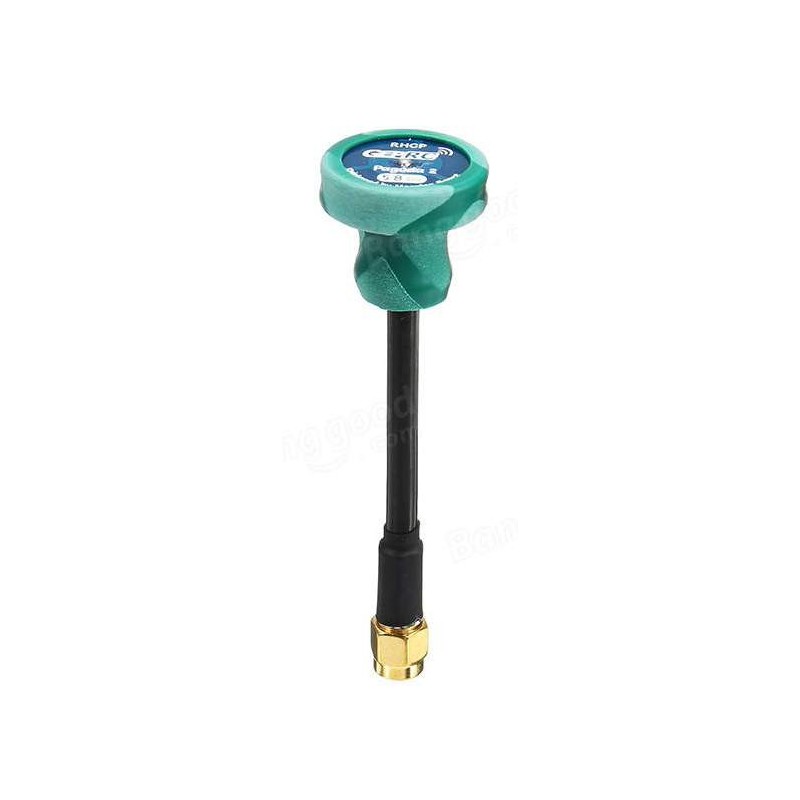

GEPRC GEP-Pagoda2 5.8G FPV Antenna RP-SMA RHCP

Αναφορά (SKU): 663415-RPSMA-RHCP

Περισσότερες λεπτομέρειες

Διαθέσιμο

Εκτύπωση

Άλλες πληροφορίες

Summary:

“Pagoda 2” is based on Maarten Baert optimized circular polarized antenna, Produced by GEPRC customize a 5.8 G antenna, is the scope of its bandwidth of 500 MHZ (5.55 to 6.05 GHz). Structure consists of three layers of 1 oz copper foil embedded PCB, only 8 grams of weight,use special heat shrink packaging, solid, durable, and beautiful. PCB materials used 1.0 mm FR – 4, 1 oz copper foil.

Pagoda 2 has natural advantages, axis ratio is below 1.3, standing wave ratio of 1.2.Can be used for transmitting antenna and receiving antenna (transmit and receive all use pagoda2 antenna is better).

Specification:

Model: GEP-Pagoda2

Net weight: 4.5g
Gain: 3dBi

Product size: 52mm

Operating frequency: 5.8GHz

Bandwidth range: 500MHz (5.55 - 6.05 GHz)

Match: Return loss (S11) <-20 dB, VSWR <1.22 (center frequency)

Axial Ratio: <1.3

Radiation efficiency: 95%

Interface type: SMA, RP-SMA

Package Included:

1 x GEPRC Pagoda 2 5.8GHz Antenna
