Serial I2C/IIC/SPI Interface 162 16X2 1602 Character LCD Module Display Screen LCM with Yellow Green Backlight

Αναφορά (SKU): 1602G-YGYIT

Περισσότερες λεπτομέρειες

Διαθέσιμο

Εκτύπωση

Άλλες πληροφορίες

SLC1602G Character LCD Module

Serielle-I2C-IIC-SPI-Interface-162-16X-2

Basic Information

>> Model No.: SLC1602G
>> Product Type: Character LCD Module
>> Brand: Surenoo
>> Display Format: 16*02 Characters
>> Interface: Serial SPI / IIC
>> IC or Equivalent: AIP31068
>> Font: English & Japanese
>> Outline Dimension: 80.00(W)x36.00(H)x13.50(T)mm
>> Visual Area: 64.50x14.50mm
>> Active Area: 55.70x9.40mm
>> Viewing Direction: 6:00
>> IC Package: COB
>> Power Supply (Type): 5.0V

Character LCD Module Code Instruction

➤ Datasheet Download (http://surenoo.tech/)

1. Please browse "Surenoo Technolgy" technical support website;

2. Select "MONO-Chrome LCD Series";

3. Click "Standard Character LCD Module" to download Selection Guide;

4. Search "SLC1602G" to direct it, and then download the datasheet.

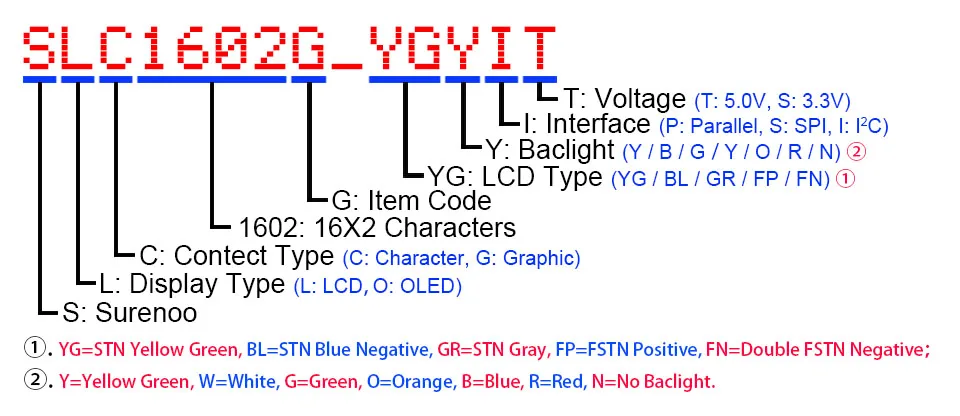

➤ SLC1602G Series Table

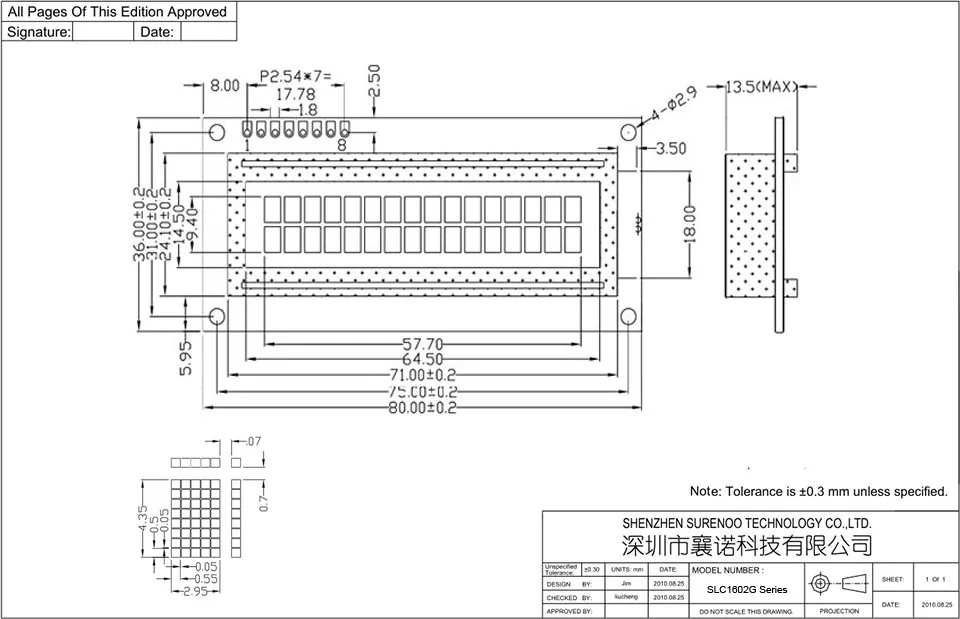

➤ SLC1602G Outline Drawing

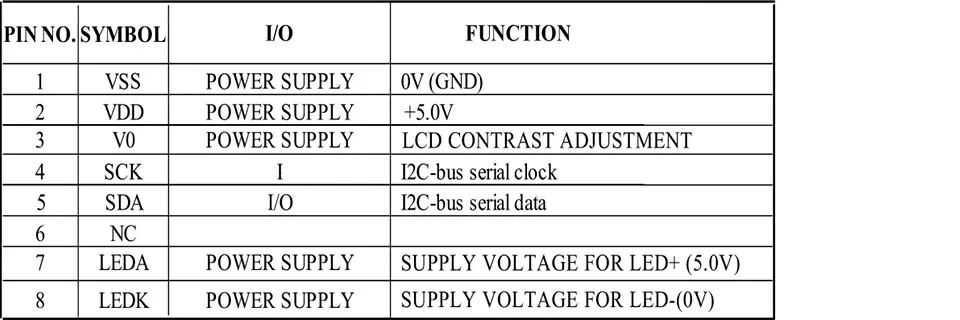

➤ SLC1602G Pin Configuration
