Description：

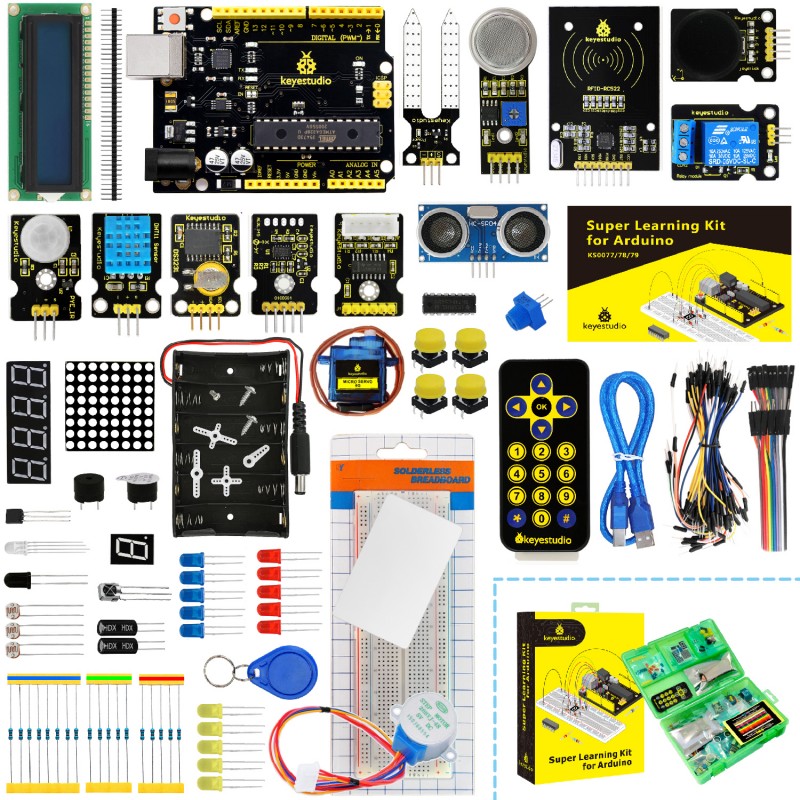

keyestudio super learning kit is suitable for Arduino enthusiasts. This kit includes 32 projects with detailed tutorials, starting from the basics to more complex projects.

Different from other kits, it adds some functional modules, such as RFID,temperature and humidity modules. There is connection diagram and code for each project, making it easy for you to learn.

NOTE: KS0077 Kit doesn’t include Main board. KS0078 Kit includes V4.0 board. KS0079 KIT includes MEGA 2560 board.


Features：


1.Microcontroller：ATmega328P-PU

2.Operating Voltage：5V
3.Input Voltage (recommended) ：DC7-12V
4.Digital /O Pins：14 (D0-D13)(of which 6 provide PWM output)
5.PWM Digital /O Pins：6 (D3, D5, D6, D9, D10, D11)
6.Analog Input Pins：6 (A0-A5)
5.PWM Digital /O Pins：6 (D3, D5, D6, D9, D10, D11)
6.Analog Input Pins：6 (A0-A5)
7.DC Current per I/O Pin ：20 mA
8.DC Current for 3.3V Pin：50 mA
9.Flash Memory：32 KB (ATmega328P-PU) of which 0.5 KB used by bootloader
10.SRAM：2 KB (ATmega328P-PU)
11.EEPROM：1 KB (ATmega328P-PU)
12.Clock Speed：16 MHz
13.LED_ BUILTIN：D13
