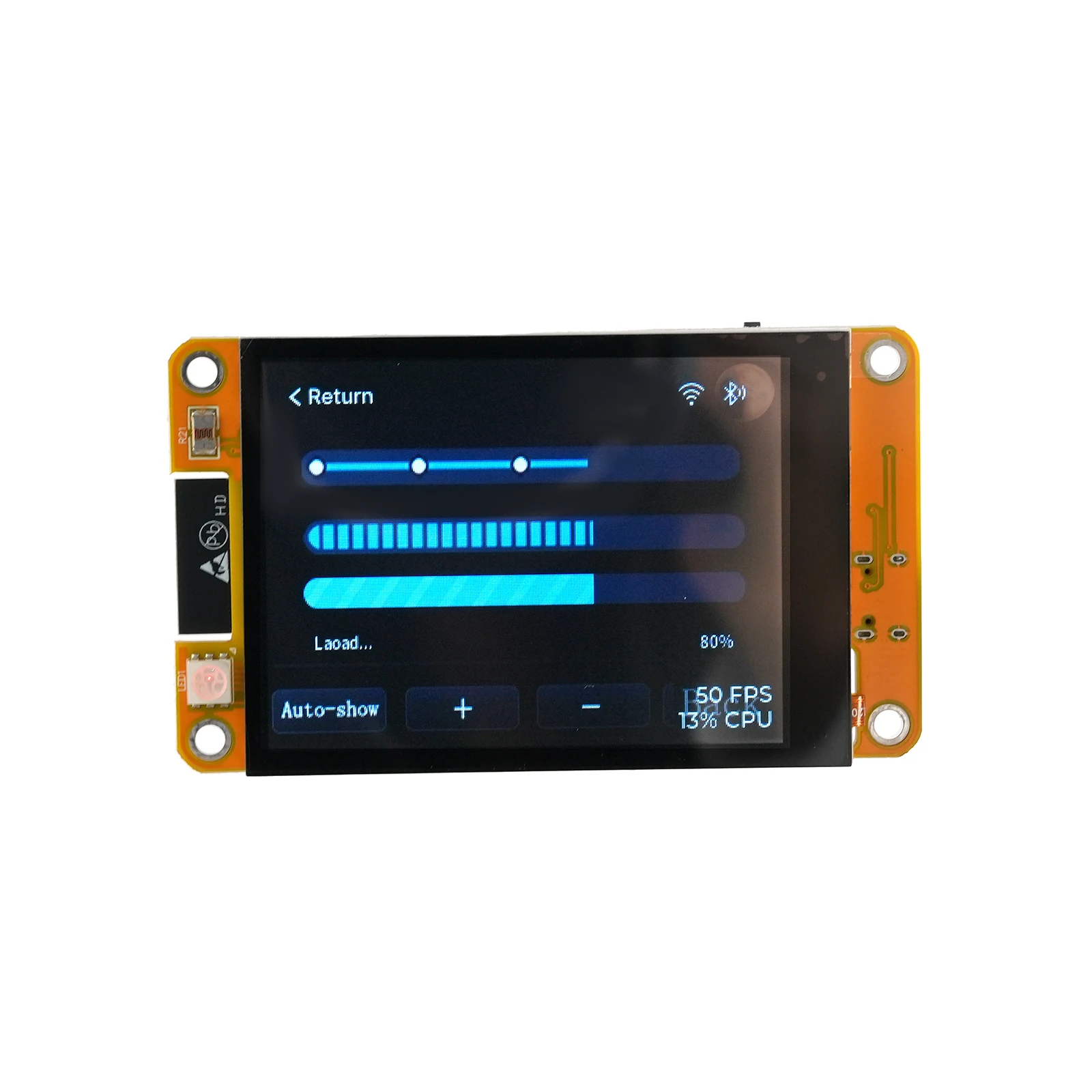

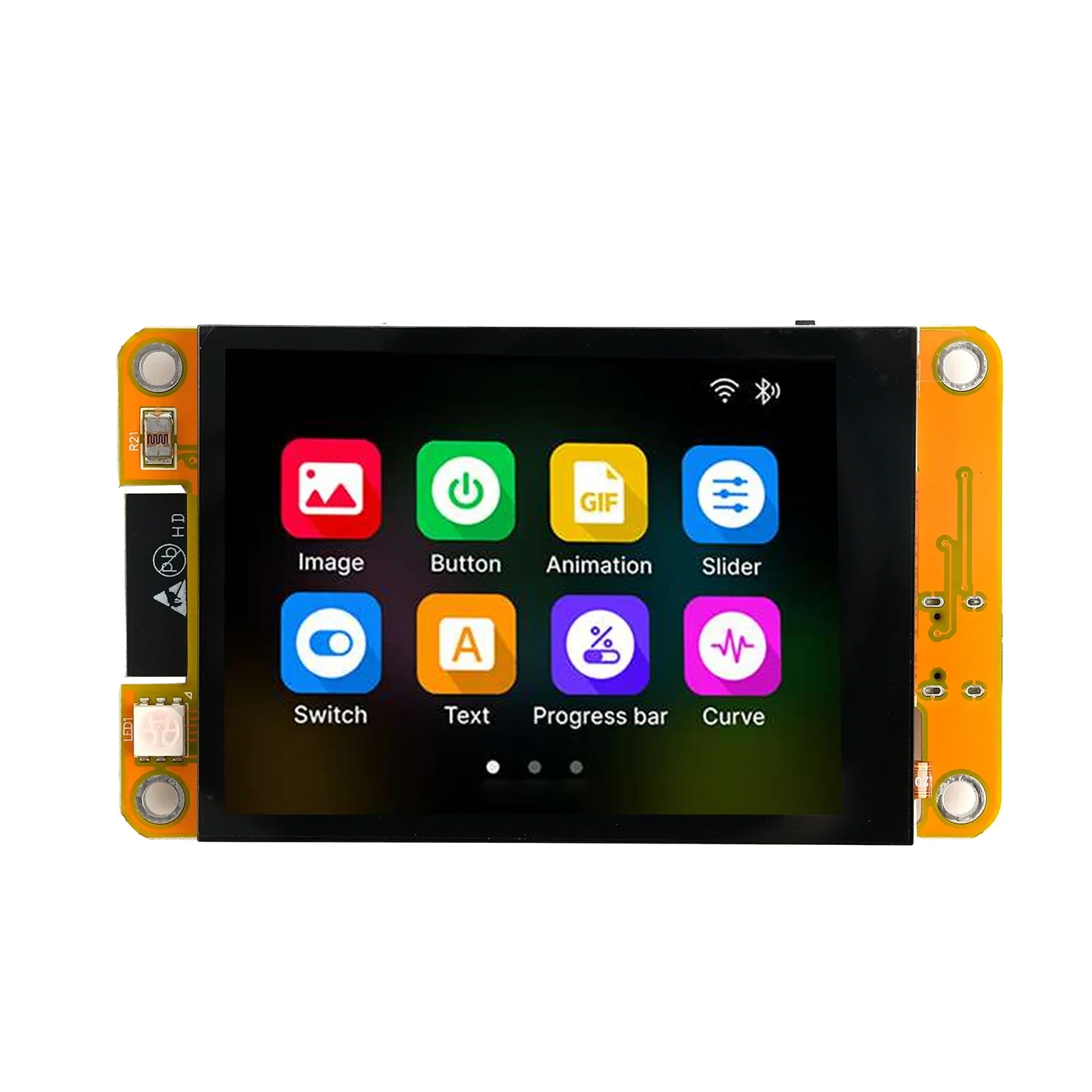

JC2432W328 ESP32 2.8-Inch IPS Standard Definition TFT-TN Display Module ST7789 Resistive Touch / Capacitive Touch Screen

- Display Color: RGB 65K Color
- SKU 01: JC2432W328N (Without Touch Panel)
- SKU 02: JC2432W328R (Resistive Touch Panel)
- SKU 03: JC2432W328C (Capacitive Touch Panel)
- Display Size: 2.8 Inch
- Dispolay Type: TFT-TN
- Controller: ST7789
- Resolution: 240*320 (Pixel)
- Module Size: 50.00*86.00(mm)
- Effective Display Area: 43.20*57.60(mm)
- View Angle: >60°
- Operating Temperature: -20℃~70℃
- Storage Temperature: -30℃~80℃
- Operating Voltage: 5.0V
- Power Consumption: About 115mA

Features
- 2.8-inch color screen, support 16 BIT RGB 65K color display, display rich colors
- 240X320 resolution
- The sample program has been programmed in the factory and can be plugged in

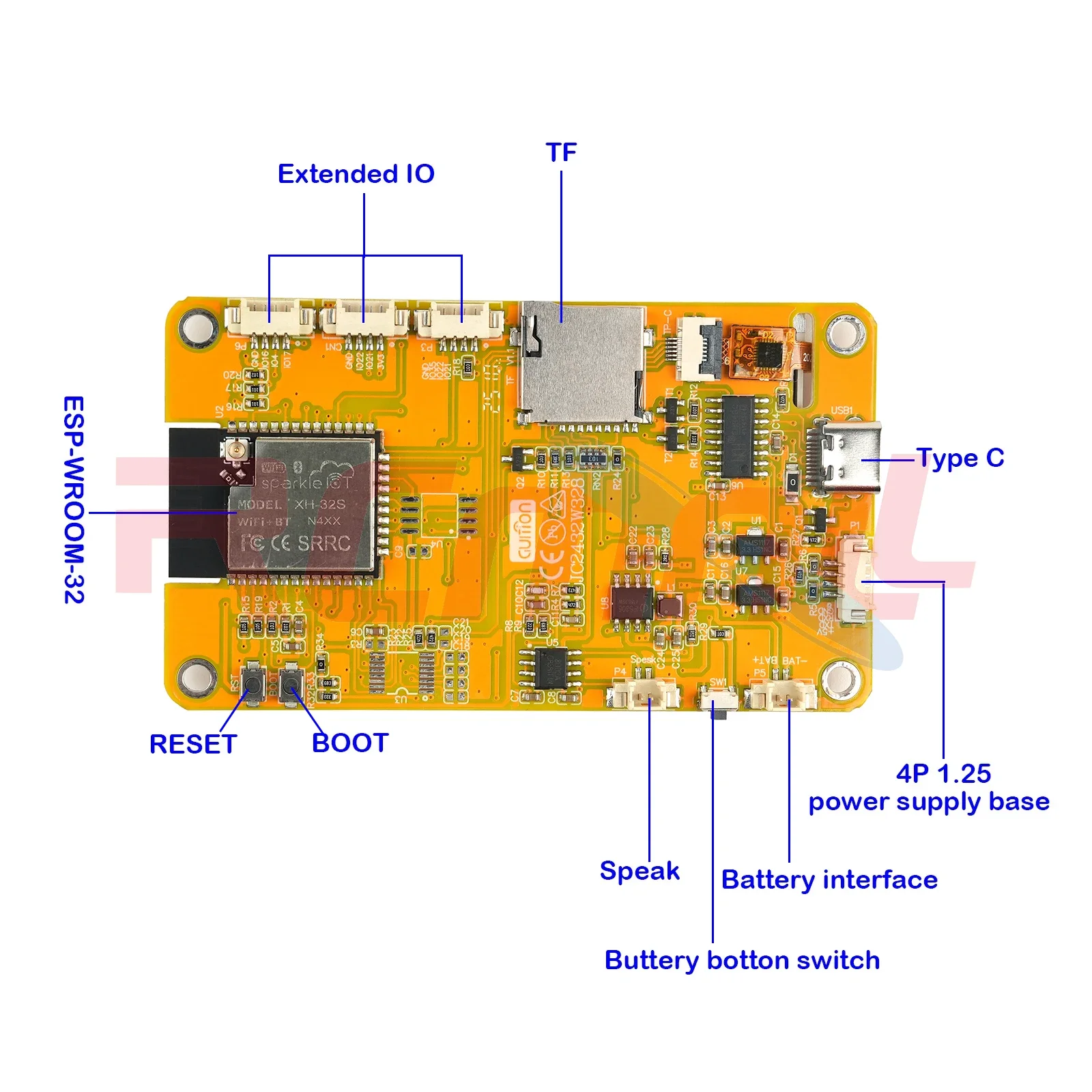

- With TF card slot for easy expansion storage
-  Provide arduino library functions and sample programs to facilitate rapid secondary development
- Lithium battery charging and discharging circuit with overcharging and discharging protection
- Support one-click download program
- Up to 10 IOs can be used separately by customers
- Military-grade process standards, long-term stable work
