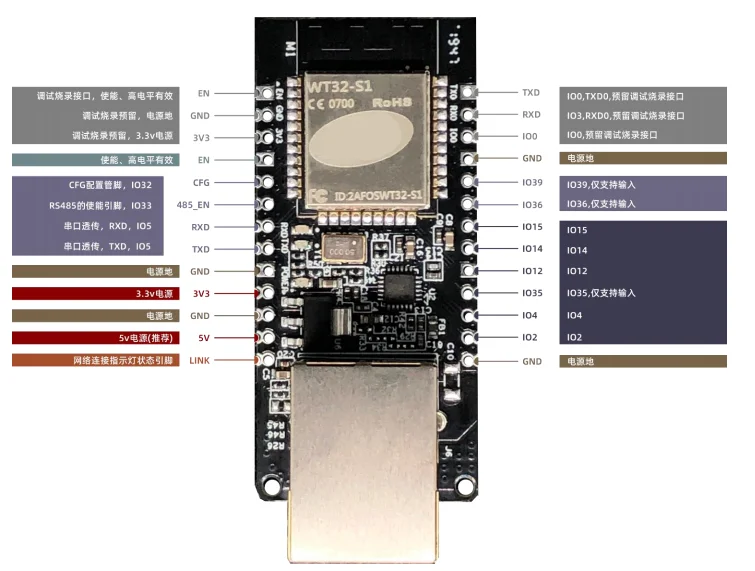

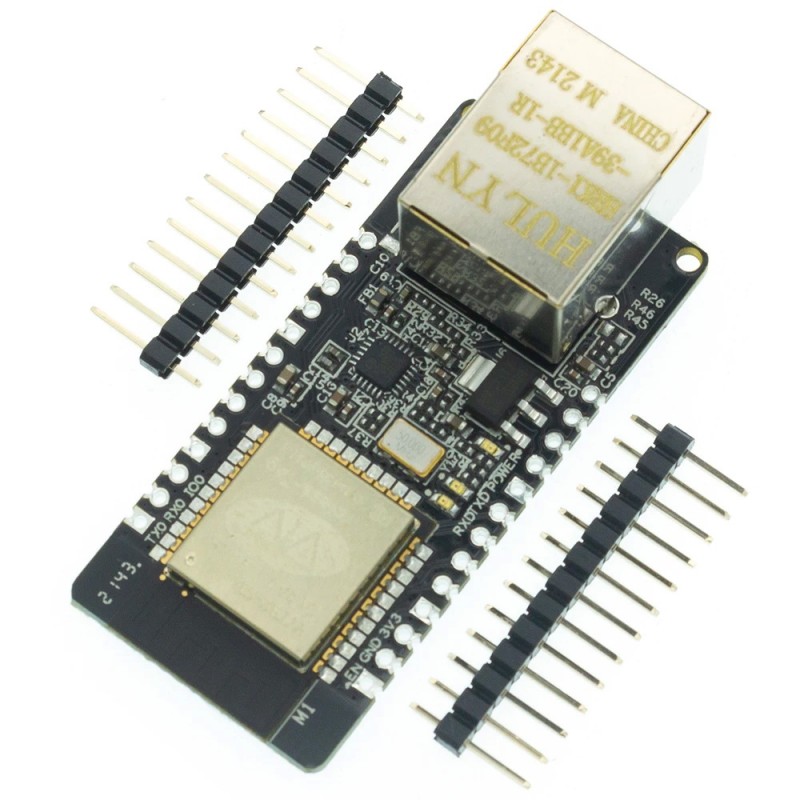

WT32-ETH01 Embedded Serial Port Networking Ethernet Bluetooth WIFI MCU Module ESP32 Wireless Combo Gateway Module Board

Note:it is not included pins

Main features of ETH 01 gateway:

Using dual-core Xtensa 832-bit LX6 microcontroller. Integrated SPI flash memory 32 MbitSRAM 520 KB

Support TCP server, TCP client, UDP server, UDP client working mode

Supports four data ports of serial port, wifl, Ethernet and Bluetooth to be combined in pairs, and data is transparently transmitted

Support to connect to the network via wired network or wifi to upgrade the firmware

Support wifi to connect to the Internet or LAN through the router, establish tcp/udp connection, and access the user's designated service

Device.

Support wired network access

Support user secondary development

Industrial grade working temperature range: -40~+85

Serial port baud rate: 80-5000000

Network protocol: IPv 4, tcp/udp

Software encryption: AES/RSA/ECC/SHA
