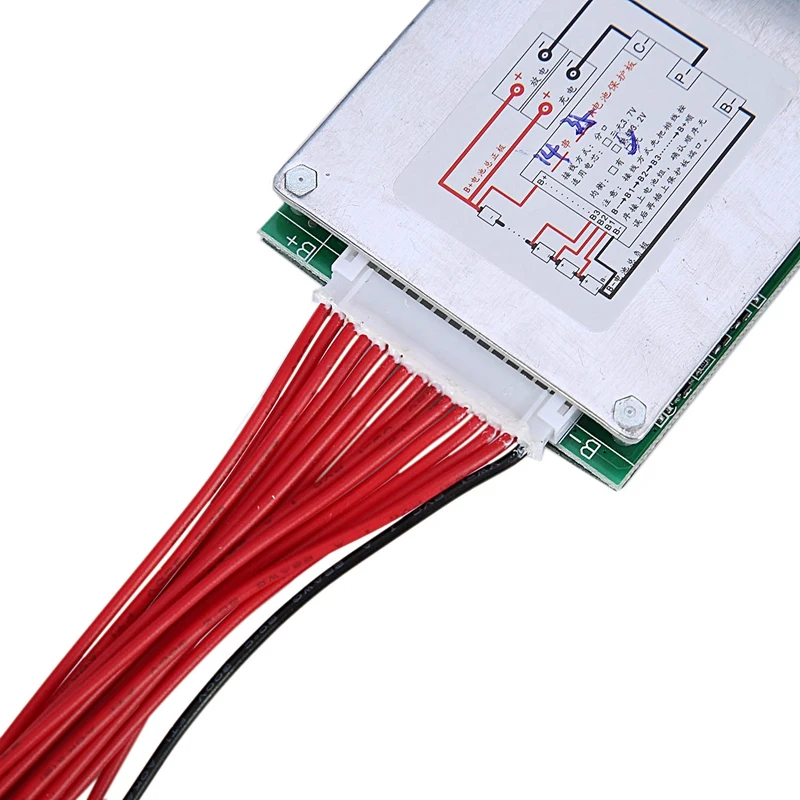

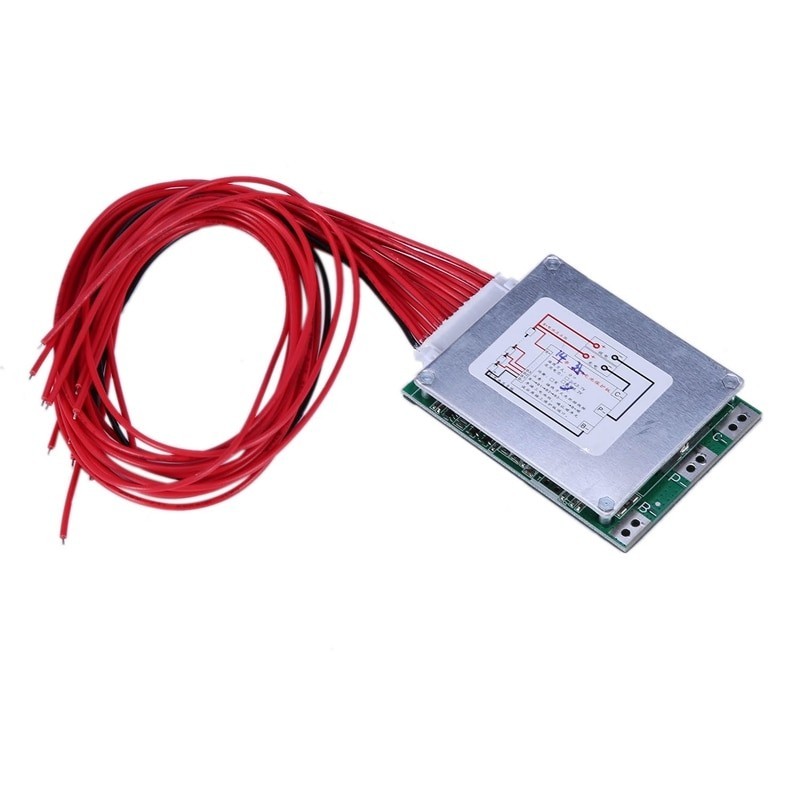

14S 52V 35A Li-Ion Lipolymer Battery Protection Board BMS PCB Board for E-Bike EScooter

Αναφορά (SKU): I298047

Περισσότερες λεπτομέρειες

Διαθέσιμο

Εκτύπωση

Άλλες πληροφορίες

Continuous Discharge Current: 35A
Instantaneous discharge current:100A
Charging voltage: 58.8V
Maximum charging current: 7A
Overcharge detection voltage: 4.28±0.05V
Overcharge protection delay: 100ms
Overcharge release voltage: 4.08±0.05V
Overcharge detection voltage: 4.2±0.025V
Battery balance detection voltage: 4.2±0.025V
Battery balance release voltage: 4.2±0.05V
Battery balance current: 45±5V
Overdischarge detection voltage: 2.55±0.08V
Overdischarge detection delay: 50ms
Overdischarge release voltage: 3.0±0.1V
Overcurrent detection voltage: 150mV
Overcurrent detection delay: 15ms
Overcurrent protection current: 120±20A
Overcurrent protection release condition: disconnect load
Short circuit protection condition: external load short circuit
Short circuit detection delay: 200uS
Short circuit protection release condition: disconnect load
Temperature protection: Set as needed
Main circuit conduction internal resistance: less than equal 15mΩ
Working current: less than equal 60uA
Sleep current (when the battery is over-discharged): less than equal 10uA
Temperature range: -30/+80°C
Size: 69*51.5*10mm
colour:Silver + green
Material:Metal + PCB

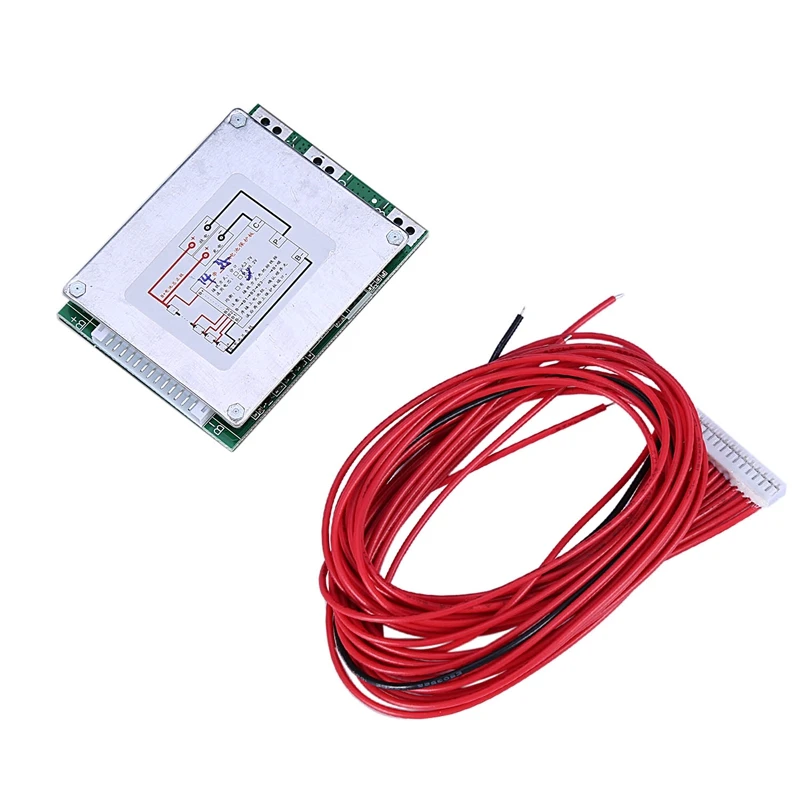

Package Contents:

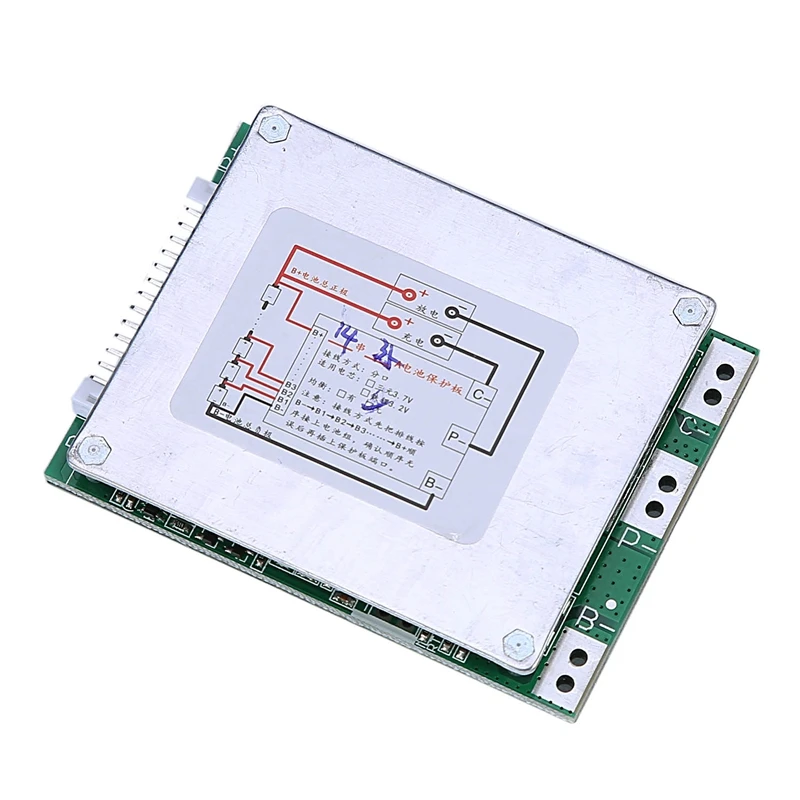

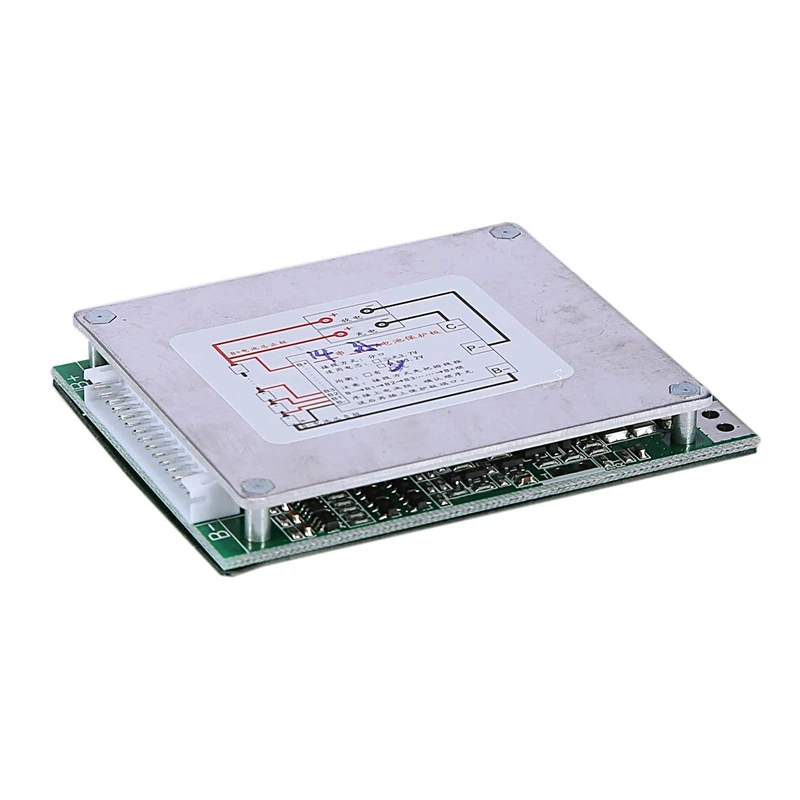

1 * Li-ion Battery Protection Board

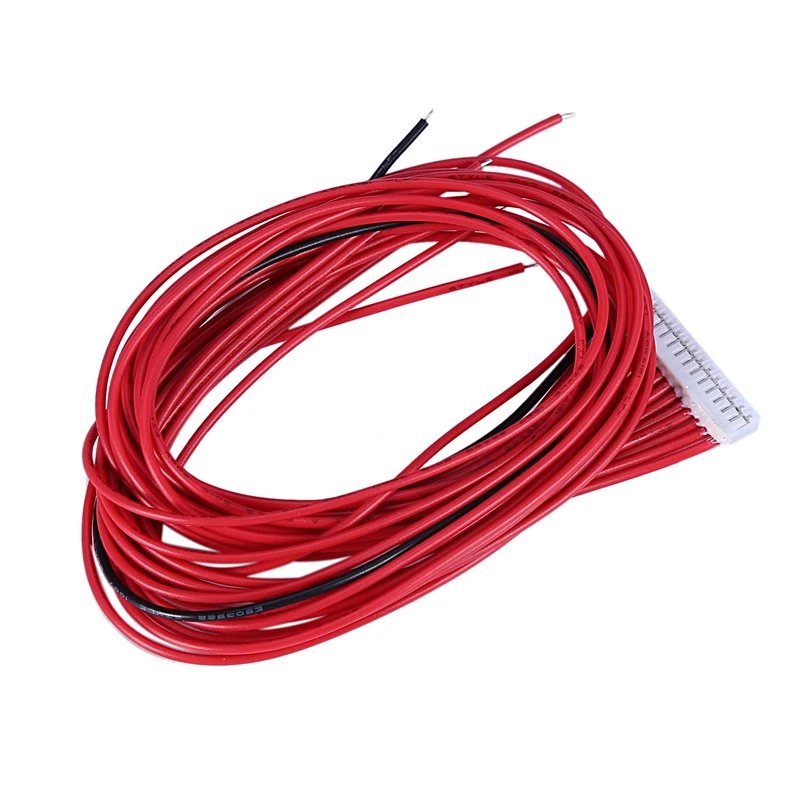

1 * Cabel wire
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
