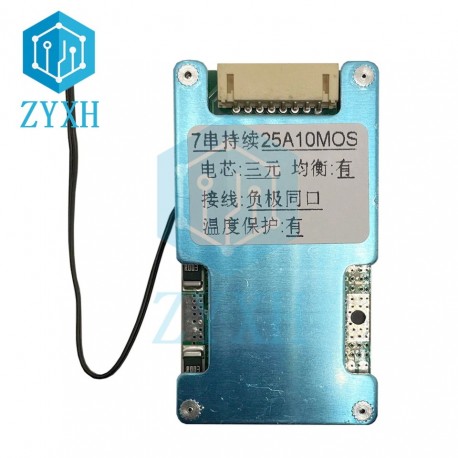

BMS 7S 24V 25A

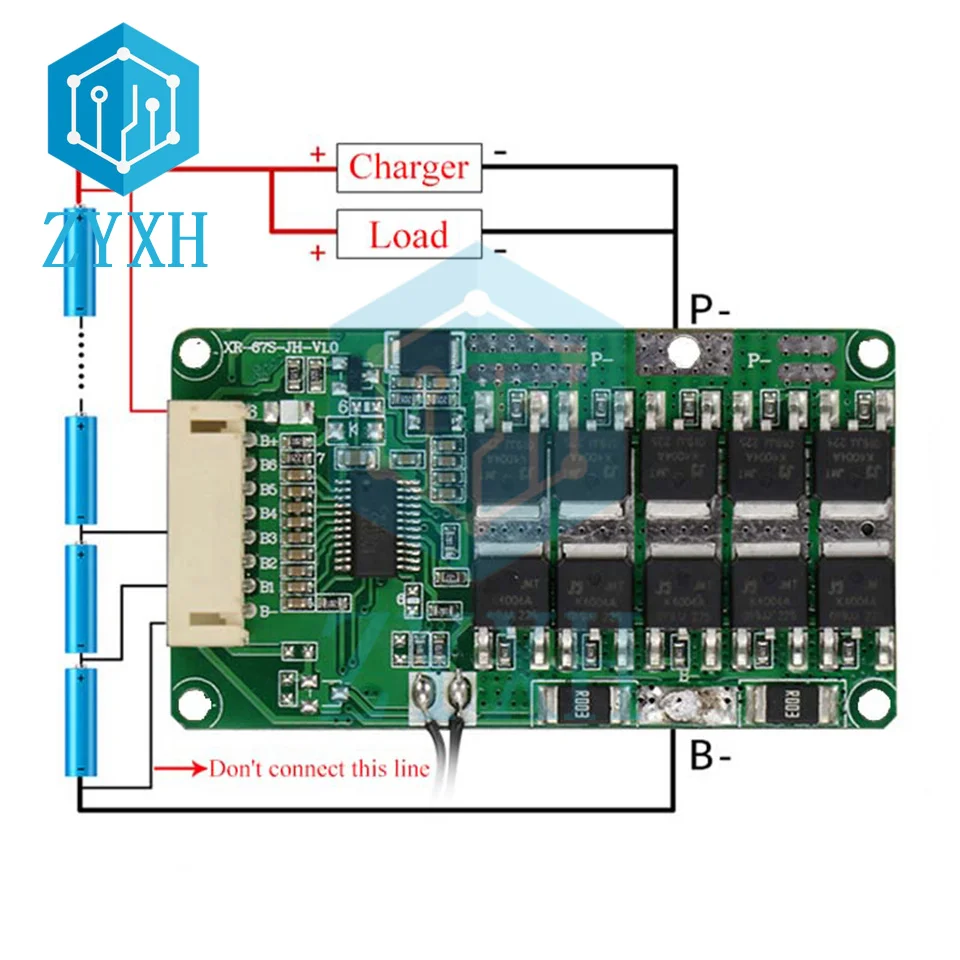

Connection method: Common Port

Discharge
Single battery over-discharge voltage: 2.7V±0.08V
Continuous working current: 25A
Instant protection current: 60A
Overcurrent recovery conditions: charge recovery or disconnect load
Short-circuit recovery conditions: charge recovery or disconnect load

Charge
Single battery overcharge voltage: 4.25V±0.025V
Continuous charging current: 20A
Charge equalization voltage: 4.15V±0.025V
Charge equalization current：40mA
Charger voltage: 30V (recommended)

Charging over temperature protection: 50℃
Discharge over temperature protection: 70℃

Working power consumption: ≤30uA
Main circuit conduction internal resistance: ≤20mΩ
Temperature range: -40 to 80℃
Wire break protection: Yes
Wire Length: 40cm
Appearance size: 60*33*7MM
