Continuous Discharge Current: 45A
Instantaneous discharge current:150A
Charging voltage: 42V
Maximum charging current: 45A
Overcharge detection voltage: 4.25±0.025V
Overcharge protection delay: 100ms
Overcharge release voltage: 4.15±0.05V
Battery balance detection voltage: 4.2±0.025V
Battery balance release voltage: 4.2±0.05V
Battery balance current: 42±5mA
Overdischarge detection voltage: 2.8± 0.08V
Overdischarge detection delay: 100ms
Overdischarge release voltage: 3.0±0.1V
Overcurrent detection voltage: 150mV
Overcurrent detection delay: 10ms
Overcurrent protection current: 180±20A
Overcurrent protection release condition: disconnect load
Short circuit protection condition: external load short circuit
Short circuit detection delay: 200uS
Short circuit protection release condition: disconnect load
Temperature protection: Set as needed
Main circuit conduction internal resistance: less than equal 15mΩ
Working current: less than equal 40uA
Sleep current (when the battery is over-discharged): less than equal 10uA
Temperature range: -30/+80°C
Size: 120*60*10mm
colour:Silver + green
Material:Metal + PCB

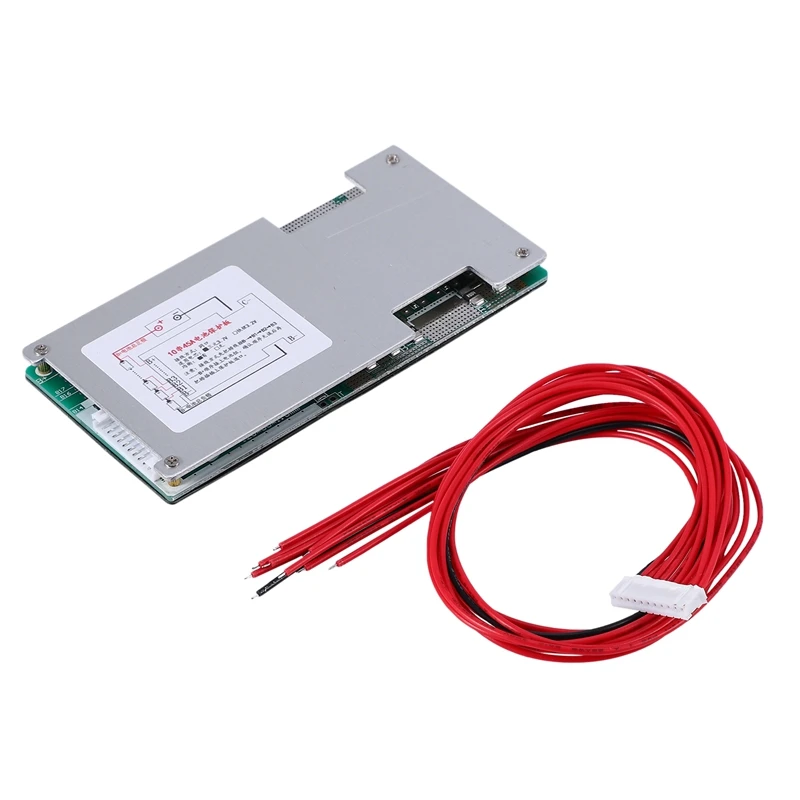

Package Contents:

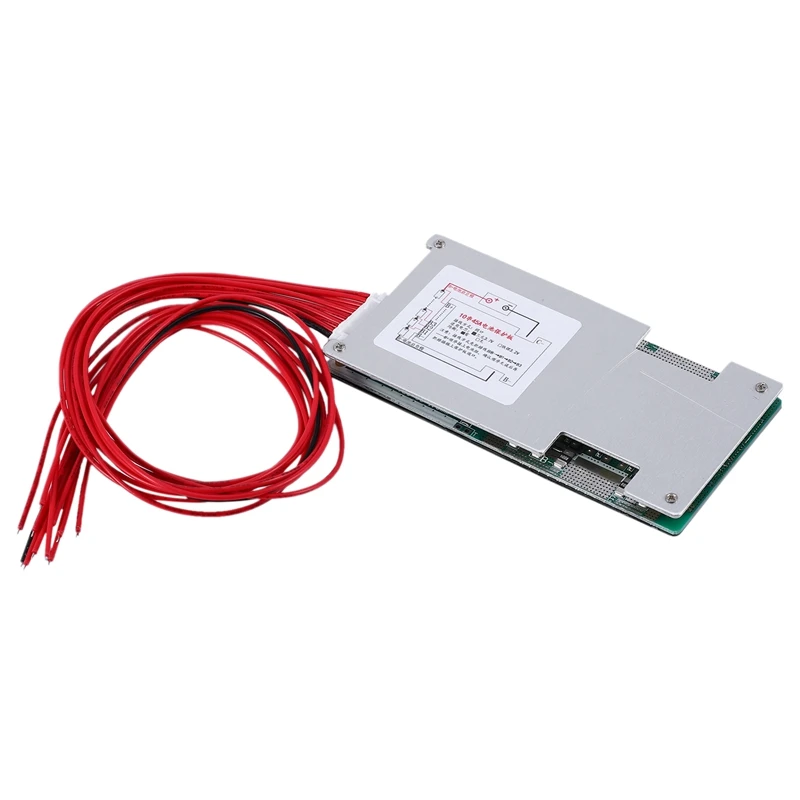

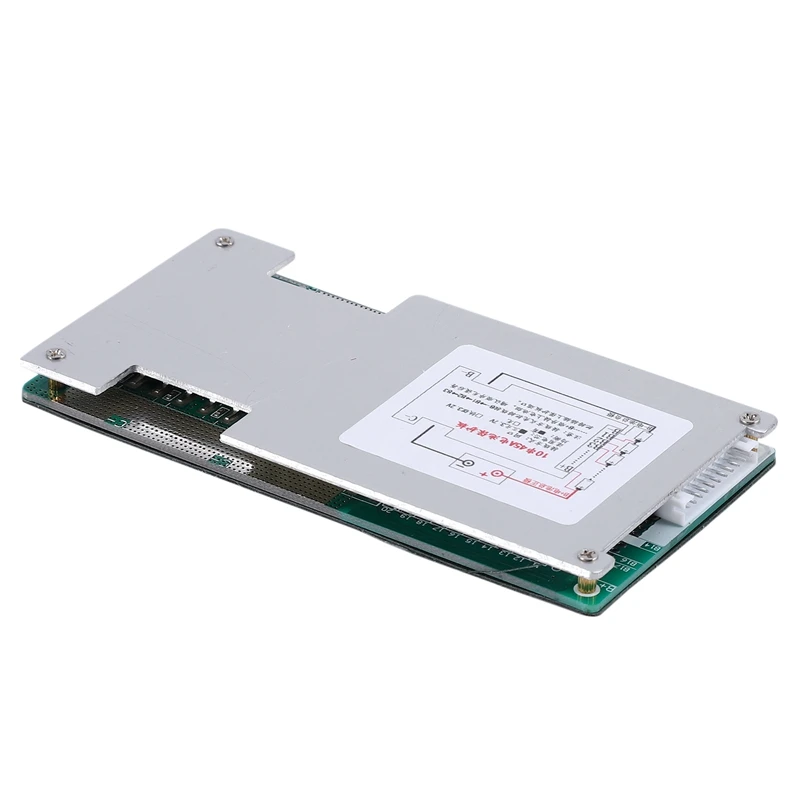

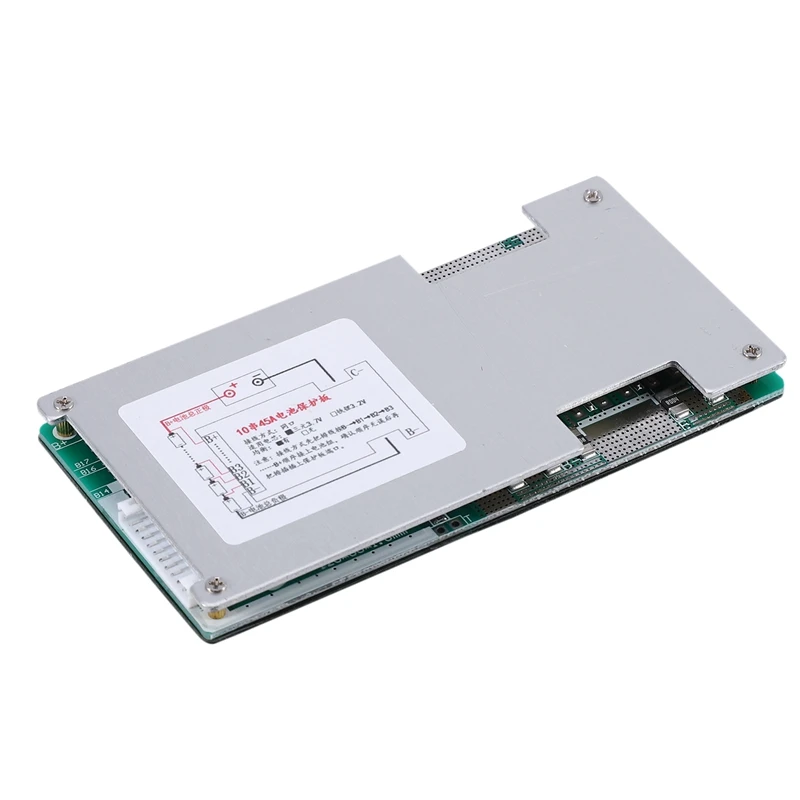

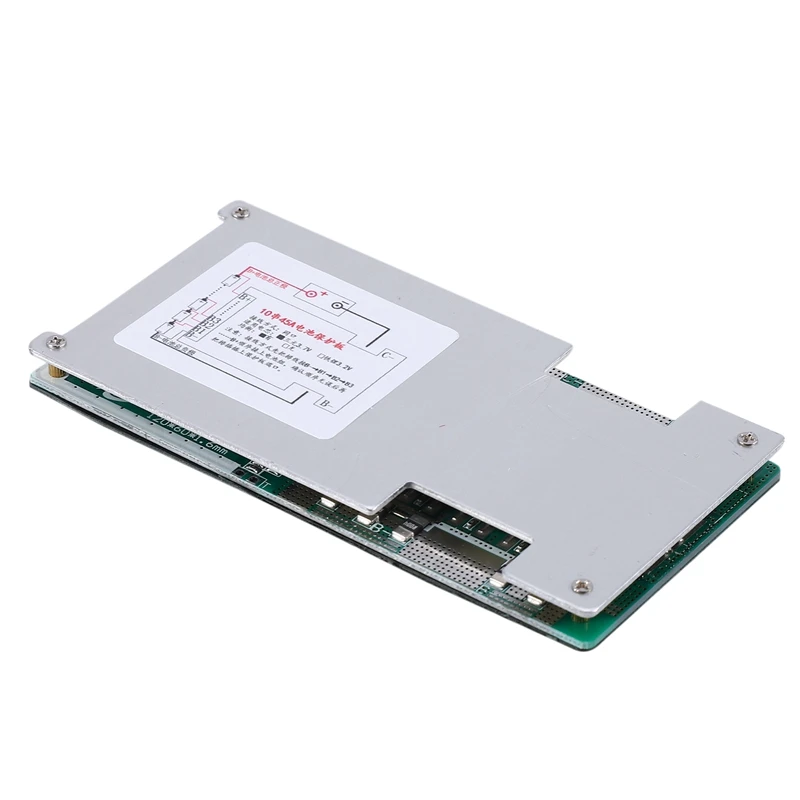

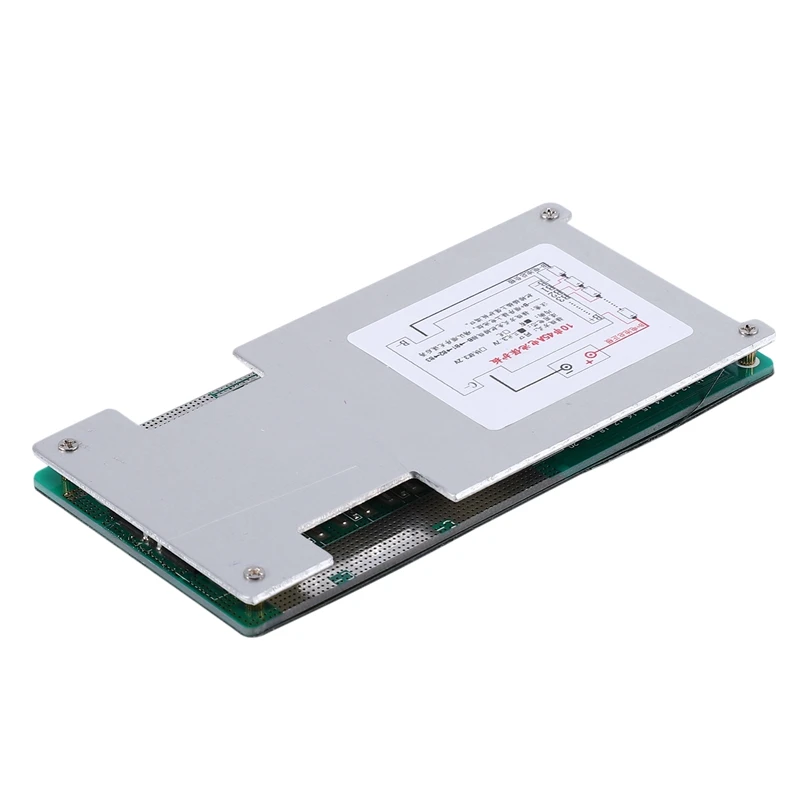

1 * Li-ion Battery Protection Board
1 * Cabel wire
Only the above package content, other products are not included.
