Specification

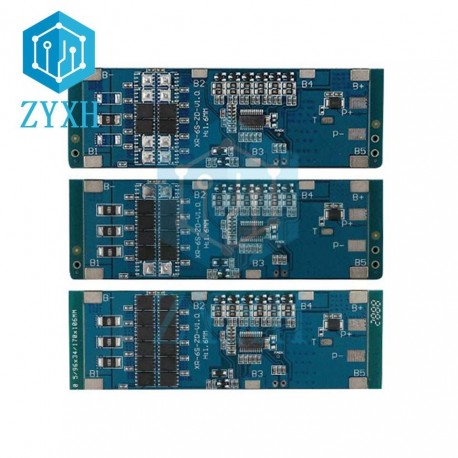

Type: 6S 22.2V
Connection method: Common Port

Discharge

Single battery over-discharge voltage: 2.7V±0.08V
Continuous working current: 10A/20A/30A
Instant protection current: 25A/50A/70A
Overcurrent recovery conditions: charge recovery or disconnect load
Short-circuit recovery conditions: charge recovery or disconnect load

Charge

Single battery overcharge voltage: 4.25V±0.025V
Continuous charging current: 10A/20A/30A
Charge equalization voltage: 4.15V±0.025V
Charge equalization current：40mA
Charger voltage: 30V (recommended)

Charging over temperature protection: 50℃
Discharge over temperature protection: 70℃

Working power consumption: ≤30uA
Main circuit conduction internal resistance: ≤50mΩ
Temperature range: -40 to 80℃
Wire break protection: Yes
Appearance size: 96*34*2.8MM
