Specification

Discharge current: 12A/20A/30A

Main circuit conduction internal resistance: ≤15mΩ

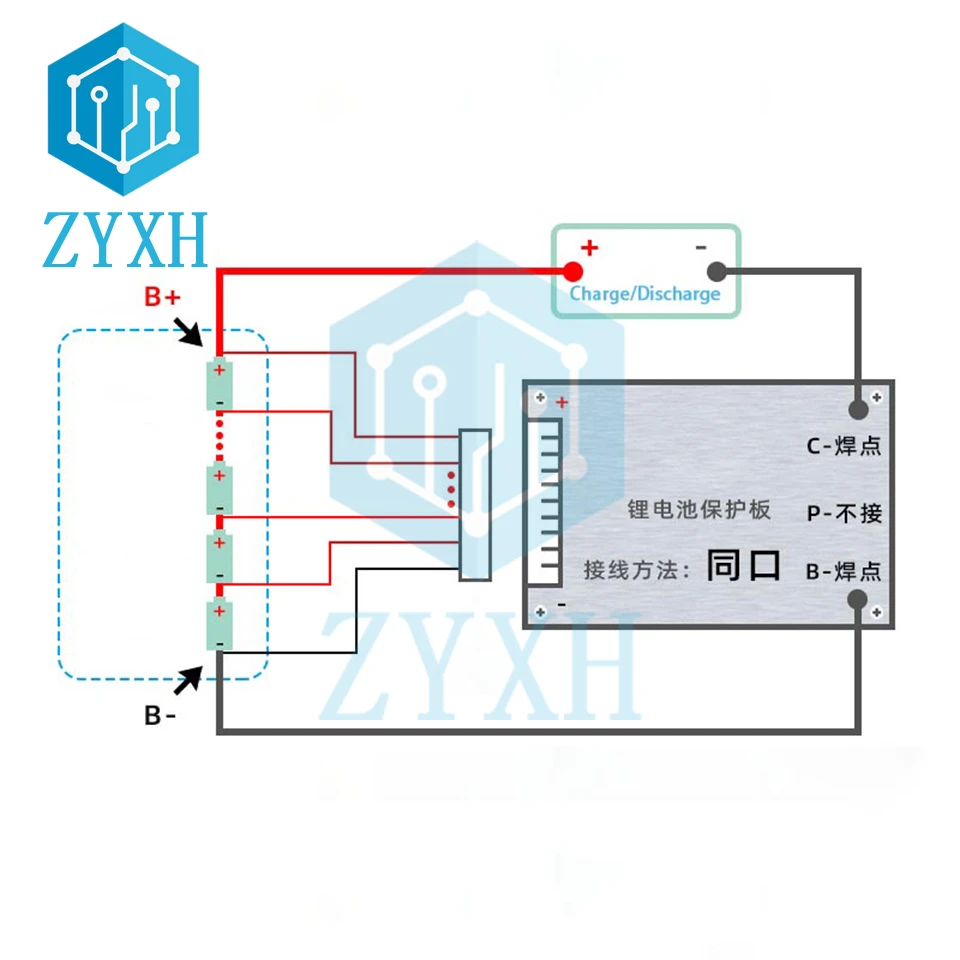

Charging current (same port): ≤6A/10A/15A

Charging voltage: 29.4V

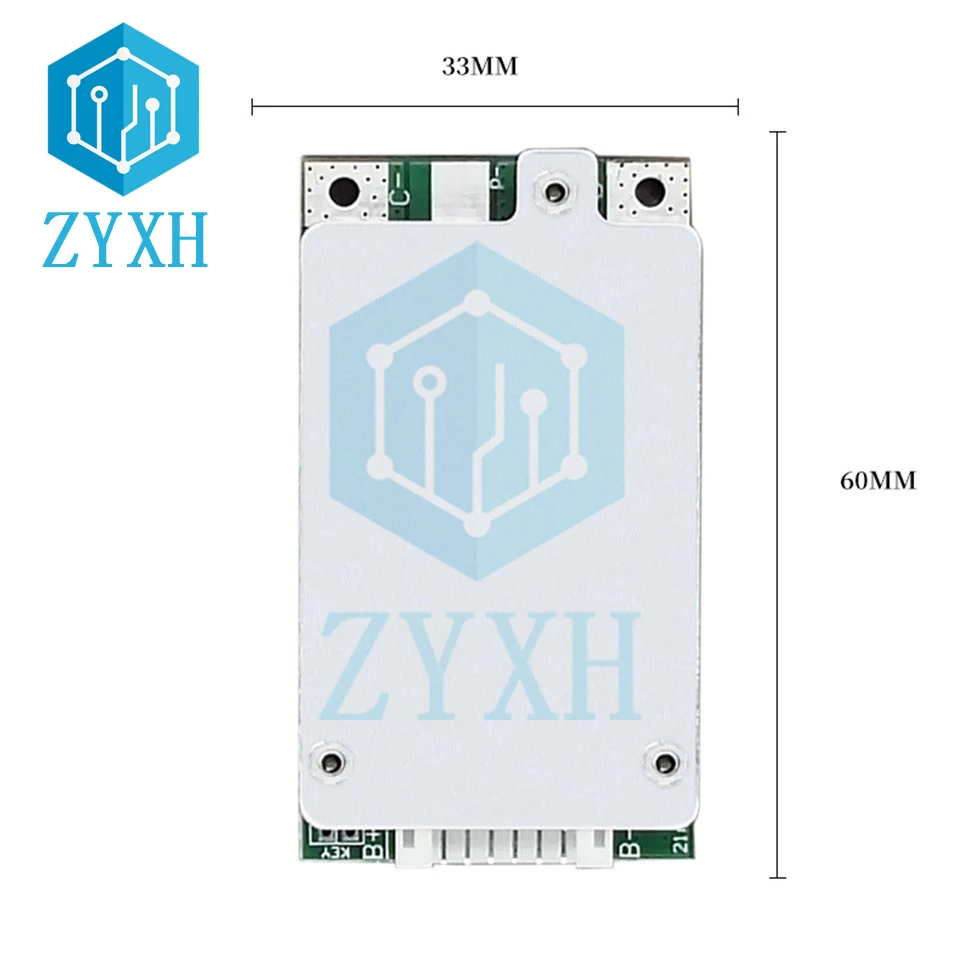

Product size: 60*33*10MM


Overcharge protection:

Detection voltage: 4.25±0.025V

Detection delay: 1000±500MS

Release voltage: 4.15±0.05V


Over-discharge voltage protection:

Detection voltage: 2.7±0.1V

Detection delay: 1000±500MS

Release voltage: 3.0±0.1V


Balanced voltage:

Detection voltage: 4.2±0.025V

Detection delay: 100±50MS

Balance current: 22±3mA


Discharge overcurrent protection:

Detection voltage: 100mV

Detection delay: 1000±500MS

Current protection: 35±5A/55±8A/70±10A


Short circuit protection

Trigger condition: external short circuit

Detection delay: 300US

Release condition: disconnect the load


Self-consumption:

Working power consumption: ≤35UA

Sleep over-discharge power consumption: ≤10UA

Working temperature range: -30/+80℃
