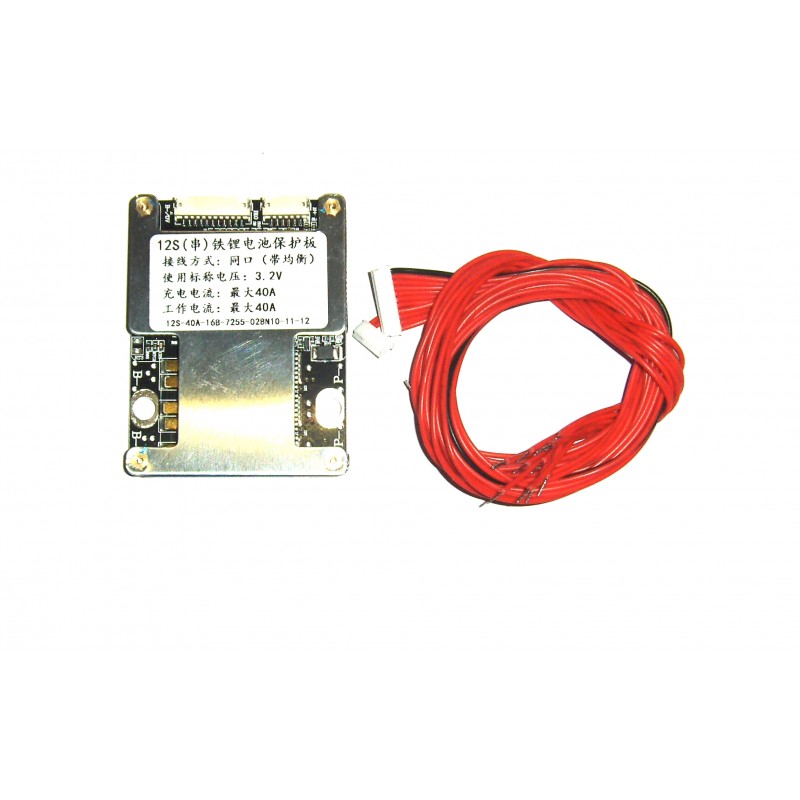

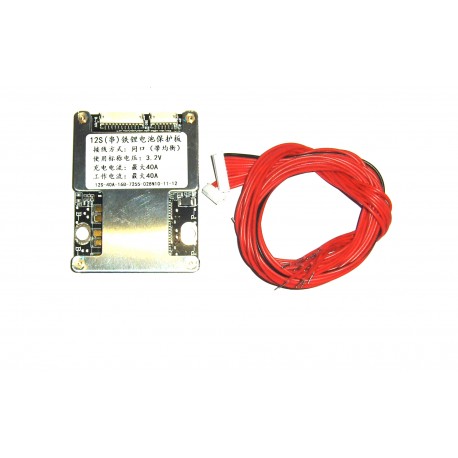

Lifepo4 40A

Model: Lifepo4 40A

Number of series: 12S

DIMENSIONS: 72×55×12MM

Continuous discharge : 40A

Overcharge protection: 3.65V±0.025V

Charge recovery: 3.5V±0.025V

Over-discharge protection: 2.3±0.025V

Discharge recovery: 2.5±0.025V

Balance on: 3.45±0.025V

Charge Current: 40A (according to specifications)

Withstands transient peak current (5 seconds): 120A (depending on specifications)

Application: Nominal 3.2V Lifepo4 iron phosphate battery

Operating temperature: -30/+80°C

Self-consumption: ≤35uA

Scope of product application

It is specially used for lithium battery packs with load power of 24-48V and less than 800W (choose different current specifications to correspond to different load power). Features: Low internal resistance, high withstand voltage and good stability.
