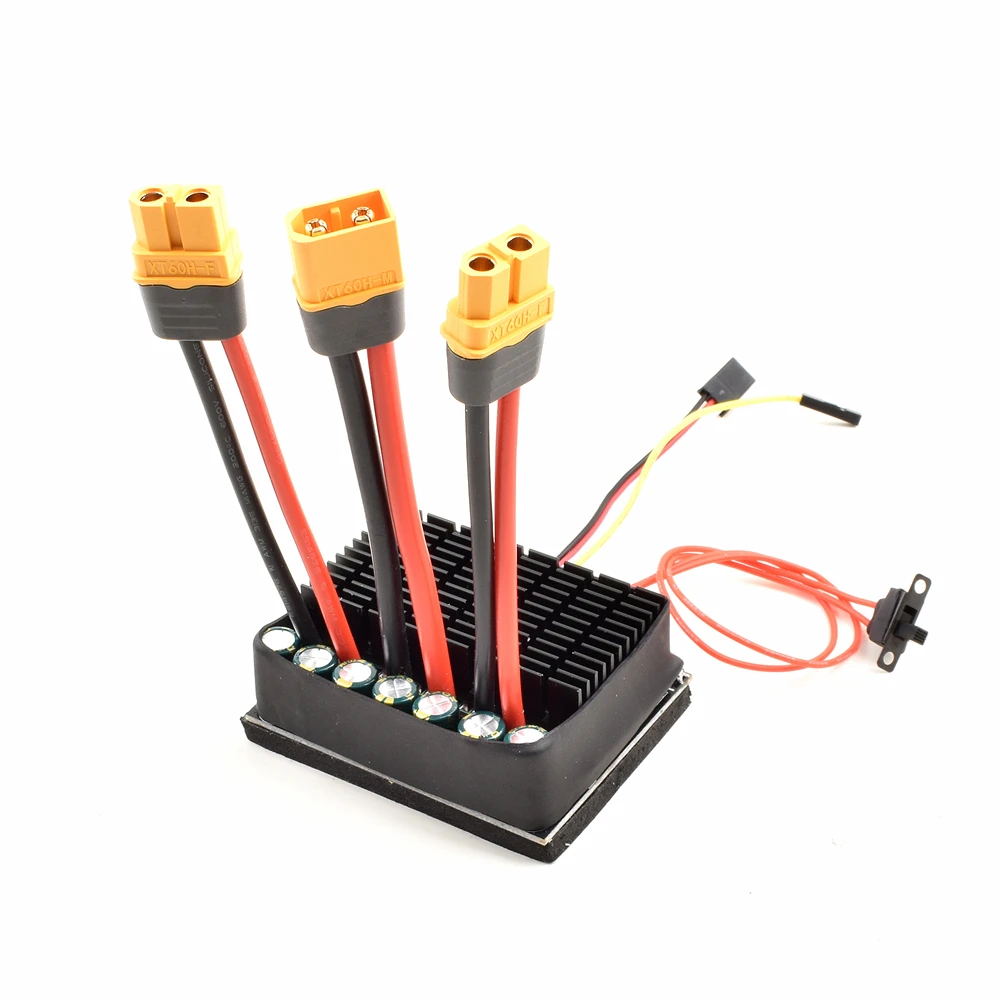

60Ax2 ESC:

Continuous Current: 60A

Peak Current: 480A

power input: 3S-7S（Lipo）

Control signal: PWM

BEC Output:: 5V@ 2A

Weight: 113g

Dimension (L x W x H): 65.5x53x27.5 mm

Mode can be adjusted:  mixed/independent

Applicable motor: 540/550/775/795 high current brush motor

1 Specification

60A Dual Way Bidirectional Brushed ESC

1- Working Voltage: 10v-32v(lithium battery 3s-7s) support 24V battery.

2- Continuous/Peak Current: 120A/480A forward, 120A/480A reverse.

3- Wire: power wire  12AWG-100mm

motor wire: 14AWG-100mm

4- Size: 65.5mm X 53.0mm X 27.5mm

5- Weight: 113g

6- Support Motor: support 24V less than 12000rpm 540/550775/795 brush motor, only used by motor within 12000rpm; connect with only one motor.

2 ) Features

1-Two modes of output:Mixed control mode, Independent control mode

2- Safety Arming Feature:the motor will not rotate until the throttle lever is unlocked at the midpoint.

3-Over-heat protection:When the temperature of the ESC is over 130 Celsius degree, the ESC will gradually reduce the output power.

4- Throttle signal loss protection:The ESC will gradually reduce the output power if the throttle signal is lost for 1 second,

further loss of signal for 1 second will cut-off  the power.
