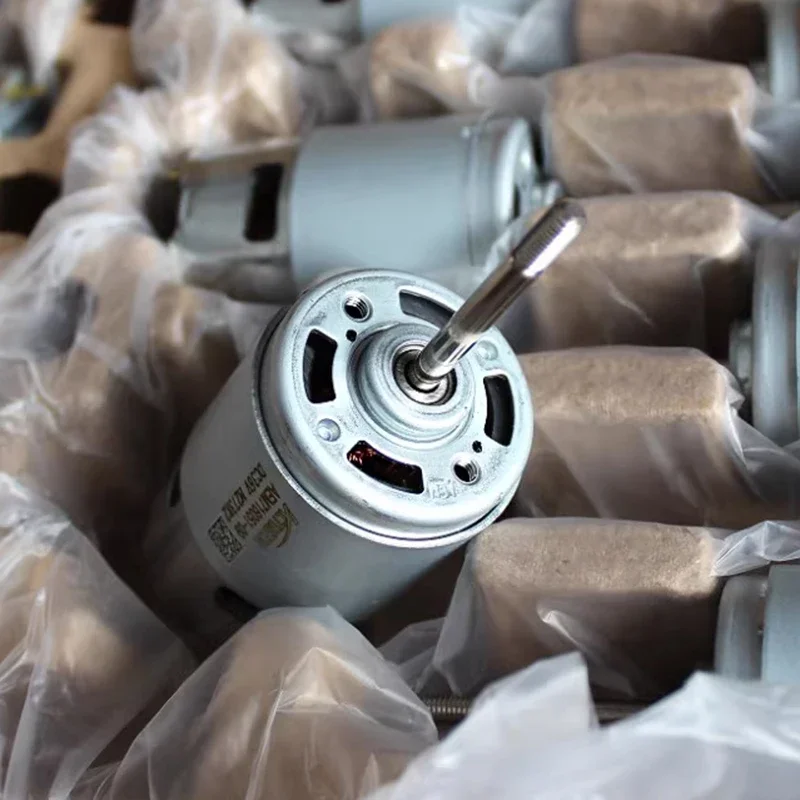

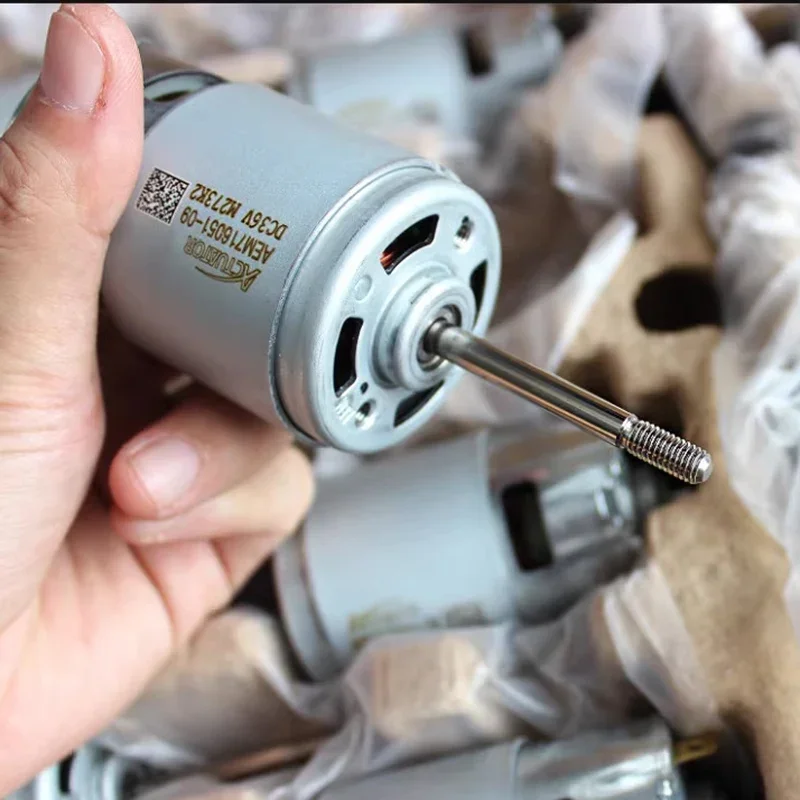

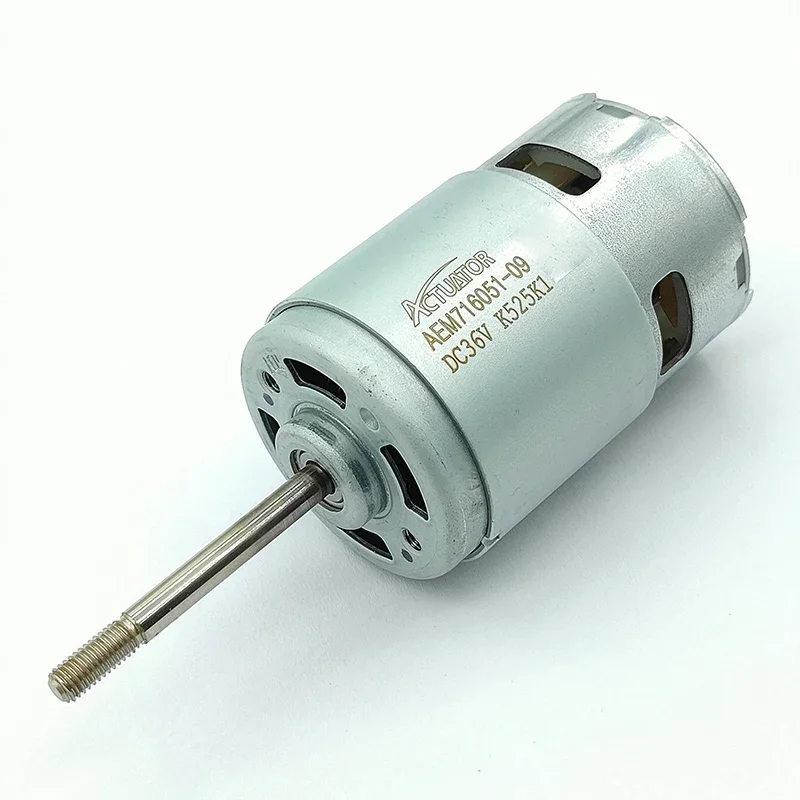

Specification:

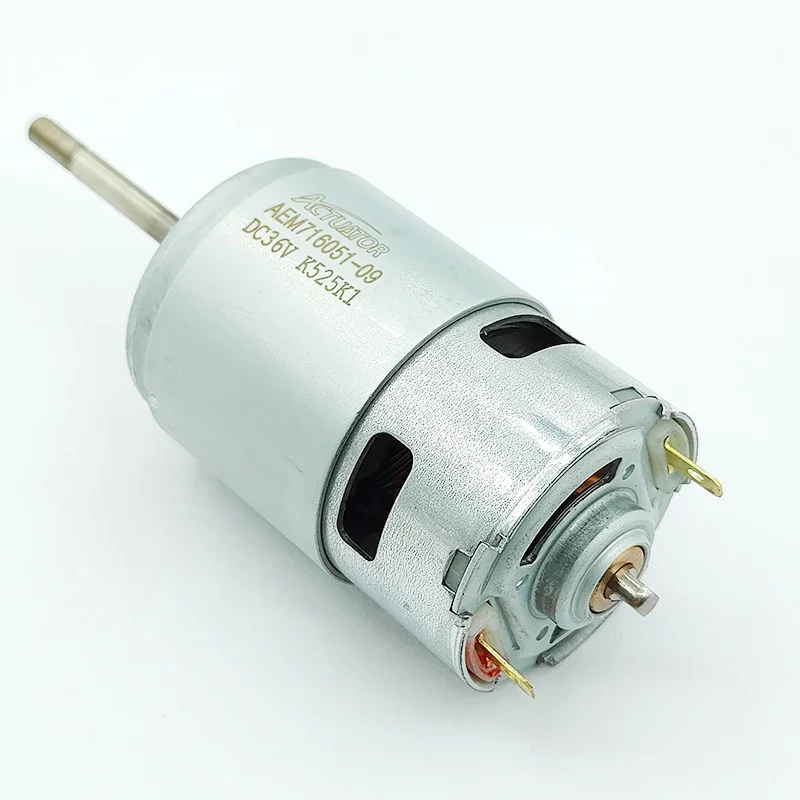

1.Brand: ACTUATOR MOTOR

2.Model number: AEM716051-09

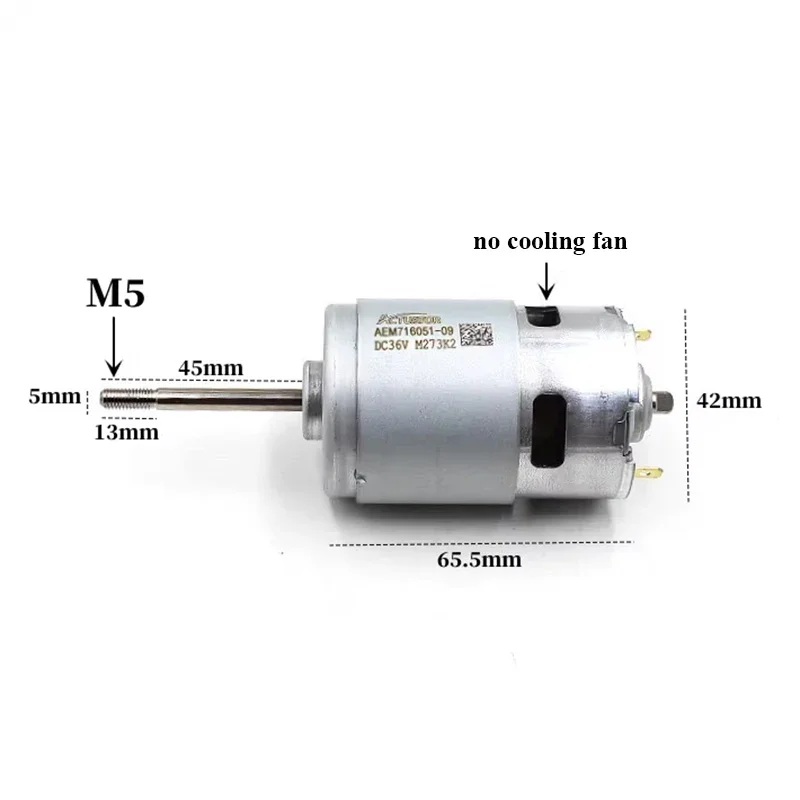

3.Motor diameter: 42mm (with cover 44.5mm)

4.Motor height: 65.5mm

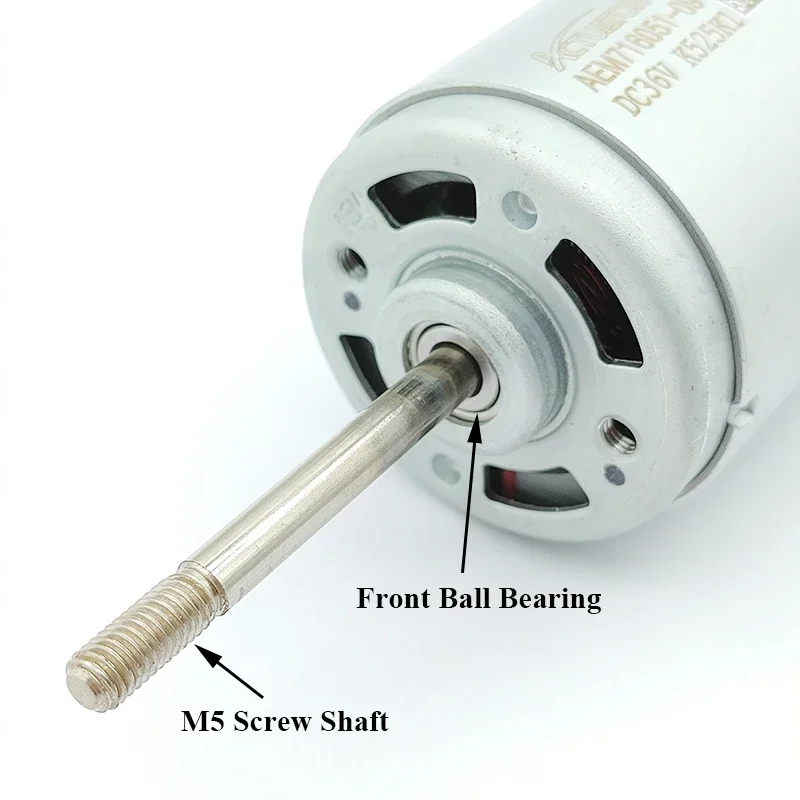

5.Output shaft diameter: round shaft 5mm; end shaft M5 screw shaft

6.Output shaft length: 45mm (not include step height)

7.Weight: 355g

8.Suitable voltage: DC 12V-36V

9.Test data:

   Voltage:12V   Current:0.68A   No-load speed:6800RPM

   Voltage:18V   Current:0.70A   No-load speed:10000RPM

   Voltage:24V   Current:0.80A   No-load speed:14000RPM

   Voltage:36V   Current:0.95A   No-load speed:20000RPM

=====================================================================================

Package List:

Motor x 1PCS
