(SKU): 484560/P0A1826418

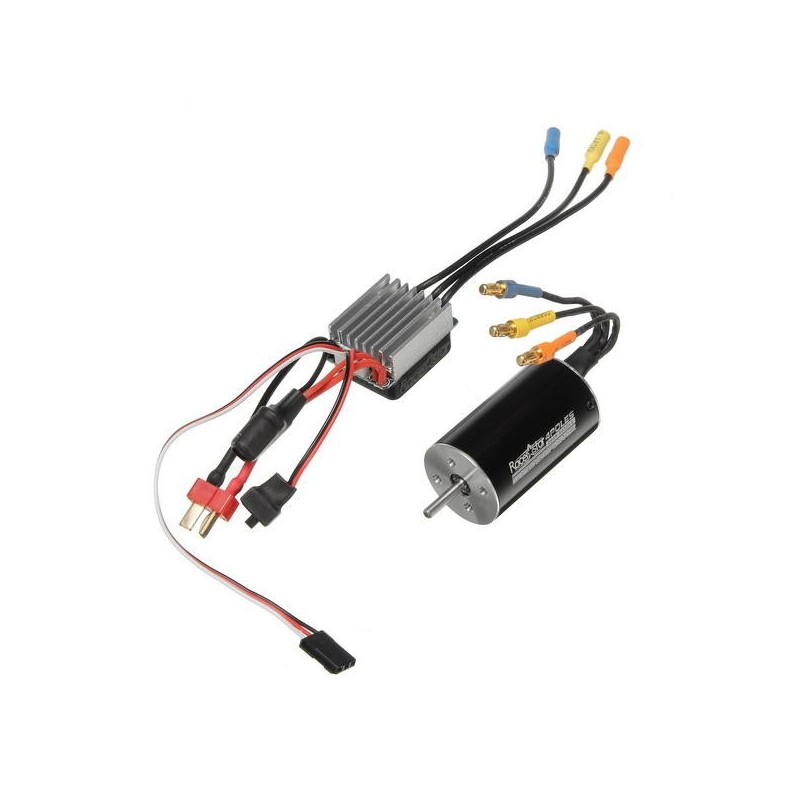

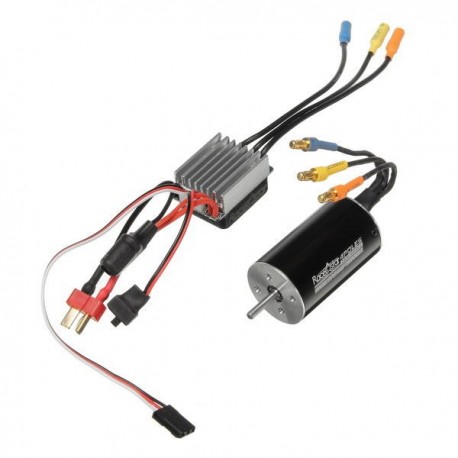

Racerstar 2845 Motor Brushless Waterproof Sensorless 35A ESC Combo 1/12 1/14 RC Car Parts - 3900KV
Διαθέσιμο
Description:
Brand: Racerstar
Item: 2845 Motor + 35A ESC
Waterproof Level: Splash-proof
Motor Features:
- 4 pole 12 slot hi-torque motor design
- CNC machined 6061 T6 billet aluminum heatsink can
- High purity copper windings maximizes efficiency
- High RPM ABEC 5 oversized bearings
- Universal fit, fits all 1/12, 1/16, 1/18 brushless cars; multi-mounting system for M2.5 screws
- Precision balanced rotor, smoothness for best reliability and maxium RPM
Motor Specification:
Product | Watts | Max Voltage | Max Amps | Rotor Poles | IO | Resistance | KV (RPM/Volt) | Max RPM | Length | Diameters | Weight (g) | Shaft (mm) | Length of Extend Shaft | Connector |
2845 Motor | 800 | 13V | 60A | 4 | 2.4A | 0.0196 | 3900 | 50000 | 47mm | 28mm | 125 | ¢3.175 | 15mm | 3.5mm gold |
2845 Motor | 800 | 17V | 47A | 4 | 1.9A | 0.0285 | 3100 | 50000 | 47mm | 28mm | 125 | ¢3.175 | 15mm | 3.5mm gold |
ESC Features:
- Specially desighed for RC car with excellent start-up, acceleration and linearity feartures
- Compatible with sensorless brushless motor
- The strong resistant current capability, excellent heat dissipation
- Multiple protection features: low voltage cut-off protection for lithium or nickel battery / over-heat protection / throtttle signal loss protection / motor blocked protection
- Easily programmed and compatible with pocket-sized program card
ESC Specifications:
Model | 35A |
Cont. Current/Burst Current | 35A/120A |
Motor Type | Sensorless Brushless Motor |
Suitable Car | 1/18, 1/16, 1/14 |
Suitable Brushless Motor | ≥12T |
Resistance | 0.003ohm |
Battery | 2-3 cells Lipo 4-9 cells NiMH |
BEC Output | 5V/2A (analog mode) |
Dimension | 25*30*18.5mm |
Package Included:
1 X Motor
1 X ESC
2 X Instructions
