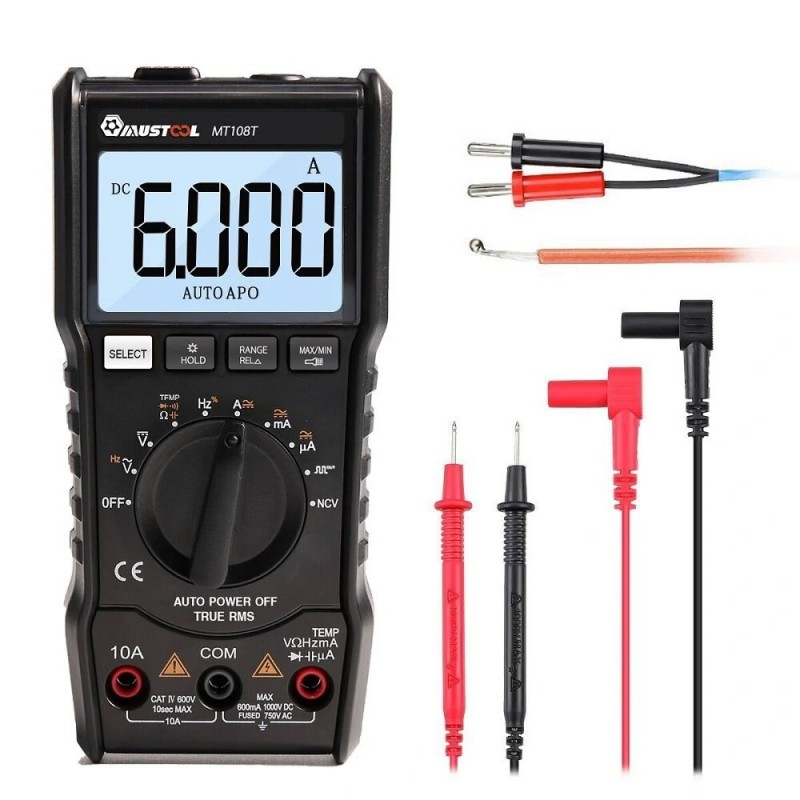

MUSTOOL MT108T Square Wave Output True RMS NCV Temperature Tester Digital Multimeter Μεγαλύτερη προβολή

MUSTOOL MT108T Square Wave Output True RMS NCV Temperature Tester Digital Multimeter

(SKU): 960044

MUSTOOL MT108T Square Wave Output True RMS NCV Temperature Tester Digital Multimeter

Περισσότερες λεπτομέρειες

Διαθέσιμο

40,00 € με Φ.Π.Α

Άλλες πληροφορίες

Description :

The MUSTOOL MT108T is a pocket-sized 6000 counts automatic digital instrument.
It's a stable performance, high p'recision, high reliability clear readings, and overload protection.
With a large-screen LCD display, boost power supply, even in the 2.3V low battery edge, it can guarantee the backlight high brightness, the table is easy to carry, is a vast number of users extremely like the instrument, the backlight can be bright can be automatically turned off after 15 seconds.It's an ideal tool for the laboratory, factory, radio enthusiasts and families.

Features :

50Hz-5000Hz Square Wave output.
Auto P'ower-off.
Auto Range (User can choose manual operation)
HD LCD screen display with backlight .
(Tips: Press and hold the backlight key for 2 seconds to turn on the 15S auto off function; press for 3 seconds, the backlight remains on.)
Diode 4.2V high voltage output, easy to light the LCD.
10A large current measurement, UA level small current measurement
Main measurement: AC/DC voltage, AC/DC current, resistance, capacitance, diode, frequency, duty cycle, continuity, buzzer

SPECIAL FUNCTIONS: [Square wave output, NCV(Non contact voltage), temperature measurement, flashlight, True RMS measurement. ]

Specification :

Symbol functions
DC voltage  DCV▲Yes
AC voltage ACV▲Yes
DC current DCA▲Yes
AC current ACA▲Yes
ResistanceDiode On-off▲Yes
Frequency F▲Yes
Capacitance C▲Yes
NCV▲Yes
Wave Output▲Yes
Full unit symbol▲Yes
Backlight manual/auto off▲Yes
True RMS measurement▲Yes

DC voltage (DCV)
RangeAccuracyResolution
6V  ± (0.5%+3)0.001V
60V0.01V
600V0.1V
1000V  ± (0.8%+10)1V

AC voltage(DCV)
RangeAccuracy  Resolution
6V  ± (0.8%+3)0.001V
60V0.01V
600V0.1V
750V  ± (1.2%+10)1V

DC Current (DC mA)
RangeAccuracyResolution
60mA  ± (1.2%+10)10uA
600mA100uA

DC Current (DC uA)
RangeAccuracyResolution
600uA  ± (1.2%+10)0.1uA
6000uA1uA

AC Current (AC mA)
RangeAccuracyResolution
60mA  ± (1.2%+10)10uA
600mA100uA

AC Current (AC uA)
Range AccuracyResolution
600uA  ± (1.2%+10)0.1uA
6000uA1uA

DC/AC 10A Current (DC/ACA)
RangeAccuracyResolution
  6A  ± (2.0%+30)0.01A
  10A0.01A

Resistance (Ω)
RangeAccuracyResolution
 600Ω± (0.8%+5)0.1Ω
6kΩ± (0.8%+3)1Ω
60kΩ10Ω
600kΩ100Ω
6MΩ1kΩ
40MΩ± (2.5%+3)10kΩ

Capacitance(C)
RangeAccuracyResolution
60nF± (3.5%+20)10pF
600nF100pF
6uF1nF
60uF10nF
600uF100nF
6mF± (5%+3)11uF
30mF10uF

Frequency measurement:
RangeAccuracy  Resolution
10Hz± (0.1%+3)0.01Hz
100Hz0.1Hz
1kHz1Hz
10kHZ10Hz
100kHz100Hz
1MHz1kHz
20MHz10kHz

Temperature measurement (°C/°F)
RangeAccuracyResolution
(-20-1000 )℃± (1.0%+5) <400℃
± (1.5%+15)≥400℃		1℃
(0-1832 )℉± (0.75%+5) <750℉
± (1.5%+15)≥750℉		1℉

Square Wave Output: 50Hz/100Hz/200Hz/300Hz/400Hz/500Hz/600Hz/700Hz/800Hz/ 900Hz/1000Hz/2000HZ/4000HZ/5000HZ
Duty Cycle:  range: 1%~99%;resolution: 0.1%; accuracy: ±(0.1%+2)
Diode: √(DC forward current is 5mA, voltage is 3V)
Continuity: √(no more than 50Ω)
Maximum display: 6000 (3 5/6) bits automatic polarity display
Measurement: double integral A / D conversion
Sampling rate: about 3 times per second
Overrange display: the most significant bit was "0L"
Low voltage display: symbol appears
Working environment: (0 to 40)℃, relative humidity <80%
Power supply: AAA 1.5V battery (Not included)
Volume (size): 142×70×32mm(L×W×H)
Weight: about 200g


Good News!

The Newest Oscilloscope Multimeter Of MUSTOOL MT8027 will be preorder at the end of June!
A Fully Oscilloscope witth 200MHz Sampling Rate 40MHz Bandwidth + True RMS 6000 counts dispaly digital Multimeter !!!

>>More Details Please Click Here<<<
Upgraded MUSTOOL MT8206 2 in 1 Intelligent Digital Oscilloscope Multimeter AC/DC Current Voltage Resistance Frequency Diode Tester with Analog Bar Graph

Package includeds :

1 x MUSTOOL MT108T True RMS Multimeter
2 x Test Lead Set
1 x Temperature Sensing Cable
1 x English User Manual

Details pictures :
