Functions

Range

Accuracy

DC Voltage

99.99mV/999.9mV; 9.999V/99.9V/1000V

±(0.5%+3)

AC Voltage

99.9mV/999.9/mV; 9.999V/99.9V/750V

±(0.8%+3)

DC Current

9.999mA/99.99mA/999.9mA

±(0.8%+3)

9.99A

±(1.2%+3)

AC Current

9.999mA/99.99mA/999.9mA

±(1.0%+3)

9.99A

±(1.5%+3)

Resistance

999.9ohm/9.999k/99.99k/999.9kohm

±(1.0%+5)

9.999m/99.99mOhm

±(2.0%+10)

Capacitance

9.999/99.99/999.9nF/9.999/99.99/999.9uF

±(4.0%+3)

9.999mF/99.99mF

±(5.0%+5)

Frequency

99.99/999.9/9.999k/99.99k/999.9kHz/9.999mHz

±(1.0%+3)

Duty

01.%-99.99%

±(1.0%+2)

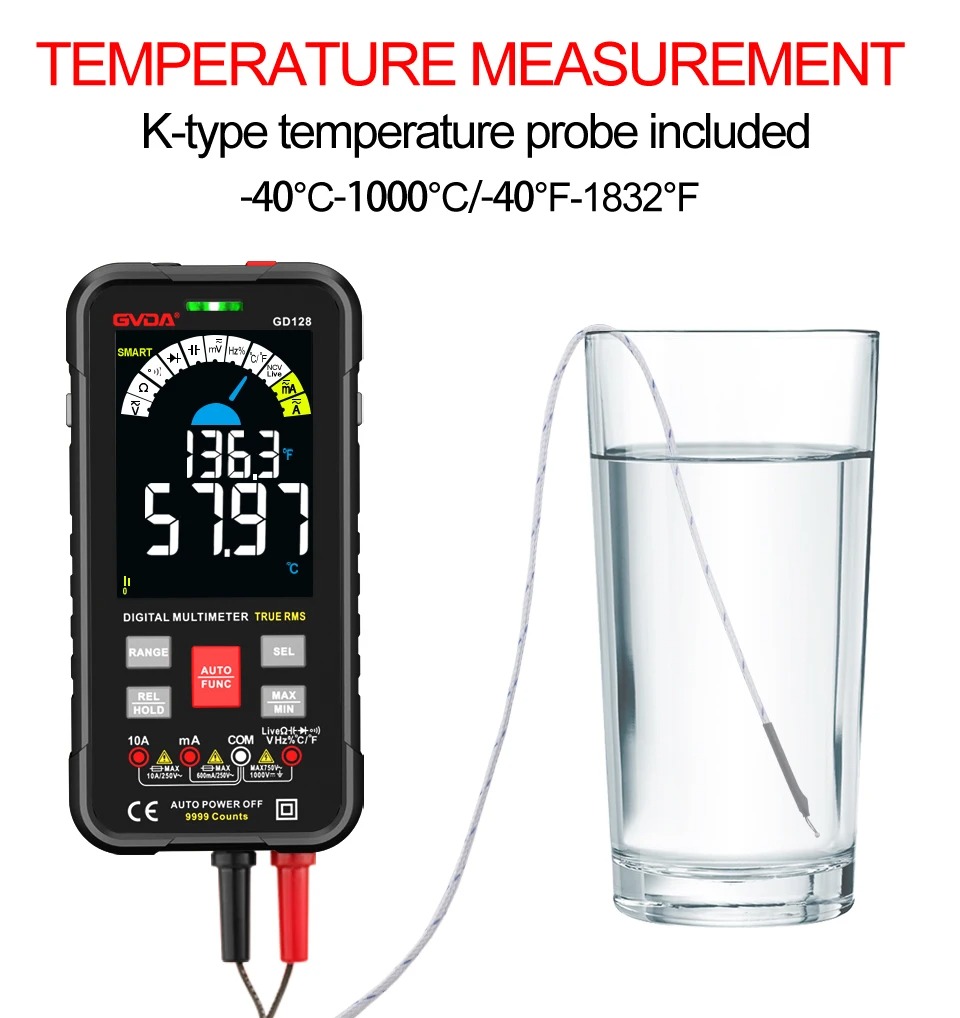

Temerature °C/°F

-40~1000°C; -40-1832°F 2°C

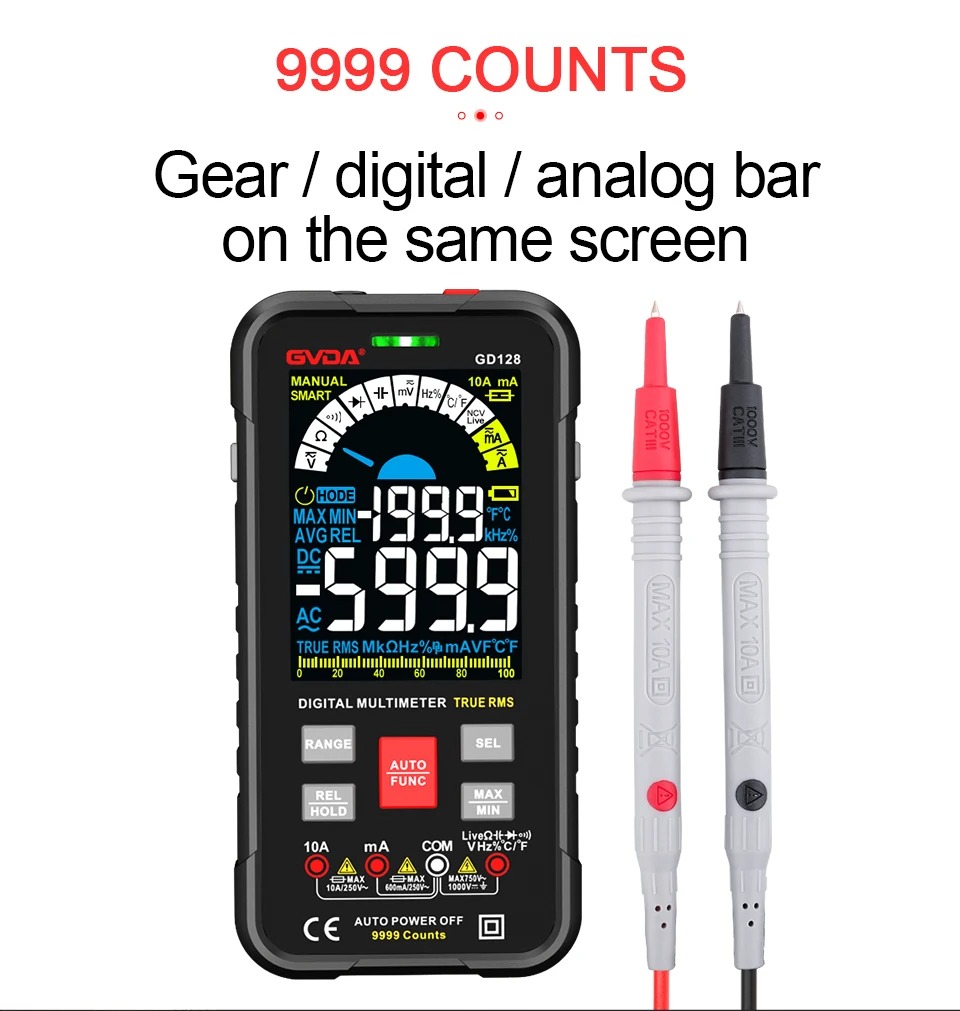

Counts

9999 counts

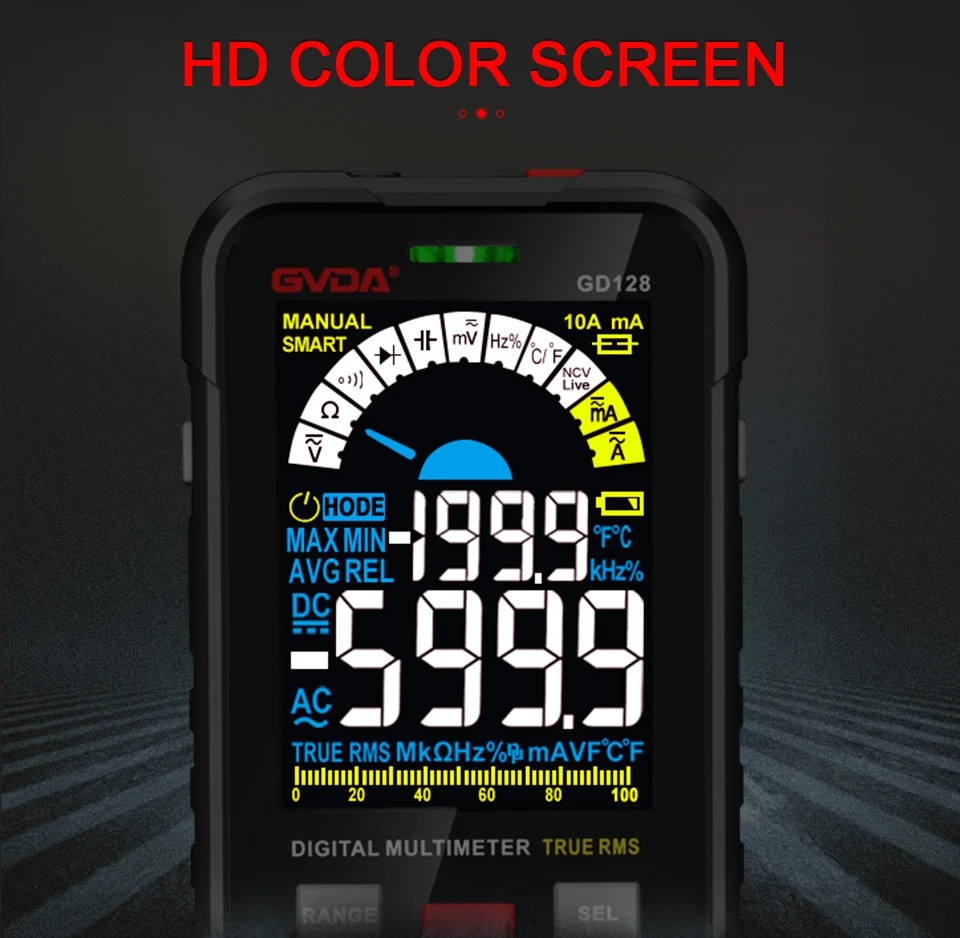

Display

VA Colour Display Screen

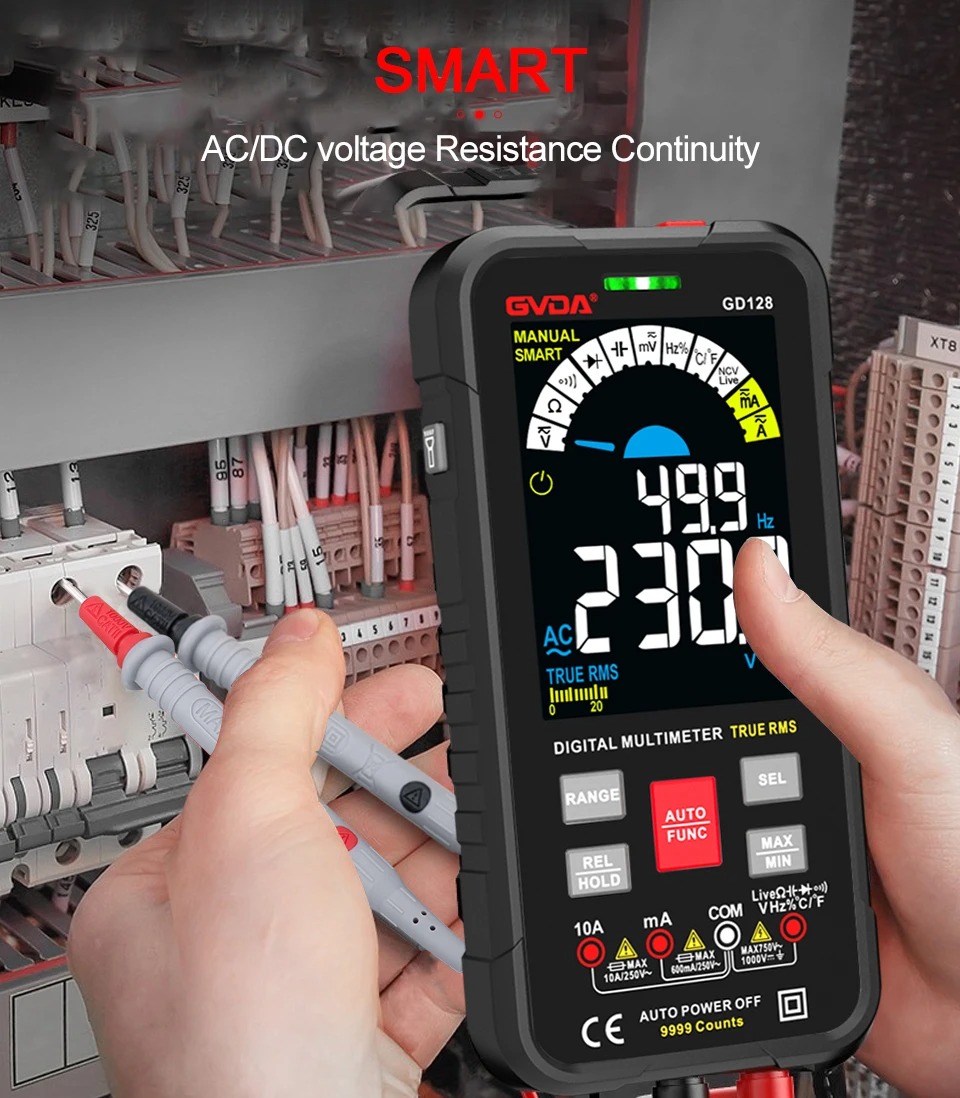

Smart Function(AC/DC Voltage,

resistance and continuity)

V

Auto Identification of current input

V

Relative Measurement

V

Max/Min

V

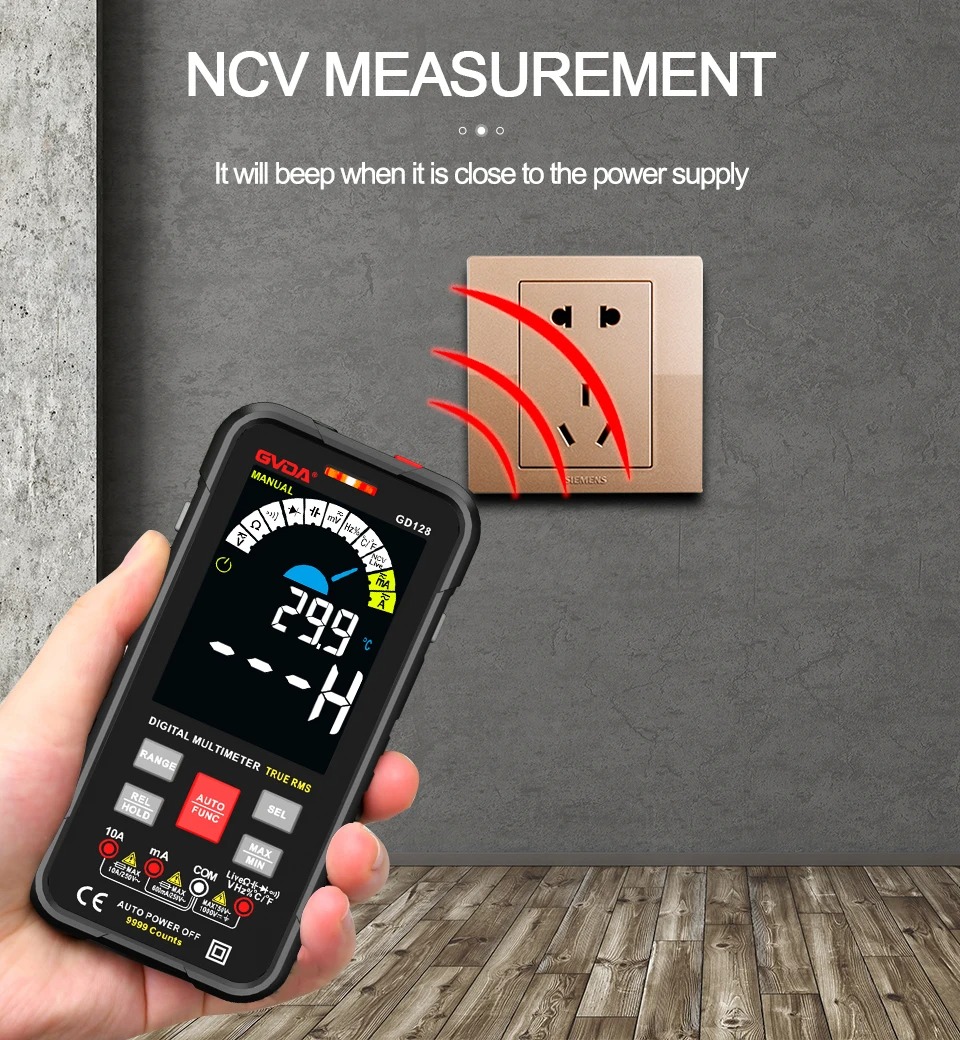

NCV/Live/Continuity test

V (sound and light alarm)

Diode test

V (sound alarm)

Bargraph/Data hold /True RMS

V

Fuse Burning Prompt /

V

Input Jack LED indication

V

Low batery indication

V

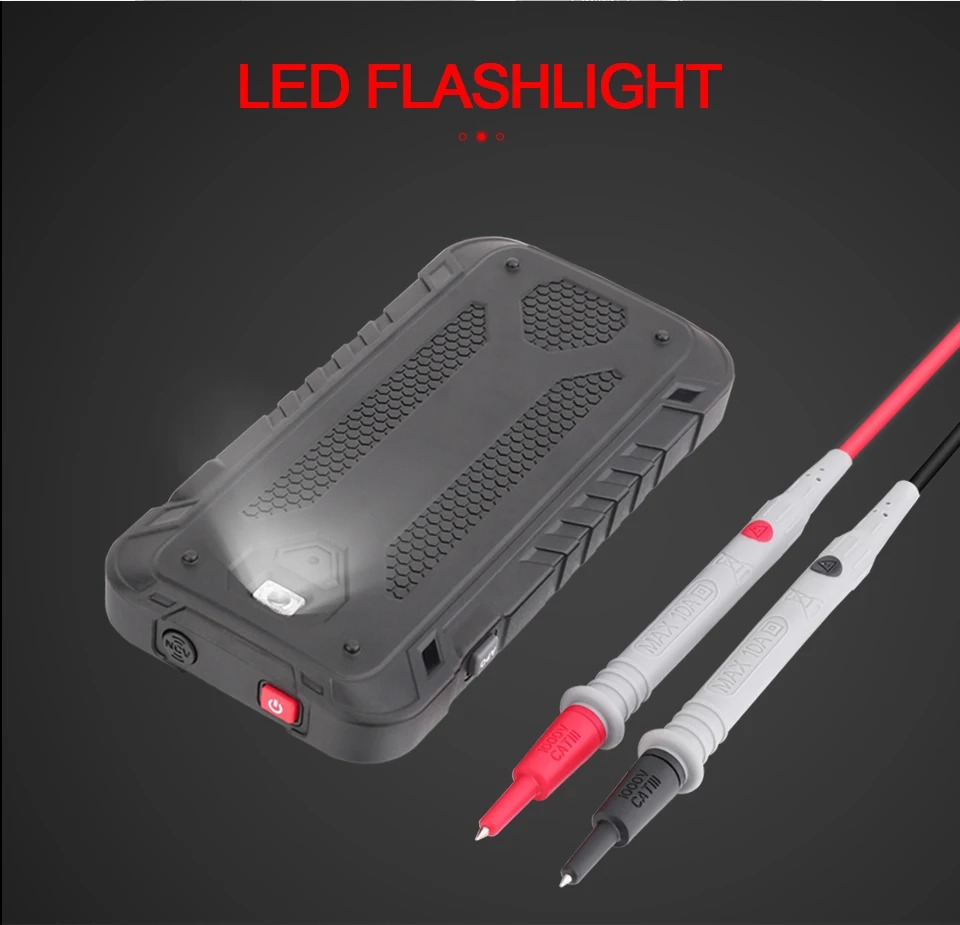

Auto power off / Flashlights

V

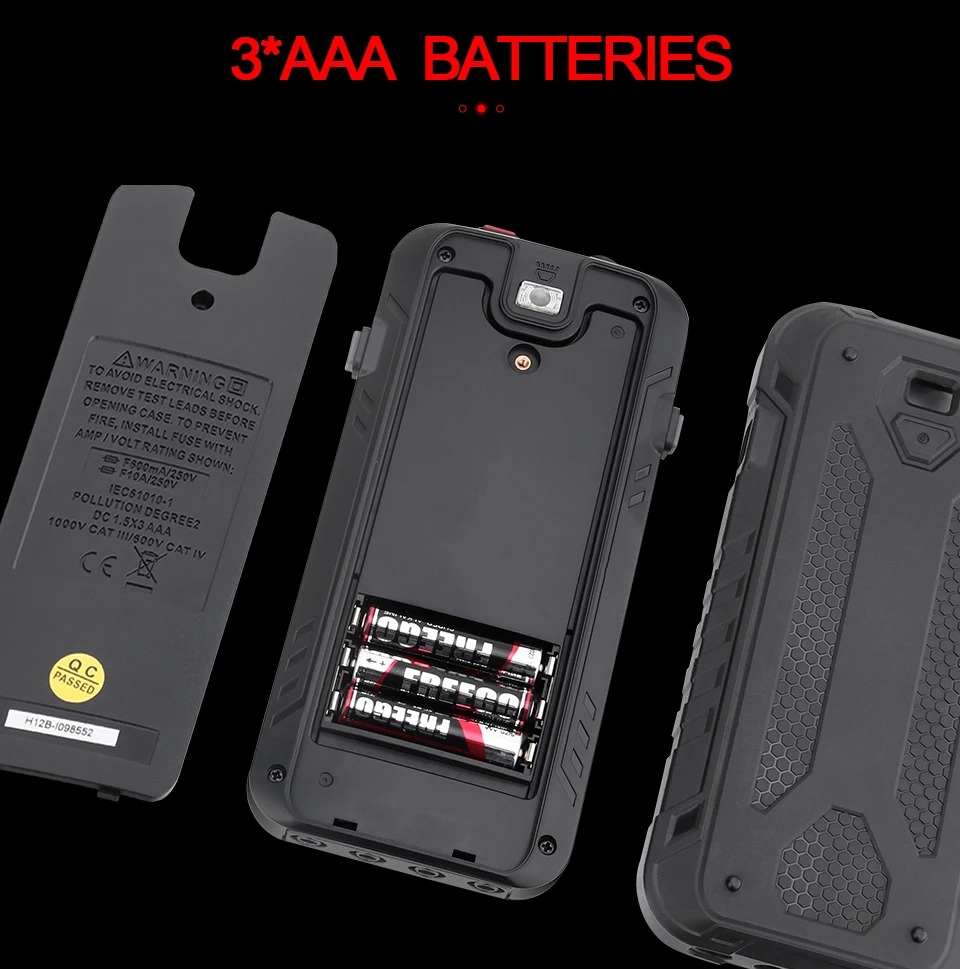

Power supply

3pcs AAA Batteries (not include)

Product Weight

Approx.230g

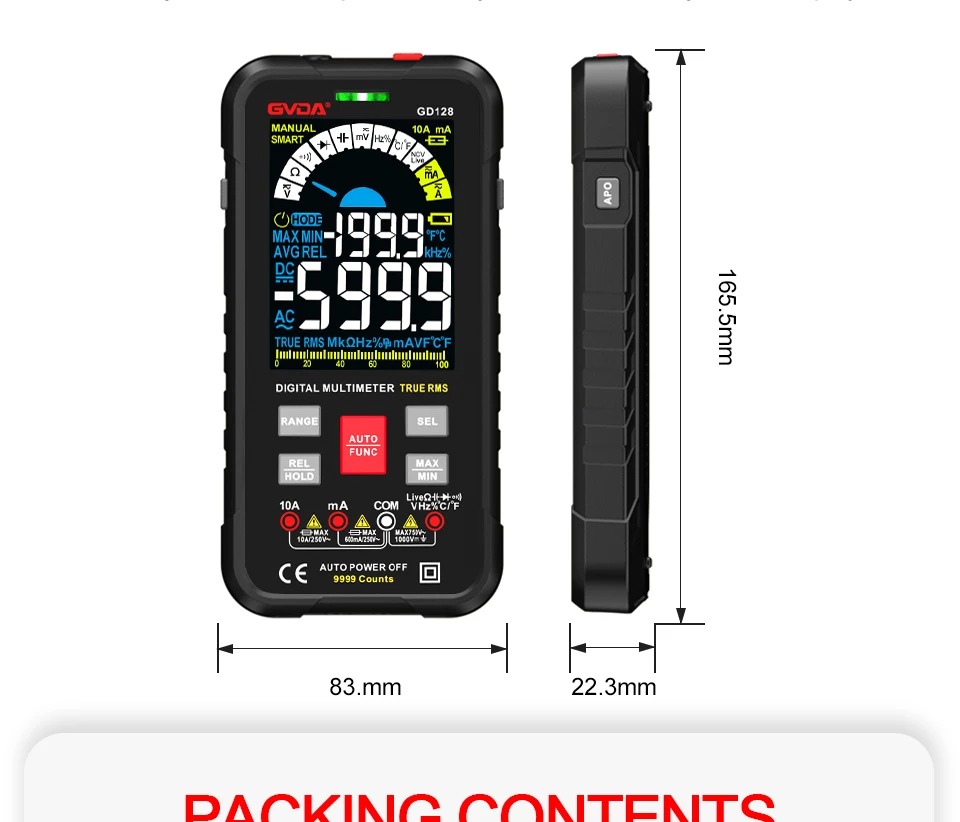

Product Size

83x23x165mm

Package Size

170x95x50mm

Package Weight

470g

Safety rating

EN61010-1,-2-030 EN61010-2-033, EN61326-1 CAT III 1000V CAT IV 600V

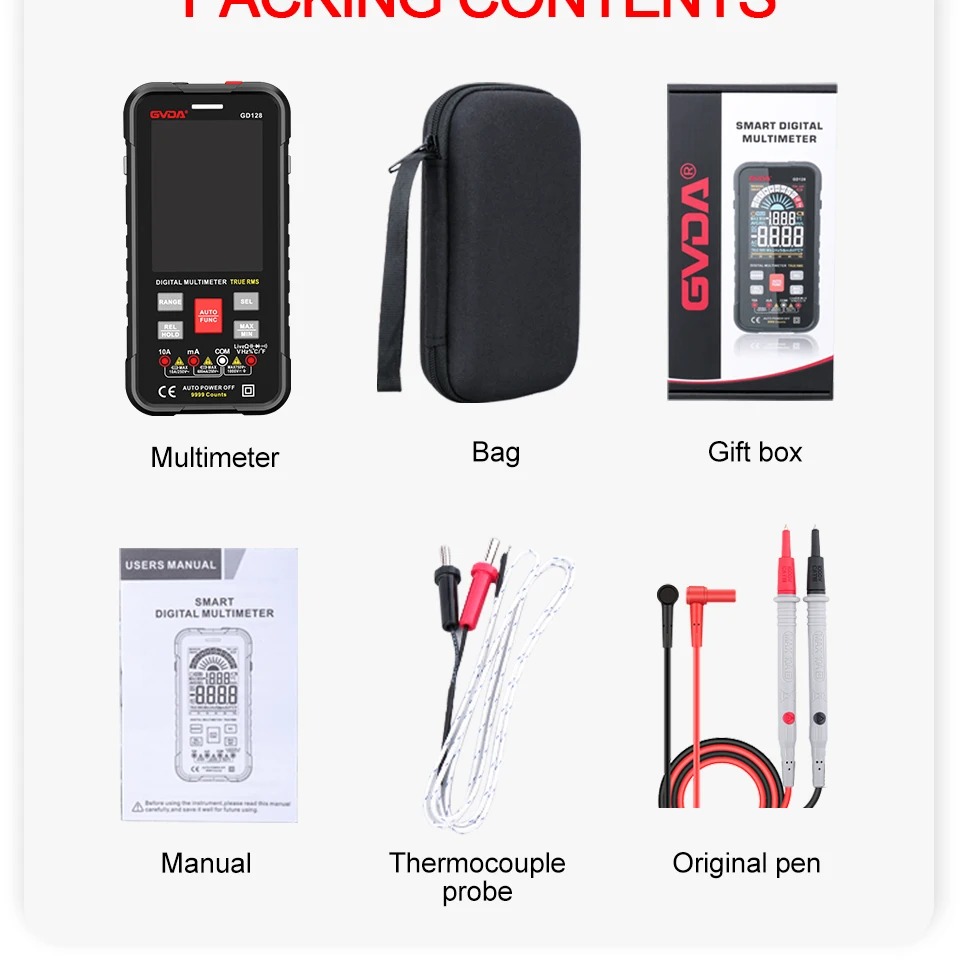

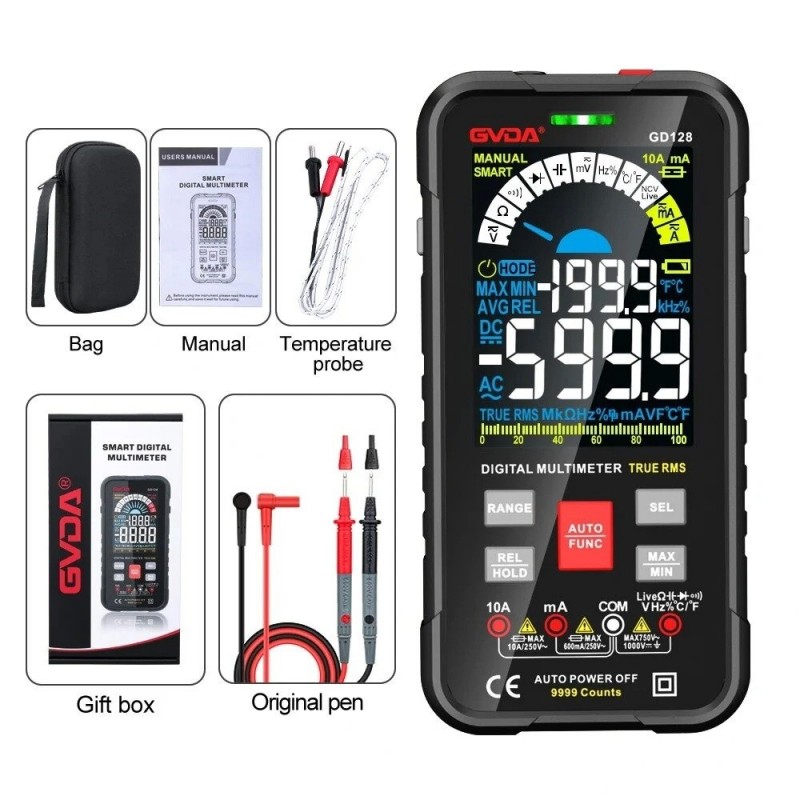

Packing Contents

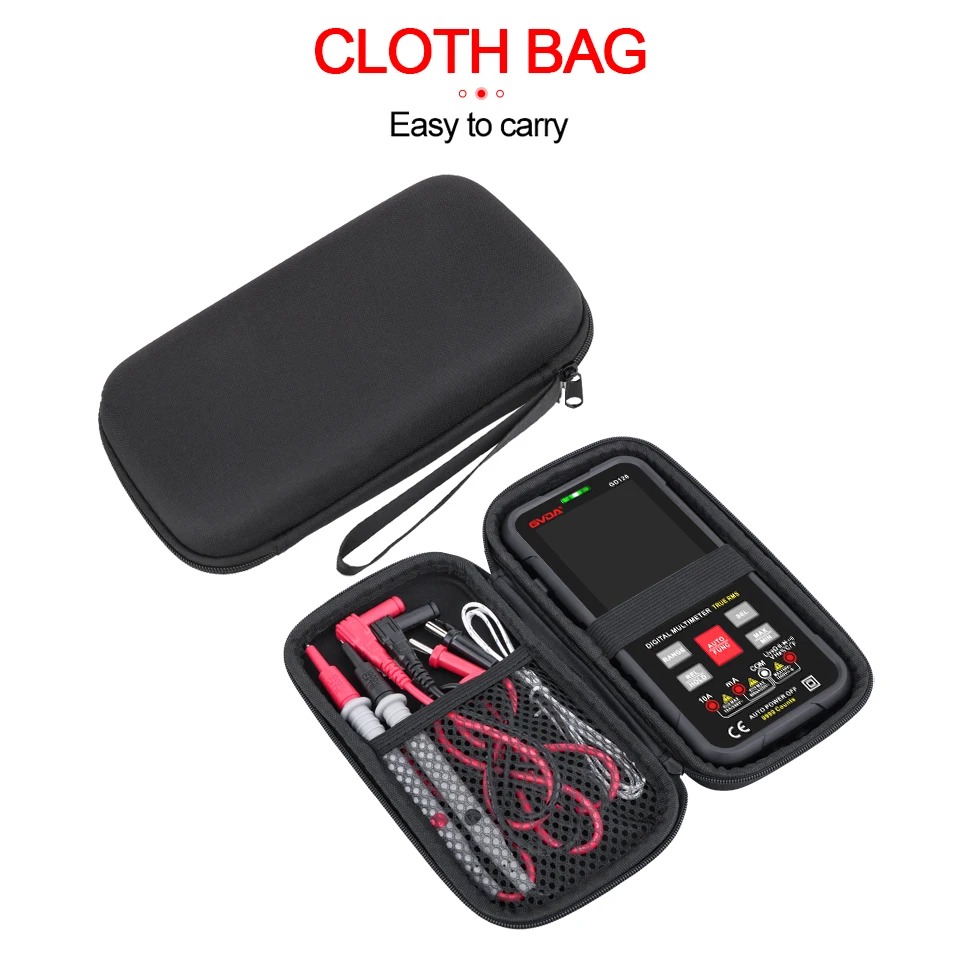

1pc Multimeter / 1pc pen cable / 1pc cloth bag/ 1pc Thermocouple probe
