Features:

- Oscilloscope + Multimeter + Signal-Generator function 3 in 1.

- It has 2.4 inches color screen, wonderful display effect !

- We upgraded the bandwith to 12MHz with 50Msps Sampling Rate

- High Storage Capacity With a storage capacity for 100 sets of multimeter data and 10 waveforms,this device ensures you don't lose important data points. By simply pressing the "SAVE" key, your current waveform is securely stored.

-Powered by a lithium battery(run 6H on a single charge), It includes a low battery reminder, and automatic shutdown to preserve battery life when not in use.

Specifications:

Display: 320*240 color LCM, white backlight

Battery: Lithium, low battery reminder

Usage Time: Approx. 6 hours

Usage Environment: 0℃~+40C, <75%RH

Dimensions: 153mm75mm30mm

Analog Bandwidth: ACV/DCV ≤ 12MHz

Signal Source Output: Square wave, triangular wave, sine wave

Observation Area: 2.4 inches

Input Resistance: 10MΩ

Power Consumption: About 250mA

Storage Capacity: 100 sets of DMM data+10 waveforms

Storage Conditions: -10° C~+60° C,<90% RH

NOTE: Battery included!!!

Package Included:

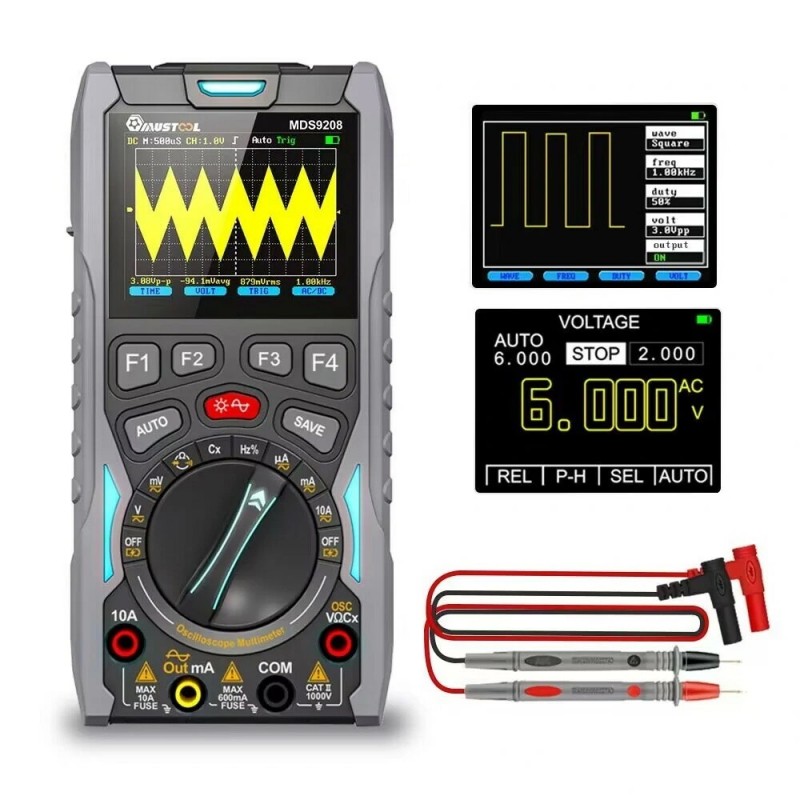

1 x 3-in-1 Oscilloscope + Multimeter + Signal Generator

1 X Test Probe

1 X USB Cable

1 X Manual

1 x Box
