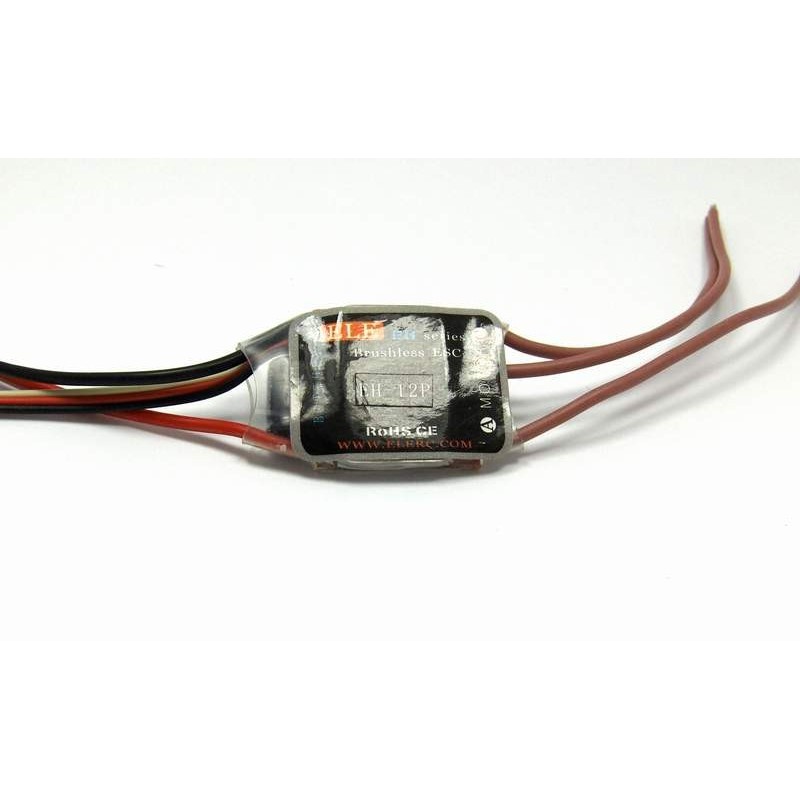

Product Details

1  Specification

1.1 Output: Continues 12A, Burst 15A up to 10 Secs.

1.2 Input Voltage:  2 - 4s Lipo or 5 -12 cells NiCd/NiMH

1.3 BEC (Battery Elimination Circuit) Output: linear mode BEC 1A

1.4 Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: BrushLess Motor)

1.5 Size: 24mm*27mm*6mm(width*length*height)

1.6 Weight:  12g

2  Features

2.1 Safety Arming Feature: Regardless the Throttle Stick position, the motor will not spin after battery connected. This will prevent any injury happened.

2.2 Throttle Calibration: Throttle range can be configured to provide best throttling linearity, fully compatible with all market available transmitters.

2.3 Programmable Items:

?Brake Settings: brake enabled / brake disabled, default is brake disabled

?Battery Type: Li-xx(Li-ion or Li-poly) / Ni-xx(NiMh or Nicd)?default is Li-xx.

?Low Voltage Protection Mode(Cutoff Mode) : power reducing / power cutoff, default is power reducing.

?Low Voltage Protection Threshold(Cutoff Threshold) : low / medium / high, default is medium cutoff voltage.

1)    For Li-xx battery?number of battery cells are judged automatically?low / medium / high cutoff voltage for each cell are:  2.6V/2.85V/3.1V. For example: 3 Cells Li-Poly, when medium cutoff voltage is set, the cutoff voltage is: 2.85*3=8.55V.

2)    For Ni-xx battery, low / medium / high cutoff voltages are 0/45%/60% of the startup voltage. (0% means the low voltage cutoff function is disabled).

?Startup mode: normal / soft / super-soft, default is normal startup.

?Timing: low / medium / high, default is medium timing.

 2.4 Full Protection Features: Low-voltage cutoff protection / over-heat protection / throttle signal lost protection.

3   Advantages

3.1 Military Standard Capacitor with extremely low resistance used on voltage input section, this will increase the ability of prevention of unwanted RF Noise/
