> >>Racing F3 Flight Controller 10DOF Deluxe Version w/ HM-GPMS M8N GPS CF OSD For QAV250 Multirotor

Flight Controller

Κατασκευαστές

Πληροφορίες

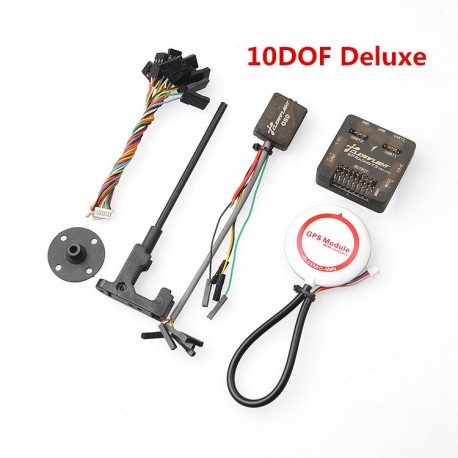

Racing F3 Flight Controller 10DOF Deluxe Version w/ HM-GPMS M8N Μεγαλύτερη προβολή

Racing F3 Flight Controller 10DOF Deluxe Version w/ HM-GPMS M8N GPS CF OSD For QAV250 Multirotor

(SKU): 353180

Racing F3 Flight Controller 10DOF Deluxe Version w/ HM-GPMS M8N GPS CF OSD For QAV250 Multirotor

Περισσότερες λεπτομέρειες

Διαθέσιμο

150,00 € με Φ.Π.Α

Άλλες πληροφορίες

Racing F3 Flight Controller 10DOF Deluxe Version w/ HM-GPMS M8N GPS & CF OSD For QAV250 FPV Multirotor










Racing F3 Deluxe flight controller:

The Racing F3 gives you all the features you need for the heart of your aircraft, whether you're into FPV racing, acrobatic flying or aerial photography it's perfect. Supports a variety of aircraft, tricopters, quadcopters, hexacopters, octocopters, planes and more.
The Racing F3 runs the open-source Cleanflight flight control (FC) software which has an ever-growing community of friendly developers and users. Being open-source means that you too can contribute to the system.
Cleanflight comes with a detailed manual that is reviewed and maintained by the Cleanflight developers and community. No more out-of-date wiki pages and second-hand information.

The hardware was designed by the lead developer of Cleanflight to be more capable than the previous-generation STM32F1-based boards after hearing feedback from the Cleanflight users, contributors and top-pilots.

36x36mm board with 30.5mm mounting holes
Weight ~6 grams
MS5611 barometer
HMC5883 compass
STM32F303 CPU, 72Mhz inc FPU
High-Capacity Flash (Acro and Deluxe)
MPU6050 accelerometer/gyro
MicroUSB socket
2x 8pin JST-SH sockets (PPM, PWM, SERIAL RX, GPIO, ADC, 3V, 5V, GND)
8x 3pin though-holes for pin headers for ESC/Servo connections
2x 4pin though-holes for pin headers for 2x serial ports
1x 2pin though-holes for pin headers for battery voltage
1x 2pin though-holes for pin headers for buzzer
1x 4pin JST-SH socket for I2C
1x 4pin JST-SH socket for SWD debuggin

Features:
Practical - Easy to access connectors and solder pads.
Configurable - Choose to use connectors, solder pads or pins.
Stackable - Mount to your PDB or OSD.
Compact - Only 36x36mm.
Professional - Symmetrical, Neat and Tidy.
8 Dedicated PWM outputs
8 PWM Inputs
36 I/O Connections
72Mhz Clock Speed
3 Hardware Serial Ports
64Mb Flash Storage

Ublox-M8N GPS:

A new generation Ublox GPS NEO-M8N,with low power consumption and high precision, the ultimate accuracy is 0.6 meters, actually almost 0.9 meters, greater than the previous generation NEO-7N 1.4-1.6 meters accuracy,support GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 protocol and mode or more.

Features:
Quick satellite searching, only need 10s to find 6 satellite in open space
Built-in compass, refresh rate up to 10GHz
Support GPS+BD+SBAS, or GPS+GLONASS+SBAS

CF-OSD:
Quick satellite searching, only need 10s to find 6 satellite in open space
Built-in compass, refresh rate up to 10GHz
Support GPS+BD+SBAS, or GPS+GLONASS+SBAS

Pakcage included:
1 x Racing F3 flight controller
1 x M8N GPS
1 x CF-OSD
