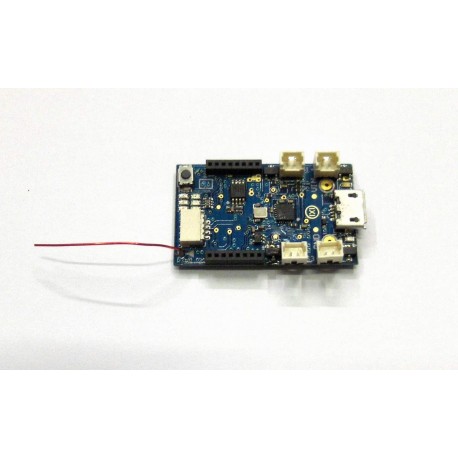

Micro Scisky V1.2 32bits Brushed Flight Control Board Built-in DSMX/DSM2 Compatible RX With 1.25mm Plugs

Αναφορά (SKU): 438608

Περισσότερες λεπτομέρειες

Διαθέσιμο

Εκτύπωση

Άλλες πληροφορίες

Description: For firmware flash manual
Size: 20.0*33.5*6.0mm (not including the USB protruding part)

Weight: 2.5g (including DSM2 compatible 7CH receiver, serial port output)

Frequency for driving motor: 2000 (the frequency can be set up by user, max frequency can be 32K)

Brushed ESC: continuous working current is 3.5A, max current is 5A(5S)

Feature:
Integrated with DCDC voltage booster circuit( output 5.0V/500Ma), it can supply power for other device through IIC and UART port

The hardware of the FC is based on Naze 32, test firmware is cleanflight Naze V1.9.0 and V1.8.1.

Noting:

It will enters binding mode only after powered of 10 seconds automatically, you need to try to get transmitter closer to the board
something like 5cm will be better. No binding button on the board.

The following parts are suitable for this flgiht control board: (not included)

Frame Kit: 110mm Carbon Fiber Frame kit
                  120mm Carbon Fiber Frame kit
90mm Carbon Fiber Frame Kit
             122mm DIY Micro Mini PCB Frame Kit
                 130mm Carbon Fiber Frame Kit

Propeller: Eachine 75mm Blade Propeller
Eachine 55mm Blade Propeller

Motor: Chaoli CL 720/820 Coreless Motor

Package Include:
1 x 32bits Brushed Flight Control Board (With 1.25mm Plugs)
