Description:
Brand Name: Eachine

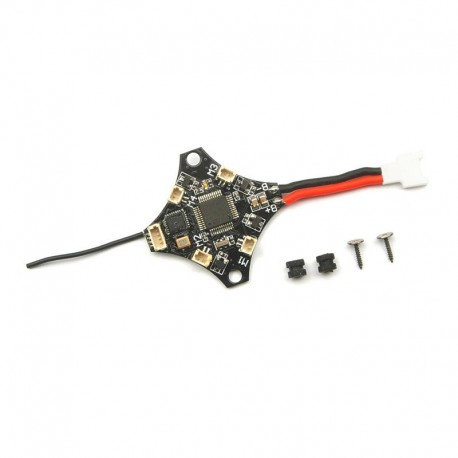

Item Name: F3_EVO_BRUSHED Flight Controller Built-in Receiver
Dimension: 29mm*29mm*7mm
Thickness: 1.2mm
Weight: 3.1g
Coreless motor plug: SH1.0
Firmware: SP RACING F3 EVO 1.13.0
Support work voltage: 3.6v~4.2v(1S Lipo battery)

Integrated receiver option:
Frsky 8CH sbus receiver(D8 mode)
Flysky 6CH PPM Receiver(AFHDS)
DSM2/DSMX Compatible satellite Receiver

Features:
1.F3_EVO_Brush revision is out of the F3 EVO SP RACING is based on a SP RACING F3 EVO firmware 32 brush flight control.
2.Independent design of the circuit structure
3.Using STM32F303CCT6 + MPU6500, advanced hardware platform F3 guarantee more stable flight.
4.With a large and high quality current NMOS transistors, operating current of up to 10A or more. Each Brushed motor is equipped with freewheeling diodes.
5.Integrated 2.4G receiver, there are 3 types receiver option to choose.
6.With battery voltage detection and buzzer interface(solder pad)
7.LED_STRIP Function(solder pad)

Connection diagram:


Receiver configuration Manual


Package included:
1 x F3_EVO_BRUSHED Flight Controller Built-in Receiver
