Pixhawk PX4 PIX 2.4.8 32 Bit Flight Controller Autopilot with 4G SD Safety Switch Buzzer PPM I2C for RC Quadcopter

Μεγαλύτερη προβολή

Pixhawk PX4 M9N GPS PIX 2.4.8 32 Bit Flight Controller With Autopilot Safety Switch Buzzer PPM I2C RC Quadcopter Ardupilot

Αναφορά (SKU): PIX 2.4.8

Pixhawk PX4 PIX 2.4.8 32 Bit Flight Controller Autopilot with 4G SD Safety Switch Buzzer PPM I2C for RC Quadcopter

Περισσότερες λεπτομέρειες

Διαθέσιμο

Εκτύπωση

Άλλες πληροφορίες

Features:

Pixhawk 2.4.8 support the latest official ardupilot firmware and PX4 firmware.

1. The advanced 32-bit ARM CortexM4 high-performance processors STM32F427VIT6(2MB flash), can run NuttX CHIBOS RTOS real-time operating system;

2. 14 PWM / servo output;

3. Bus interface (UART, I2C, SPI, CAN);

4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;

5. Provide automatic and manual modes;

6. Provide redundant power input and failover;

7. Multicolor LED lights;

8. Provide multi-tone buzzer Interface

9. Micro SD recording flight data;

Specifications:

Interface

1 .5 high voltage compatible UART 1, 2 with hardware flow control

2. 2 CAN

3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input

4.Futaba SBUS compatible inputs and outputs

5.PPM Signal Input

6.RSSI (PWM or voltage) Input

7.I2C

8.SPI

9.3.3 and 6.6VADC input

10. External MICRO USB Interface

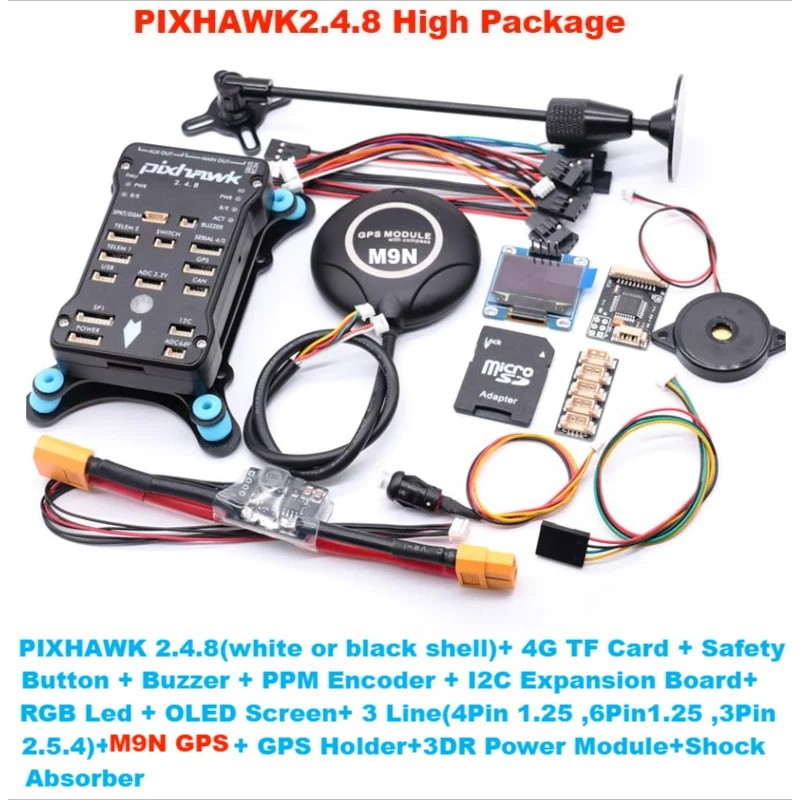

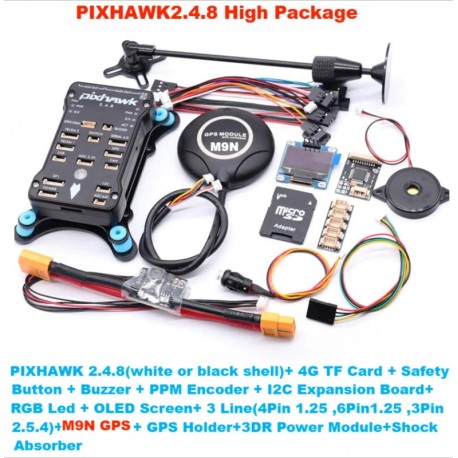

High Package:PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+ 3DR Power Module+Shock Absorber
