Νέο 30.5x30.5mm HAKRC 60A F7 V2 DJI Stack 7230V2 2-6S F7 Flight Controller Dual Gyro & 3B60A 60A BL_32 4in1 ESC Μεγαλύτερη προβολή

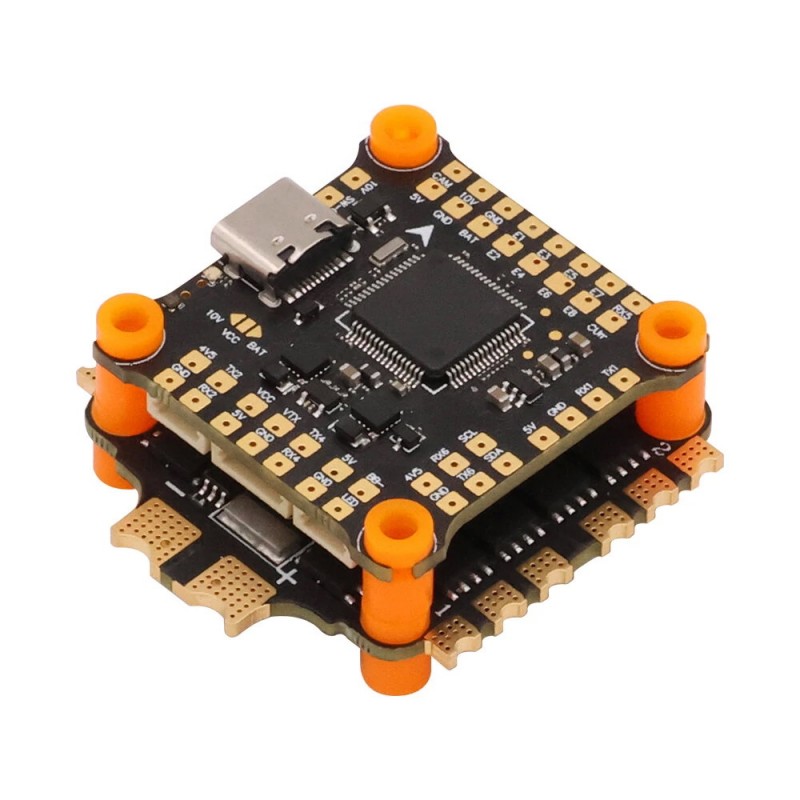

30.5x30.5mm HAKRC 60A F7 V2 DJI Stack 7230V2 2-6S F7 Flight Controller Dual Gyro & 3B60A 60A BL_32 4in1 ESC

(SKU): K22519

30.5x30.5mm HAKRC 60A F7 V2 DJI Stack 7230V2 2-6S F7 Flight Controller Dual Gyro & 3B60A 60A BL_32 4in1 ESC

Περισσότερες λεπτομέρειες

Διαθέσιμο

180,00 € με Φ.Π.Α

Άλλες πληροφορίες

Specifications:
Brand: HAKRC
Size: 44*44mm
Mounting Holes: 30.5mm-30.5mm
Package Size: 64*64*35mm
Product Weight: 15g
Package Weight: 54g
Hole Diameter: M4

F7 Flight ControllerMounting Hole Spacing: 30.5*30.5mm φ4mm
Processor: STM32F722RET6
Gyroscope: Dual ICM42688
BEC: 5V/3A ; 10V/2.5A
Storage: 16MB
Input Voltage: 2S—6S
Firmware: HAKRCF722V2
Uart Ports: 6
Comes with 4 programmable rainbow LEDs
Includes a 6P sky socket
60A Brushless ESCMounting Hole Spacing: 30.5mm-30.5mm φ4mm
Continuous Current: 60A
Peak Current: 70A (10 seconds duration)
Input Voltage: 2S-6S
Current Ratio: 160
Configuration Software: BLHeliSuite32Activator_32.9.0.3
Signal Support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600


Features:

STM32F722RET6 Processor: For rapid and smooth flight control, providing an enhanced flight experience.

Dual ICM42688 Gyroscope: Offers exceptional stability during complex flight maneuvers.

60A ESC: Built for performance, our ESC can handle peak currents of 70A for 10 seconds.

Programmable Rainbow LEDs: Add a unique touch to your drone with four customizable LEDs.

Broad Compatibility: With a wide range of supported signal modes and input voltages (2S to 6S), our kit is a versatile choice for all drone enthusiasts.

Package Includes:

1x F7 Flight Controller

1x 60A 4in1 ESC
8x M3 Orange Shock Absorption
2x 8P Cables
1x LED 4P Cable
1x CRSF Receiver 4P Cable
1x DJI 6P Connection Cable
1x 35v470uf Capacitor
1x XT60 Power Plug
1x Red and Black Power Cable
4x M3x25mm Screws
4x Black Nuts
