Tarot ZYX-S2 version 3 axis gyro ZYX23 Μεγαλύτερη προβολή

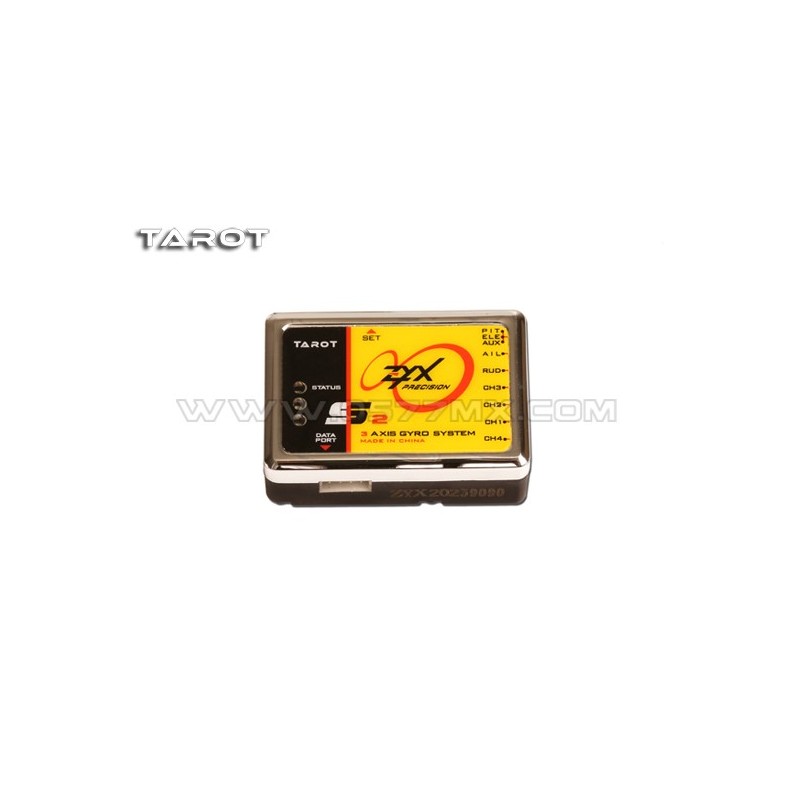

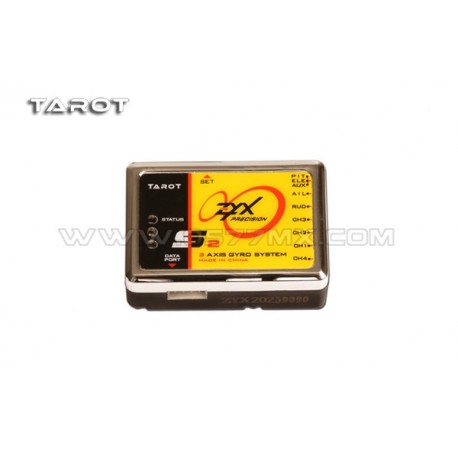

Tarot ZYX-S2 version 3 axis gyro ZYX23

(SKU): zyx23

Tarot ZYX-S2 version 3 axis gyro ZYX23

Περισσότερες λεπτομέρειες

Διαθέσιμο

95,00 € με Φ.Π.Α

Άλλες πληροφορίες

TAROT ZYX-S2 is the newly developed precision three-axis gyro, using new MEMS angular rate sensor and 32-bit microprocessor, new control algorithms and computer setup software, greatly enhance the spin stability , vibration resistance and flight performance. Suitable for all 200-800 size fuel or electric helicopters. Built-in supply voltage detection function, to ensure flight safety. Providing free firmware upgrade. Setup process is very easy, the whole process only takes 3 minutes
.
Specification
Dimensions: 37.2mm*25.2mm*13mm
Weight: 9.8g
Operating voltage: DC 3.5V-9V
Operating current drain: 40mA
Operating temperature:-15℃~65℃
Maximal angular rate: 2000 degreessec
Tail servo compatibility: 1.52ms analog servo, 1.52ms digital servo, 760us
digital servo, 960us digital servo
Swash plate servo compatibility: 1.52ms analog servo, 1.52ms digital servo
Receiver compatibility: Conventional receiver, S-BUS, DSMJ, DSM2, DSMX(will
support more by firmware upgrade)
Supporting firmware upgrade,Supporting Multi-Blade Rotor Head



Product specifications:

The ZYX three axis gyro x 1

The signal line x 3

Gyro shock stick x 5

USB data connection line x 1
