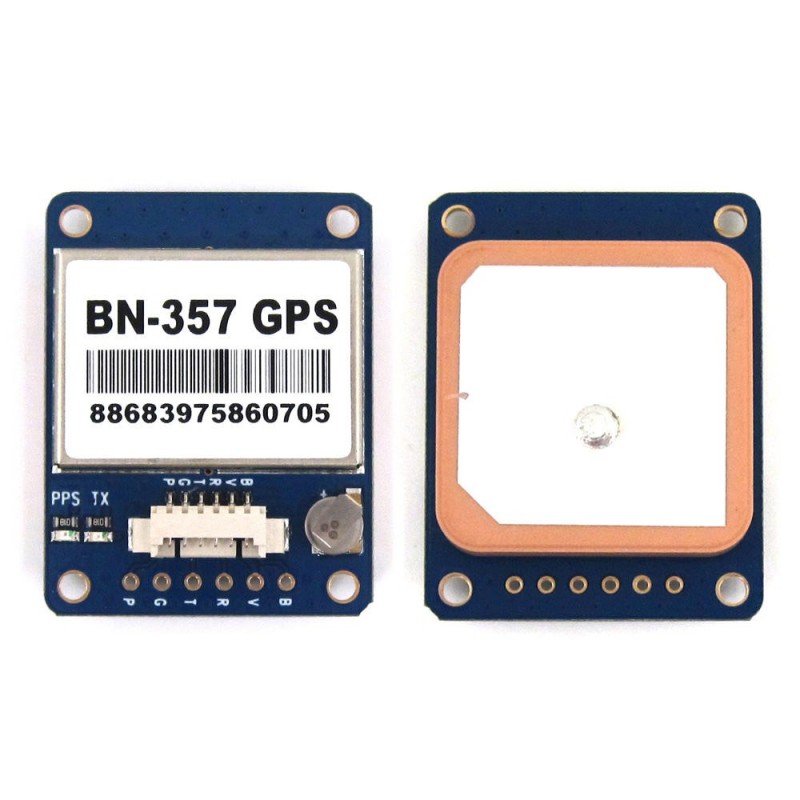

BN-357 GPS Module With Ceramic Antenna Support GPS GLONASS BeiDou for Pixhawk APM

Description:
Item number: BN-357
Item Name: GPS Module
Size: 35mm*27mm*8mm

The pins of the module:

1. PPS, there is a second pulse output after positioning, the pulse period is 1s, and the high level lasts for 100ms, which is used for system synchronization.

2. GND, ground.

3. TX, the data output of the module.

4. RX, the data input of the module.

5. VCC, 3.0V-5.5V, recommended 5.0V.

6. BOOT, please hang out during normal work.

GPS+GLONASS dual mode:

GPS+ Beidou dual mode:

Package Included:
1x BN-357 GPS Module

Features:

Iitem	Description
Electrical Characteristics	Chipset	M8030-KT
	Frequency	GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1
	Receiving Format	GPS, GLONASS, BDS, GALILEO, SBAS, QZSS. Default GPS, GLONASS, SBAS, QZSS.
	Channels	72 Searching Channel
Sensitivity	Tracking	-167dBm
	Reacquisition	-160dBm
	Cold Start	-148dBm
	Hot Start	-156dBm
Accuracy	Position Horizontal	2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
	Velocity	0.1m/sec 95% (SA off)
	Timing	1us synchronized to GPS time
Acquisition Time	Cold Start	26s
	Warm Start	25s
	Hot Start	1s
Data Output	Support Rate	4800bps to 921600bps, Default 9600bps
	Data Level	TTL Level
	Data Protocol	NMEA-0183
	NMEA Message	RMC, VTG, GGA, GSA, GSV, GLL
	Update Rate	1Hz-10Hz, Default 1Hz
	FLASH	4M FLASH, Store the configuration permanently
Operational Limits	Altitude	<50,000m
	Velocity	<515m/s
	Acceleration	<4g
Power Consumption	VCC	DC Voltage 3.6V-5.5V, Typical: 5.0V
Power Consumption	Current	Capture 50mA/5.0V
Mechanical Specifications	Dimension	35.0mm27.0mm8.0mm
	Weight	13.9g
	Connector	1.25mm 6pins connector
Environment	Operating Temp	-40 °C ~ +85°C
Environment	Storage Temp	-40°C ~ +105°C
LED	Built-in LED	TX LED: blue. The data output, TX LED flashing
LED	Built-in LED	PPS LED: red. PPS LED not bright when GPS not fixed, flashing when fixed

Pin Description:

PIN	PIN Name	I/O	Description
1	1PPS	O	1 Pulse Per Second when 3D fixed
2	GND	G	Ground
3	TX	O	TTL Serial Data Output.
4	RX	I	TTL Serial Data Input.
5	VCC	I	DC 3.6V - 5.5V supply input,Typical: 5.0V
6	BOOT	I	N.C.

Package Included (optional)
1x BN-357 GPS Module
1x 15cm Cable
