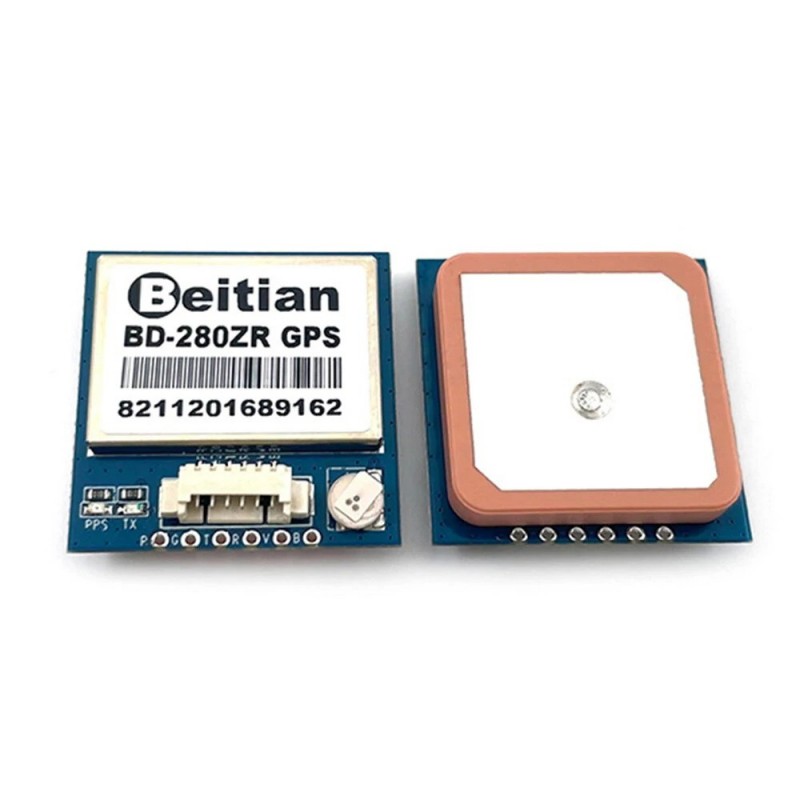

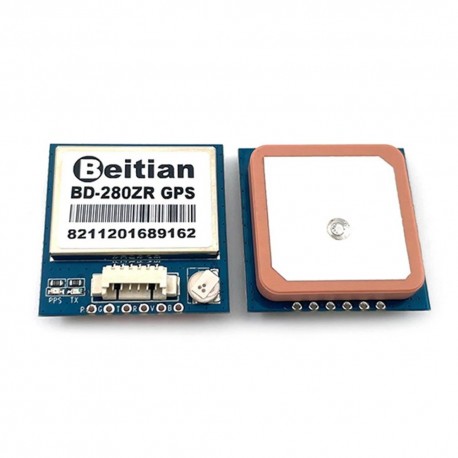

Beitian AT6558R BD-280ZR GPS GNSS GPS+BDS -162dBm Module FLASH TTL Level 9600bps for RC FPV Racing Drone

Αναφορά (SKU): J02909

Διαθέσιμο

Description:

Brand: Beitian

Item Name: BD-280ZR GNSS GPS Module

Size: 28*28*8.4mm

Weight: 11.8g

Chip feature	Chip: 6558R Frequency: GPS L1 BDS B1 Working mode: GPS+BDS Channel: 72 search channels
Sensitivity	Tracking: -162dBm Recapture: -160dBm Cold start: -148dBm Hot start: -156dBm
Precision	Horizontal accuracy: 2.0m CEP 2D RMS SBA Speed accuracy: 0.1m/s 95%(SA off) Time accuracy: 30ns
Start Time	Cold start: 32s Recapture: 1s Hot start: 1s
Output Data	Baud rate: 4800bps-921600bps, default 9600bps Output level: TTL level Output protocol: NMEA-0183 protocol NMEA sentences: RMC,VTG,GGA,GSA,GSV,GLL Update frequency: 1Hz-10Hz, default 1Hz
Work restriction	Height: ＜50000m Speed: ＜515m/s Acceleration of gravity: ＜4g
Power consumption	Voltage: DC 3.6V-5.5V, typical: 5V Current: Normal 50mA/5V
	Connector: 1.25 pitch 6pin socket
Environment	Operating temperature: -40°C~+85°C Storage temperature: -40°C~+105°C
Indicator light	TX light: The blue light flashes, indicating that there is data output PPS light: The light is off when not positioned, and starts to flash after 3D positioning

Package Included: (optional)

1x BD-280ZR GNSS GPS Module
