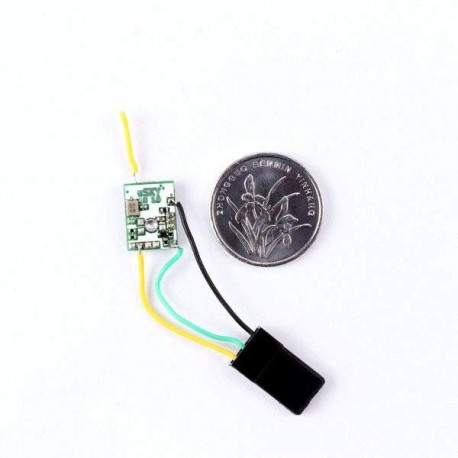

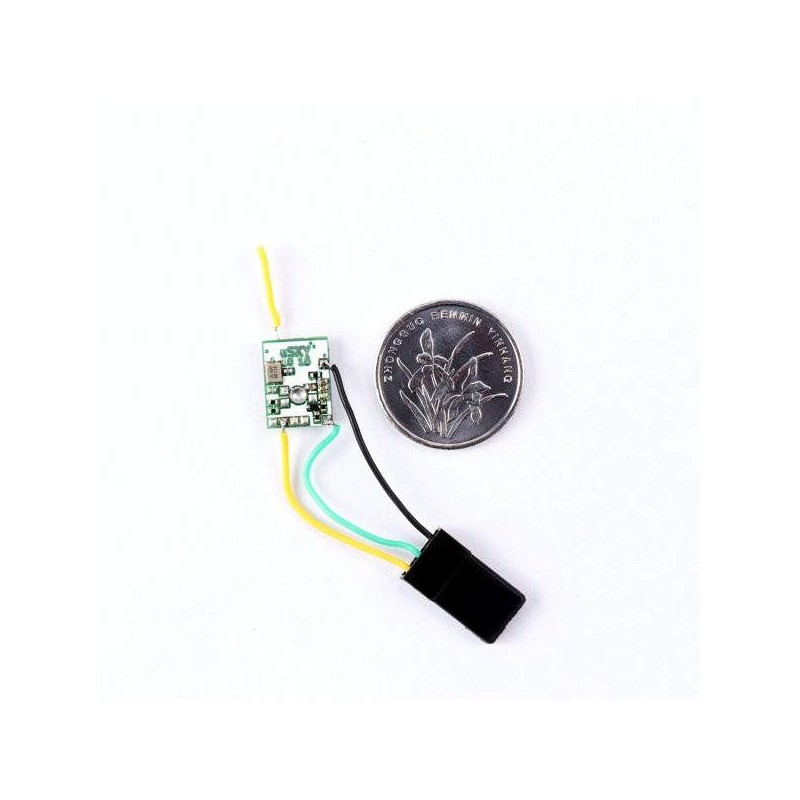

iRangeX RX803 Super Micro Receiver Compatible Frsky D8 X9D Plus SBUS Output

(SKU): 632107

iRangeX RX803 Super Micro Receiver Compatible Frsky D8 X9D Plus SBUS Output

Περισσότερες λεπτομέρειες

Διαθέσιμο

16,00 € με Φ.Π.Α

Άλλες πληροφορίες

Description:
Brand name: iRangeX
Item number: RX803
Voltage: 3.3V
Output: SBUS
Weight: 0.4g
Size: 11*9mm
Compability: compatible with Frsky D8 X9D Plus

Features:
* The world’s smallest and lightest FrSky compatible full telemetry receiver, weights only 0.4g and measures 11mm x 9mm.
* This RX has full analog and hub telemetry support and digital SBUS output.
* The PCB was designed to be as small as possible and can be soldered by hand.
* Compatible with Frsky D8 X9D Plus.

How to bind:

1. Short connect GND and DATA.
2. Turn on the transmitter, enter the bind mode (currently we only tested Frsky D8 transmitter, menu - page, select to Bind, ENT), at this time, the transmitter will continue to  sound , and the Bind word on the screen will keep flashing.
3. Receiver connect to 3.3V power supply.
4. In general, binding will success in a few seconds, the receiver will have a red light flashing, about one second flashed.


iRangeX RX804 Micro Receiver Manual, click here

Package Included:
1X iRangeX RX803 Micro Receiver
