Product Details

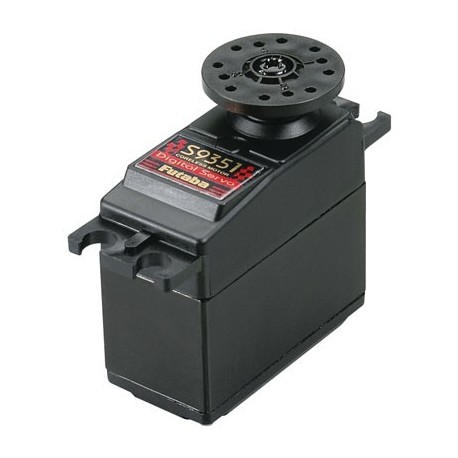

This is the S9351 Digital High Torque Coreless Servo for Car and Boat Use and Comes with "J" Connector Pre-Installed.

FEATURES:
Comes with Heavy Duty wiring that can handle Higher Current Loads.
New Metal casing which helps to dissipate heat
Coreless Motor
High Torque
Great for 1/8 Cars or Boats Where Higher Torque and Speed are Needed
One year limited warranty

INCLUDES:
(1) Digital High Torque Servo w/Small Round Horn
(1) 7.5" (190mm) wire lead
(2) Rectangular Grommets
(4) Chrome Bushings
(1) "T" Horn

SPECS:
Speed: .13 sec/60° @ 6.0V
Torque: 192 oz-in @ 6V
Weight: 2.1 oz (61g)
Length: 1.57" (40mm)
Width:  0.8" (20mm)
Height: 1.44" (36.6mm)

COMMENTS:
If Gear Set is needed, order FUTM3460.
If First Gear only is needed, order FUTM3500
Use with 6V receiver pack only

S9351 Digital Servo Precautions:
It is best to avoid long leads and Y-harnesses especially with standard grade wires. If problems are encountered, consider using heavy duty wire such as Futaba's Heavy Duty Series or Hobbico's Pro Series, minimizing lead lengths, and/or removing Y-harnesses.

Current Drain:
Futaba S9350 Servo is Specially Designed for High-Torque and High-Speed, Therefore Very High Current Drain Is Normal At Startup. For Ultimate Performance When Using This Servo Please Review The Following Points.

(1) When Using Systems With the Battery Fail Safe Function it Has a Higher Cut-Off Voltage Setting Which Will Cause Shorter Operation Time.
(2) When Installing the Servo Please Check Pushrod Linkage To Make Sure There Is No Binding in Order To Prevent Excessive Power Consumption and Decrease the Life of the Motor and Battery.

This digital servo cannot be used with the following * AM * transmitters as the servo neutral signal is: 1310us).
CONQUEST AM, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), New Terra-top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK series. Otherwise, this servo will work fine with current AM systems.
