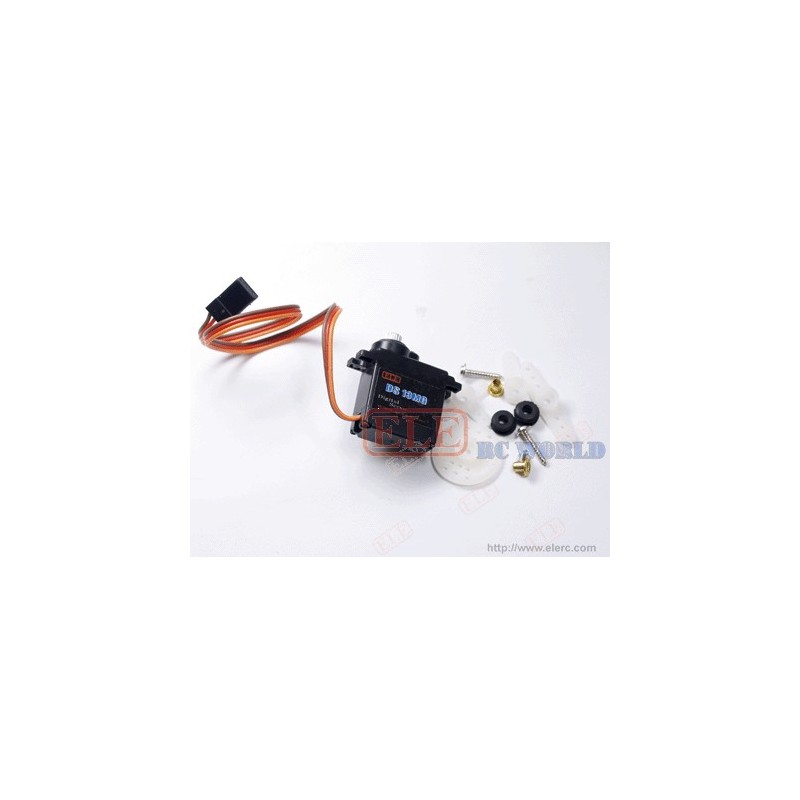

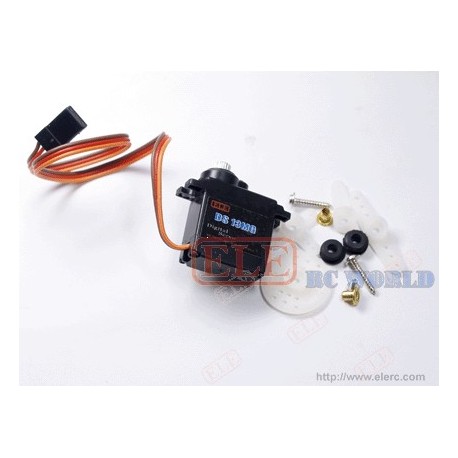

ELE DS13 Digital Servo Μεγαλύτερη προβολή

ELE DS13MG Digital Servo

(SKU): ES-1007

Διαθέσιμο

22,00 € με Φ.Π.Α

Άλλες πληροφορίες

Product Details

Why Digital Servo:
Electronic helicopters are widespread in this era and more accurate control is needed. Therefore, standard servos with logical chip are no longer suitable. A lot of servos of different volume and weight come out in today's model market. Though they have higher rotational speeds and torque, they don't have those characteristics of digital servos':

Digital Servo with Ball Bearing of 12.5g grade. Specially designed for 3D electric helicopter. Faster, Stronger, and More accurate.

  • Higher resolution
  • The tightest dead band
  • Accurate positioning
  • Faster control response
  • Quicker acceleration
  • Constant torque throughout the servos travel
  • Increased holding power when stationary

DS-13MG(Metal gear)

Operating voltage range
4.8V~6.0V
Operating temperature range-20? to +60?
Operating speed0.12sec/60°
Stall torque2.5kg.cm
Standing torque1.5kg.cm hold out @ 5°
Running current200mA/60° no load
FDead band width≤3mS
Operating travel40°/one side pulse traveling 400S
Motor typecored metal brush
Potentiometer type2 slider/direct drive
Dimensions22.5x11.5x24.6mm(0.89x0.45x0.97)"
Weight12.5g
Ball bearingMR85
Gear materialmetal
Connector wire length215mm(8.46in)
Connector wire stand counter24
Connector wire gauge28AWG



DS-13

Operating voltage range
4.8V~6.0V
Operating temperature range-20? to +60?
Operating speed0.12sec/60°
Stall torque1.8kg.cm
Standing torque1.8kg.cm hold out @ 5°
Running current200mA/60° no load
FDead band width≤3usec
Operating travel40°/one side pulse traveling 400usec
Motor typecored metal brush
Potentiometer type2 slider/direct drive
Dimensions22.5x11.5x24.6mm(0.89x0.45x0.97)"
Weight9g(.32oz)
Resin bearingResin
Gear materialheavy duty resin
Connector wire length215mm(8.46in)

DS-13BB

Operating voltage range
4.8V~6.0V
Operating temperature range-20? to +60?
Operating speed0.12sec/60°
Stall torque1.8kg.cm
Standing torque1.8kg.cm hold out @ 5°
Running current200mA/60° no load
FDead band width≤3usec
Operating travel40°/one side pulse traveling 400usec
Motor typecored metal brush
Potentiometer type2 slider/direct drive
Dimensions22.5x11.5x24.6mm(0.89x0.45x0.97)"
Weight9g(.32oz)
Ball bearingMR85
Gear materialheavy duty resin
Connector wire length215mm(8.46in)
