Μεγαλύτερη προβολή (SKU): CT8J

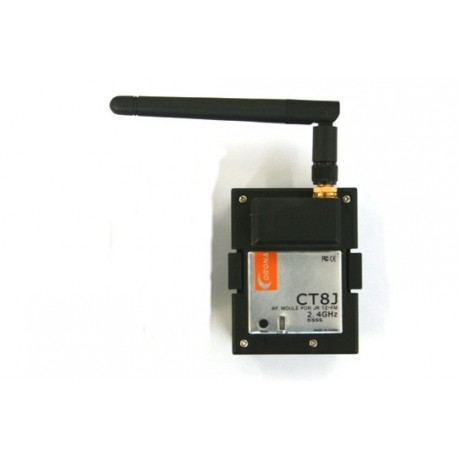

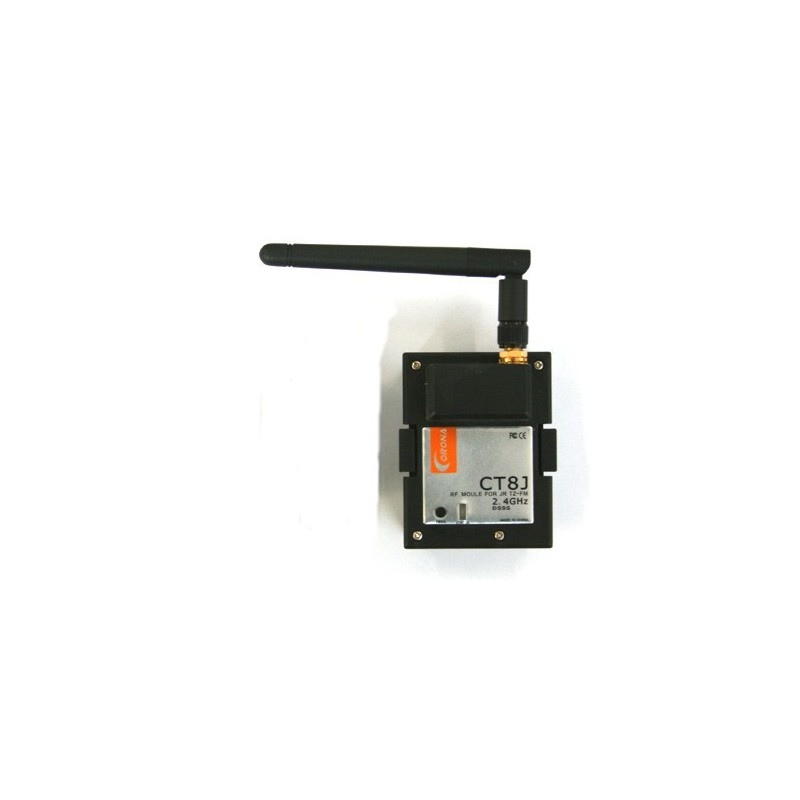

Corona 2.4GHz TX Module CT8J FOR JR DSSS V2
Διαθέσιμο
If you are JR hobby guy and want to update your JR replaceable RF Module FM Transmitter to the newest high-tech 2.4GHz system,CJ9 is your correct choice.
Compatible with JR radios include:
347,388,783,U8,PCM10,PCM10S,PCM10SX,PCM10IIs,8103,9303,MX-22,MX-24s
Size: 60 X 44 X 22mm (2.36 X 1.73 X 0.87 inch)
Antenna: 2dBi
When you are planning to update your radio into 2.4 G technology, our Corona CJ9 is your best choice .CJ9 is compatible with radios including:
347,388,783,U8,PCM10,PCM10S,PCM10SX,PCM10IIs,JR8103,JR9303,MX-22,MX-24s
Specification For Transmitter Module
Operating Voltage Range : 6.0V-13.0V
Operating Current : 100Ma
Output Power---- 10mW-60mW
Resolution : 10bit
Specification for Receiver
SRS81---- Fast Spread 2.4G Receiver work with Corona RF.Module
Operating Voltage Range --- 4.8V-6V
Operating Current --- 30Ma
Specified Range --- 1.5km
Resolutiong ---10 bit
Latency ---- 22ms
Sensitivity -- -100dbm
Channel --- 2CH , 3ch,4CH, 6CH, 8CH
we also sell the 2.4 g separate receivers as many customers need more 2.4 g receivers .Our 2.4 g receiver can work with both Corona 2.4 G Futaba mdoule and Corona 2.4 G JR mdoule
