OVERVIEW:

ES900TX and ES900RX modules are a set of Long Range 915MHz/868MHz(optional) wireless transmission equipment developed and designed based on the open source software ExpressLRS. This set of modules is characterized by ultra-long range, stable operation and low latency. The module is compatible with most Opentx remote controllers, especially suitable for Radiomaster TX16S and Jumper T12 T16 T18 series remote controllers, basically plug and play. We have specially customized the heat sink for the transmitter module, and also reserve the installation position of the 2006 fan which can help the transmitter module to operate stably under high power conditions.

New ES900TX module coming with a 2006 Fan, it would working automatically when the TX power is 250mw.

Specifications:

ES900TX:

MCU:ESP32+ESP8285

Dimension: 55mm*39mm*11mm

Weight: 9.2gram (only the TX module)

Antenna connector: SMA

VCC input: 5~13v, Recommend 5v~9v

RF Frequency optional: 915mhz or 868mhz(EU)

Maximum Output Power: <33dBm(For >27dBm operation, we recommend add a fan for force cooling)

Wifi update firmware function for ES900TX would be available in a short time.

As ExpressLRS firmware is constantly being improved and updated, we strongly recommend that you use the ExpressLRS configurator update firmware to get the best experience

Configurator: https://github.com/ExpressLRS/ExpressLRS-Configurator/releases

Firmware: https://github.com/ExpressLRS/ExpressLRS/releases

Bind procedure:

- Supply power to the ES900RX, wait until the red LED on the ES900RX are off, immediately turn off the power, and then repeat again the above steps. When the ES900RX is powered on for the third time, the red LED light will start to double flash quickly, which means that the ES900RX enters the binding mode.

- Insert the ES900TX or ES915TX module to Radio transmitter, and choose External RF mode to CRSF protocol, then you can find ELRS menu from the Radio systems, Enter into ELRS and press [Bind], the Red LED on the ES900RX module will turning off then start blinking slowly and finally getting to be solid , this means bind successfully.

ES900TX 915MHz:

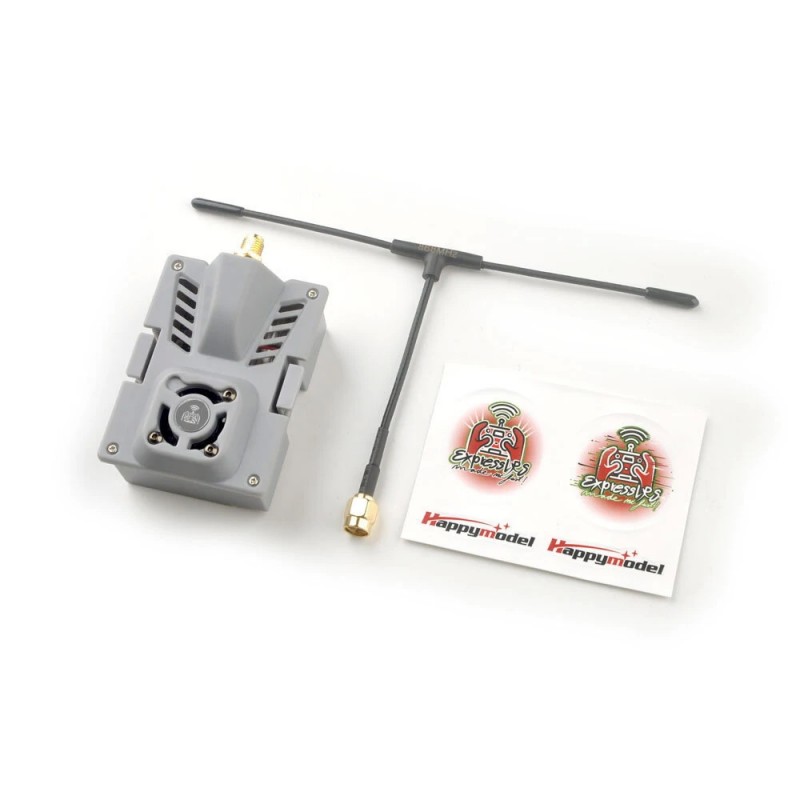

1 x ES900TX 915MHz Module

1 x TX 915MHz Antenna

1 x Molding JR Bay mounted case for TX module

1 x Heat sink

1 x Adapter wire

1 x 2006 Fan
