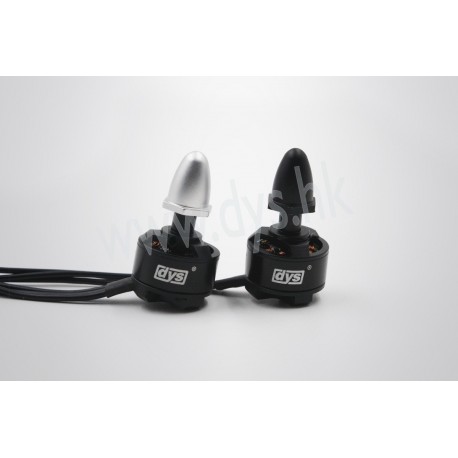

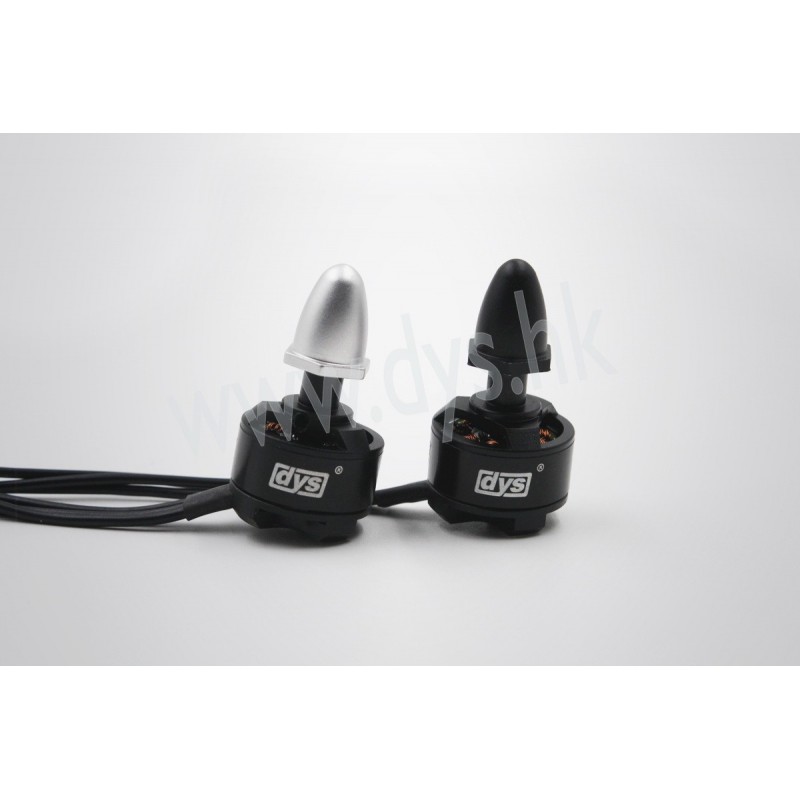

DYS Brushless Motor BE1306 (3100KV)

Αναφορά (SKU): BE1306-3100KV

Περισσότερες λεπτομέρειες

Διαθέσιμο

Εκτύπωση

Άλλες πληροφορίες

Specifications:
KV..............................................................................................................3100
Configu ration....................................................................................NP
Stator Diameter....................................................................................18mm
Stator Length..........................................................................................14.1mm
Shaft Diameter.......................................................................................M5
Motor Dimensions(Dia.*Len)...............................................Φ18×15.1mm
Weight (g)...................................................................................................12g
No.of Cells(Lipo).....................................................................................2-3S
Max Continuous current(A)............................................................7.9A
Max Continuous Power(W)...........................................................58.5W
Internal resistance..............................................................................Ω

	NO LOAD		ON LOAD				LOAD TYPE
VOLTAGE	CURRENT	SPEED	CURRENT	Pull	Power	EEP	Battery/prop
V	A	rpm	A	g	W	%	Battery/prop
7.4	0.4	23500	1.4	70	10.4	6.8	LiPoх2/5030
			3.3	140	24.4	5.7
			5.7	220	42.2	5.2
11.1	0.4	31400	2.1	100	23.3	4.3	LiPoх3/5030
			5.5	210	61.1	3.4
			9.4	350	104.3	3.4
7.4	0.4	23500	1.3	70	9.6	7.3	LiPoх2/6020
			3.7	150	27.4	5.5
			7.9	230	58.5	3.9
