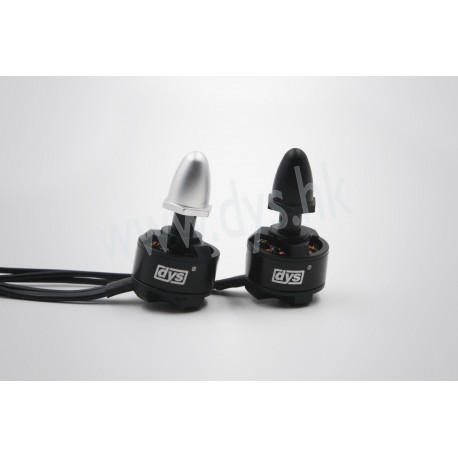

DYS Brushless Motor BE1306 (2300KV)

Αναφορά (SKU): BE1306-2300KV

Περισσότερες λεπτομέρειες

Διαθέσιμο

Εκτύπωση

Άλλες πληροφορίες

Specifications:
KV..............................................................................................................2300
Configu ration....................................................................................NP
Stator Diameter....................................................................................18mm
Stator Length..........................................................................................14.1mm
Shaft Diameter.......................................................................................M5
Motor Dimensions(Dia.*Len)...............................................Φ18×15.1mm
Weight (g)...................................................................................................12g
No.of Cells(Lipo).....................................................................................2-3S
Max Continuous current(A)............................................................5.7A
Max Continuous Power(W)...........................................................63.3W
Internal resistance..............................................................................Ω

	NO LOAD		ON LOAD				LOAD TYPE
VOLTAGE	CURRENT	SPEED	CURRENT	Pull	Power	EEP	Battery/prop
V	A	rpm	A	g	W	%	Battery/prop
7.4	0.3	17100	0.6	40	4.4	9.0	LiPoх2/5030
			1.6	80	11.8	6.8
			2.5	130	18.5	7.0
11.1	0.3	22800	0.9	70	10.0	7.0	LiPoх3/5030
			2.3	150	25.5	5.9
			4.3	220	47.7	4.6
7.4	0.3	17100	0.7	45	5.2	8.7	LiPoх2/6020
			1.6	80	11.8	6.8
			3.6	140	26.6	5.3
11.1	0.3	22800	1.1	70	12.2	5.7	LiPoх3/6020
			3	150	33.3	4.5
			5.7	220	63.3	3.5
