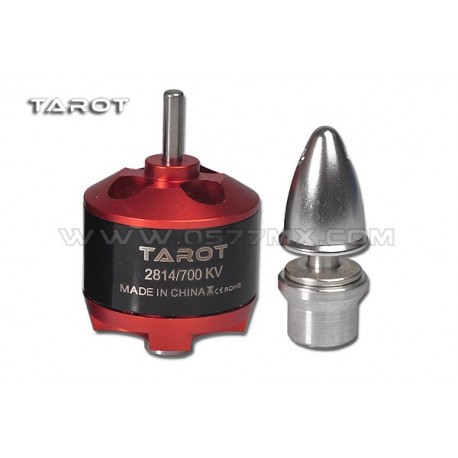

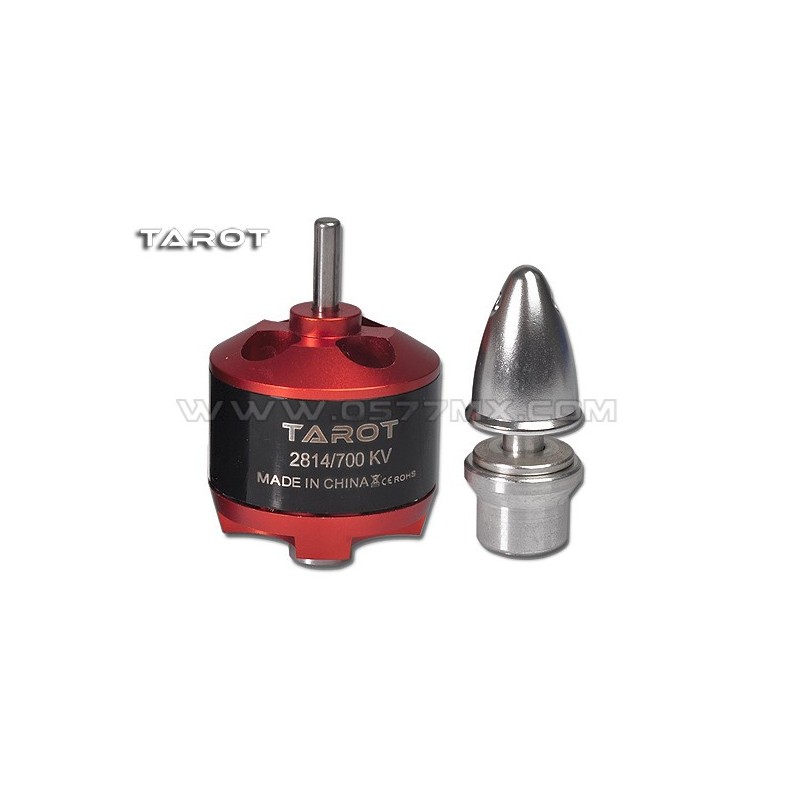

Product description: TAROT 2814/700KV efficient multi-axis brushless motor designed for multi-rotor aircraft designed for multi-axis aircraft in TL65B01/TL65B02/TL68B01/TL68B02/TL2778/TL2749D. Full CNC machined rotor high-magnetic material NdFeB refined, 12-pole stator with high strength epoxy pressure reinforce the protection of high-temperature, high-speed alloy steel motor shaft. Upper and lower motor cover using a high-speed precision bearings for large size, long life, high efficiency, low power consumption, low noise, and stability control superior characteristics.



Product parameters:

Motor peripheral diameter: 35.00mm

Stator diameter: 28.0 mm

Stator end thickness: 14.0 mm

Per volt speed: 700 RPM / Volt

Motor Weight: 102 G

Gear shaft mounting diameter: ¢ 4.0 mm

Motor shaft total length: 53.5 mm

No-load current: 0.8A

Installation diameter: ¢ 19MM, ¢ 25MM



Paddle Pitch: 6.3MM

Specifications:

2814/700KV multi-axis brushless motor x 1

3.5 banana plug × 3

The metal paddle folder × 1 group
