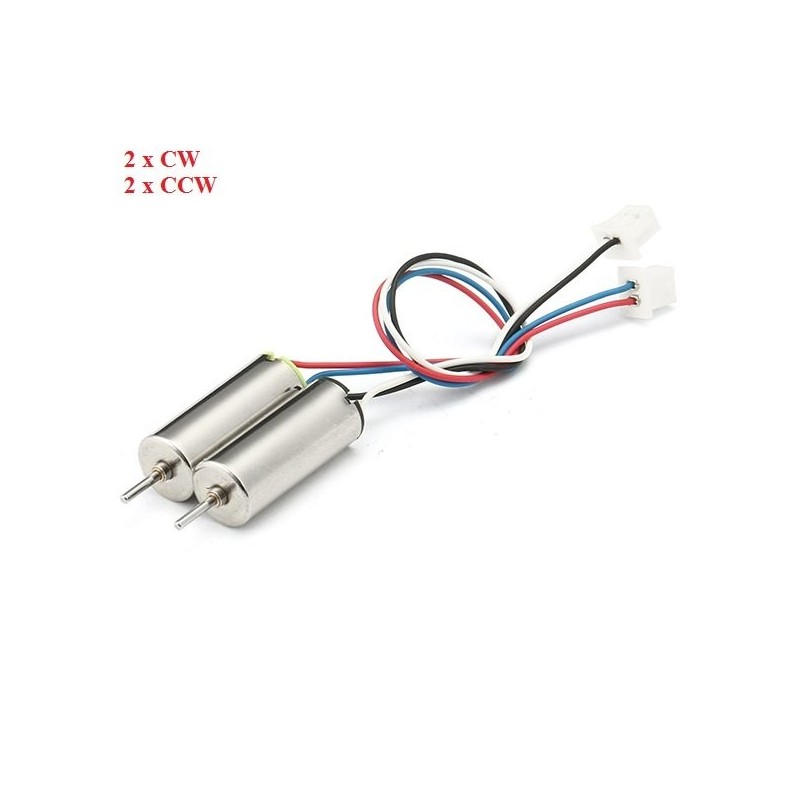

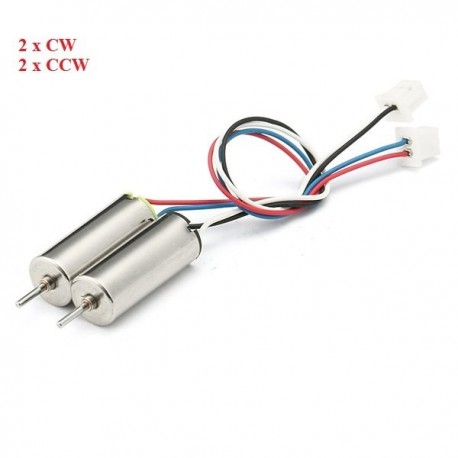

4X Chaoli CL-615 6x15mm Coreless Motor for 90mm-130mm DIY Micro FPV Quadcopter Frame Blade Inductrix Μεγαλύτερη προβολή

4X Chaoli CL-615 6x15mm Coreless Motor for 90mm-130mm DIY Micro FPV Quadcopter Frame Blade Inductrix

(SKU): 443467

4X Chaoli CL-615 6x15mm Coreless Motor for 90mm-130mm DIY Micro FPV Quadcopter Frame Blade Inductrix

Περισσότερες λεπτομέρειες

Διαθέσιμο

20,00 € με Φ.Π.Α

Άλλες πληροφορίες

Description:
Motor Diameter: 6mm
Motor Length: 15mm
Shaft Diameter: 1.0mm
Cable Length: 60mm
Weight: about 1.8g
Motor wire: Clockwise Motor(With Red Blue), Anti-clockwise Motor(With Black White)
Option: With 1.25mm JST plug
Quantity: 4 pcs (2 CW and 2 CCW)

1.Operating condition

Rated voltage3.7V DC
Direction of rotationCW and CCW
Operating voltage rangeDC2.0-4.2V DC
perating temperature range-10-50°C
Motor positionall position


2.Mearsuring condition

Motor positionhorizontal or vertical
Power supplyregulated DC power supply assuring unquestionable measuring
regulated DC power supply assuring unquestionable measuring10-30°C  30-95%
If the judgment is questionable,Measurent is to be made based on JIS Standard Testing Condition(20+2°C,65+5% )
Direction of rotationviewed from output shaft side


3.Electrical characteristics

ItemsSpecificationStandard value
NO Load speed55000rpm±12%55000 rpm
NO Load current160mA max95mA
Starting voltage0.8V max0.5V DC
Stall current2312mA ± 5%2312mA
Terminal resistance1.6Ω ± 5%1.6Ω
Insulation resistance10MΩ minAT 250V DC between
motor terminal and case
Mechanical noise
Under rated voltage		60 DB(A) max53dB(A)


Cautions:
1) Please use the motor in this technology index range for the performance of the motor is affected by environmental temperature seriously.
2) It is not allowed to operate in the high temperature with high humidity, and not allowed to contact with corrosive liquid and corrosive gas,should not to be stored and without running Continuously for more than six months.
3) Do not lock the motor shaft while the electric is on. The motor will be burnt out after the motor shaft was locked for more then 1 second.
4) Do not hit the motor directly.

Package included:
2 x CW motor
2 x CCW motor
