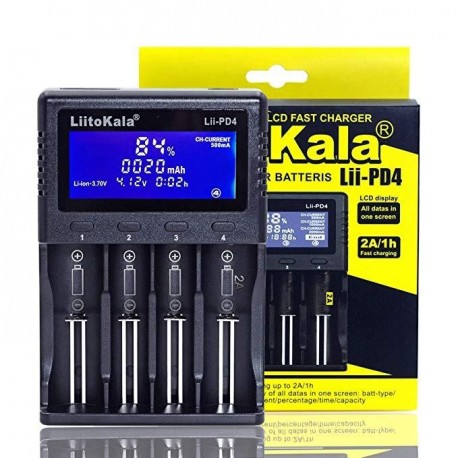

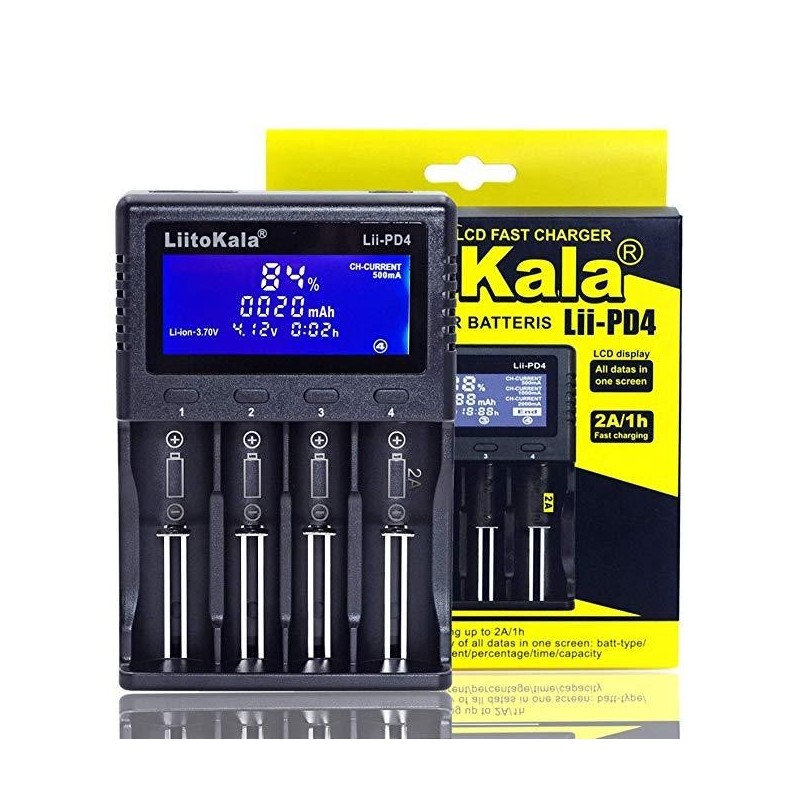

Liitokala Lii-PD4 LCD 3.7V 26650/21700/20700/18650/18490/18350/17670/17500/16340(RCR123)/14500/10440 1.2V AA AAA SC C Charger
Προσοχή: Τελευταία κομμάτια!
|Product name:||Liitokala Lii-PD4 LCD 3.7V NiMH Lithium Battery Charger US/EU Plug|
|Input:||AC cable 110V-240V 5060Hz/ DC 12V 1A (Selective)|
|Output Currnt (Li-ion):||500mA x4/ 1000mA x2/ 2000mA x1|
|Output Currnt (Ni-MH):||500mA x4/ 1000mA x2|
|Output Voltage:||1.48V/ 4.2V/ 3.6V/ 4.35V|
|Constant Voltage Cut-off Current:||≤100mA|
|Size:||147mm(L) x 100mm(W) x 37mm(H)|
|For Battery:||1.2V Ni-MH/ Ni-CD to 3.7V Li-ion/ 3.2V Li-Fe/ 3.8V Li-ion battery.|
For AA AAA SC 18650/ 26650/ 21700/ 18490/ 17670/ 14500/ IMR 10440
1. Smart LCD screen, show all the charging status, like Charging Volume, charging time, Current, Volt, Battery type, etc.
2. Press the button to change the battery type,it will start to charge 5 seconds after setting the battery type (3.2V or 3.8V), 1.2V Ni-MH and 3.7V li-ion can be detected automatically, so it need set for only 3.2V and 3.8V batteries.
3. Charging current automactically Control 500mA,1000mA,2000mA(only no.4 slot support 2A out put,Ni-Mh/Ni-Cd max support 1A).
4. Multi-power input: AC cable 110-240V 50/60Hz (included)/ 12V 1A adapter(selective), four independent charging and micro computer management system.
5. Charge current intelligent auto-set of total three levels: 500mA /1000mA/2000mA), 2000mA is fixed only for slot#4.
6. Identify Li-ion and Ni-MH batteries automatically and adjust manually the charging mode for LiFePO4 and 3.80V li-ion batteries(IMR)
7 Refresh for OV battery. It will not charge any battery of1.65 -2.20V (refresh current can be detected only)
8. Multi-safety protection function of over-charge and over-discharge, short circuited, polarity reverse and so on. It can smartly identify broken batteries with much more safety.
How to Use:
Put the battery into the charger and press the button within8 seconds to select the battery type (automatically recognized as 3.7V Li-ion or 1.2V Ni-Mh. Charging starts after 8 seconds.
1. If no battery is put in, LCD keeps on Show Null, then into sleep mode.
2. When battery is detected in, LCD lights on AND 3.7V LCD keep flicker to indicate to set the battery type, if no operation, it begin to charge 5 seconds later automatically under detection, LCD will display the charging status, Like BATTERY TYPE, TIME, VOLUME, VOLT, CURRENT, CHARGED VOLUME.
3. Charger screen will automatically into sleep mode, tap the button can show the battery type for 5 seconds.
4. LCD screen will light on when charging finished, and you could disconnect them.
5. You do not need adjust charging current, charger will control it smartly, li-ion max support 2A, Ni-Mh/Ni-Cd max support 1A.
1. This charger can only charge a cylindrical lithium-ion batteries and nickel-metal hydride batteries, non-rechargeable lithium iron phosphate battery;
2. Before use, please carefully refer to the instructions, pay attention to the recommendation of the rechargeable battery charging current, do not exceed the recommended charging current;
3. Do not use other power adapter;
4. Chargers discharge may be hot, be careful not to burn;
5. Stop use, unplug the power, removing the battery;
6. it can only be used in normal room.
7. This product test data for reference only, please refer professional equipment.
1 x Liitokala Lii-PD4 Battery Charger
1 x Charging Cable
