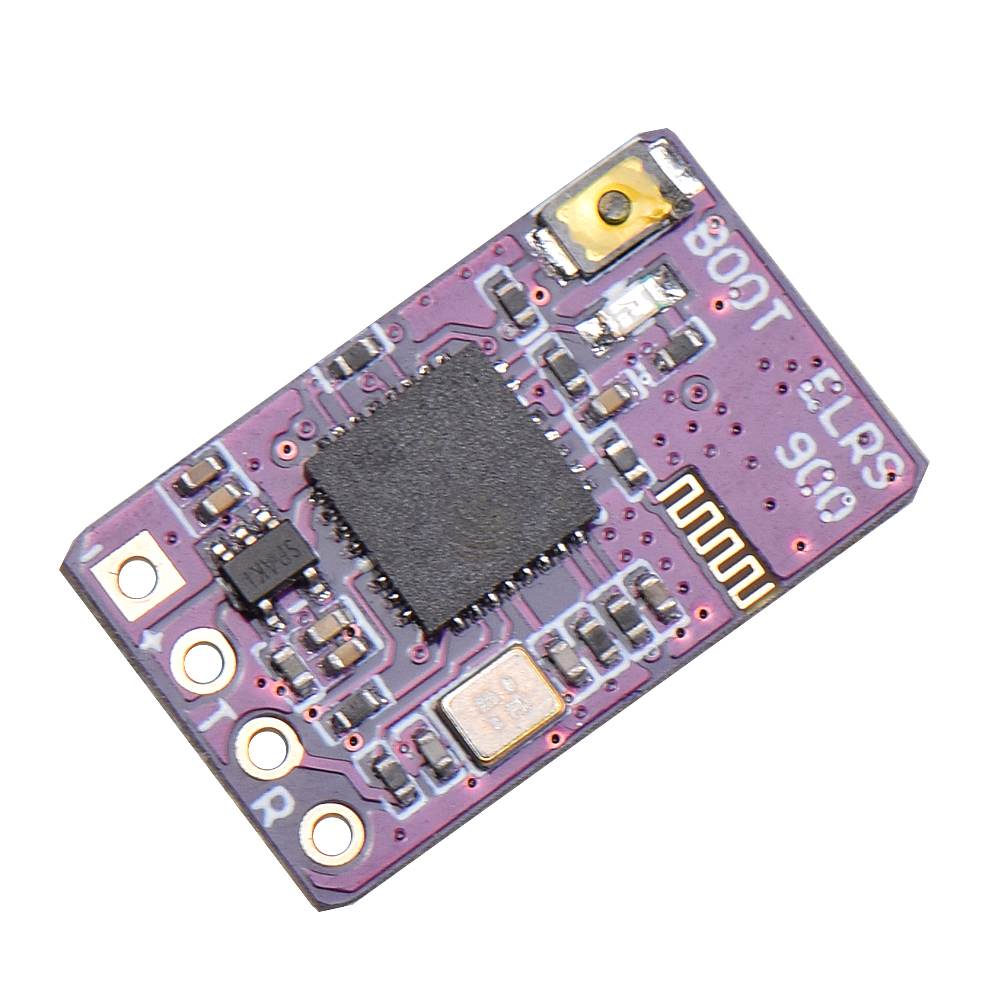

JHEMCU ExpressLRS ELRS 900RX 868/915MHz High Refresh Rate Low Latency Long-range Receiver ESP8285 MCU for RC FPV Racing Drone

Specifications:
Brand Name: JHEMCU
Item Name: 900RX RC Receiver
Model: 900RX

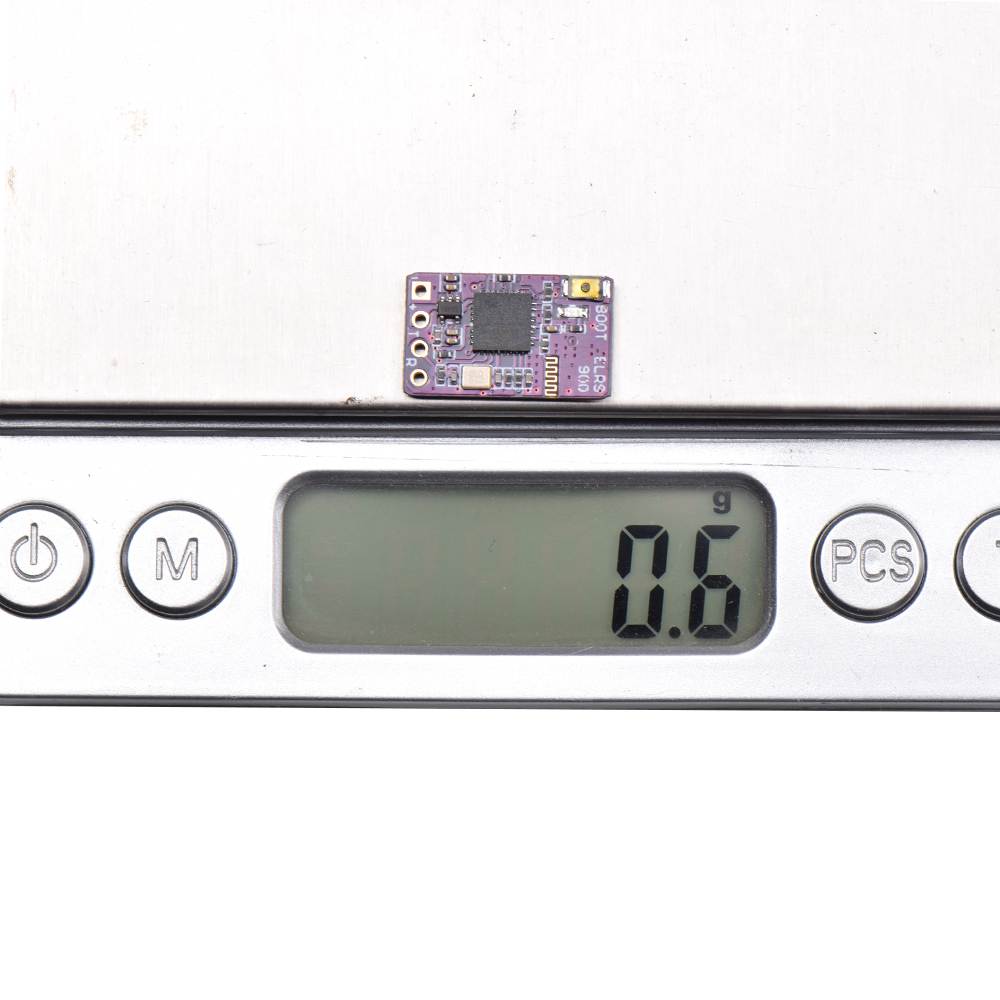

Weight: 0.6g(without antenna)
Size: 11*18*3 mm
915M FCC type (AU EU updates the firmware by itself)
ESP8285MCU
SX1276RF
Frequency range: 915MHz FCC
Maximum receiving refresh rate: 500Hz
Minimum receiving refresh rate: 25Hz
Working voltage: 5V

Linking Binding steps:

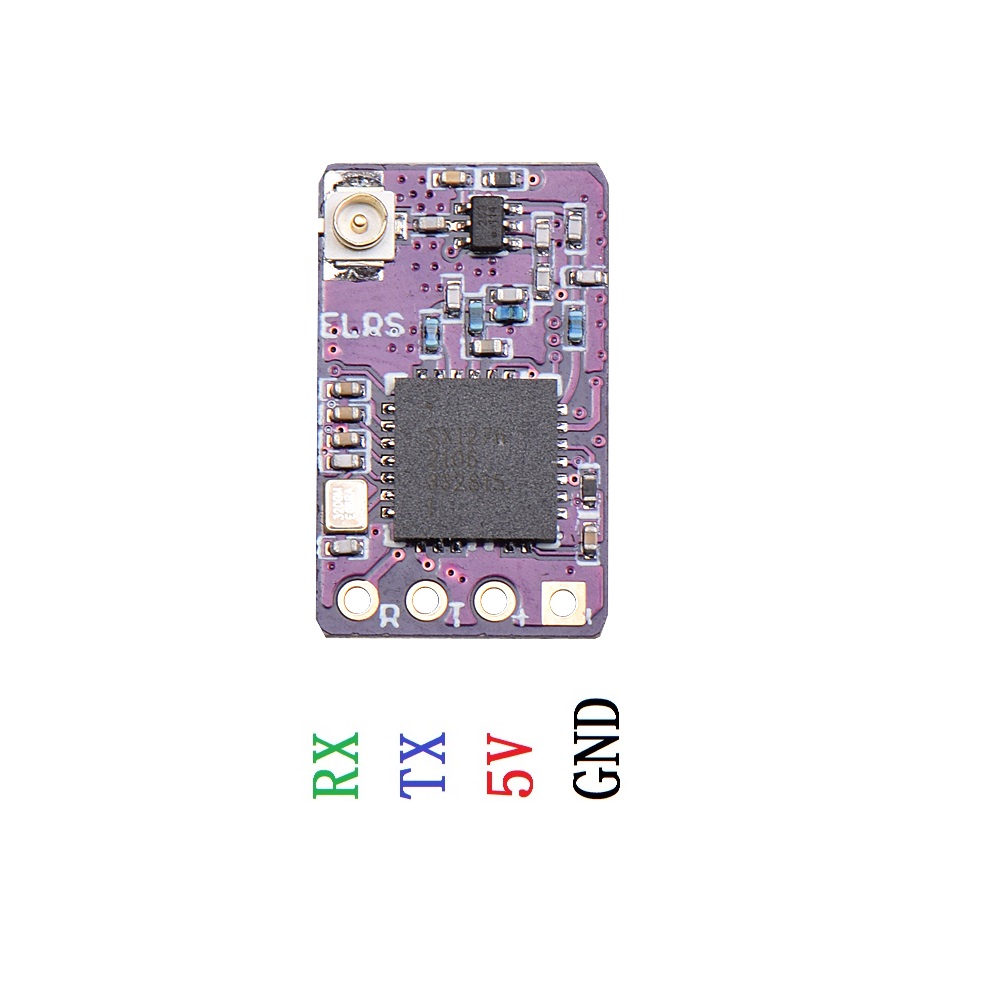

- After the receiver is connected to the flight controller, connect the USB to power the flight controller. After inserting the USB for the first time, disconnect the USB as soon as the LED on the receiver turns off. Repeat the operation twice, when the USB is inserted for the third time, the LED will start to flash double, and the receiver will enter the code matching mode.
- After correctly connecting the 915M (868M) ELRS tuner module and the remote control, copy the ELRS.LUA file to the SD card in the remote control, the directory is SD Card/Scripts/tools, and then run ELRS.LUA for Bind operation.
- After the binding is successful, the LED on the receiver will become steady on, and the telemetry signal can be received at the same time.

Indicator status:
Double flash: code matching mode
Slow flashing: No transmission signal is received
Steady on: receive the transmit signal
Fast flashing: WIFI upgrade mode
Package Include:
1 x 900RX RC Receiver
1 x T antenna
4xWire
