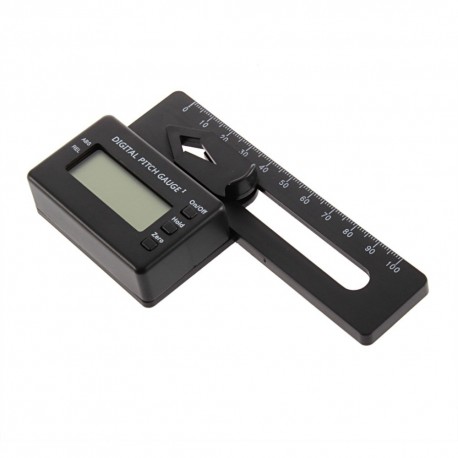

• -A perfect tool for accurate blade and pitch alignment which is essential for flybarless systems. Measurement is extremely fast and precise.
• -Amazingly convenient.
• -On/Off button allows you to conserve battery life.
• -Hold button will stop the sensor from updating the angle that it senses. Useful for those who are working in an unstable environment.
• -Zero button allows you to set "0" at any given position of the sensor. This allows you to see  your pitch travel at any interval.
• -Digital sensor is removable from the blade clip portion (attached by 2 magnets), allowing you to use it for any of your household angle-sensing needs!
• -Digital sensor is capable of being calibrated. If your sensor isn't seeing 90 degrees as 90 degrees, calibrate it and it will. Very cool function.
• -Operating Voltage: 3 V/DC button cell x 2, type CR2032
• -Current Consumption: 3 mA
• -Resolution: 0.1º
• -Operating Temperature: 0 to +40 ºC
• -Dimensions (W x H x D): 60 x 37 x 16 mm (pitch gauge)
• -120 x 68 x 6 mm (mounting plate)

Package Include:

• 1pc x pitch gauge
• 100% Brand New
