Product Details

1]. Installing the USB drive program on your PC.

2]. After you finished the installation, please run the program.

(1). Select COM port: COM port appeared when you installed the USB drive. If your choice is correct, the sideward light will be ashine, if you made a wrong selection, the light doesn't work. Besides, the top right textbox will show if the choice correct.

(2). Factory Default: you can make all the settings back to factory default.

(3).Textbox: when you are making the settings, there are some instructions in the textbox. If you want to delete it, just to click the "clear note".

How to program the ESC

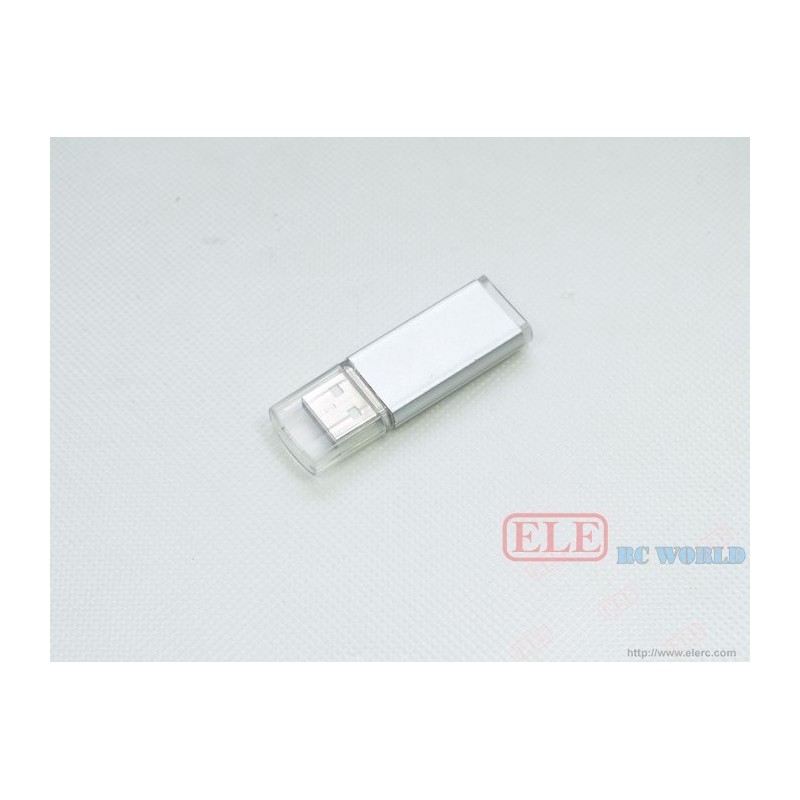

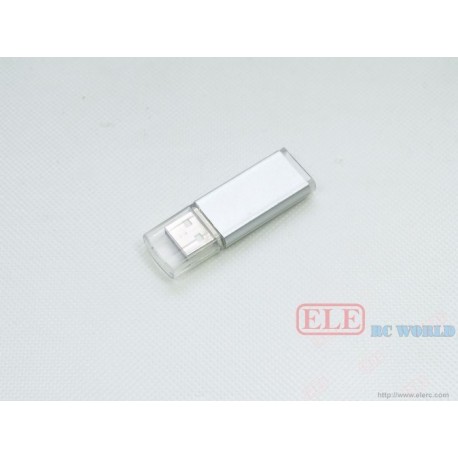

1] Connecting the ESC JR plug with ESC setting adapter cable, and insert the adapter USB into PC USB. Connect the ESC with motor and power.

2] Run the setting software on your PC, you can choose the language Chinese or English.

3] On the left top "setting COM port", if your choice for COM port is correct, the beside light will be light.

4] Select your ESC categories. E-hobby series ESC has airplane ESC, helicopter ESC, boat ESC and car ESC.

5]And then select your ESC model from controller Type, if your selection is correct, you will hear "bi", if there is no sound. I am sorry, your choice of ESC model or cable connection is wrong. Please check.

6} Now you can make settings. After you finish a setting, the motor will be "beep" one sound.

7] Completing all the settings, disconnect the adapter wires and then use the ESC.
