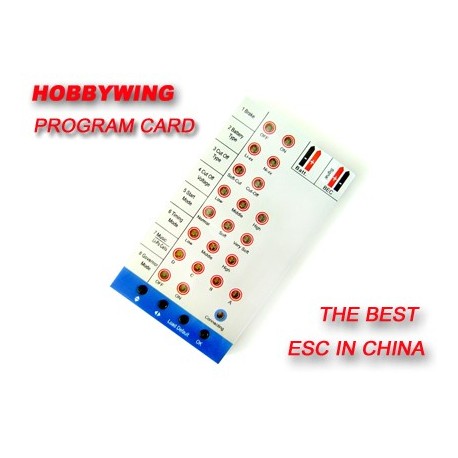

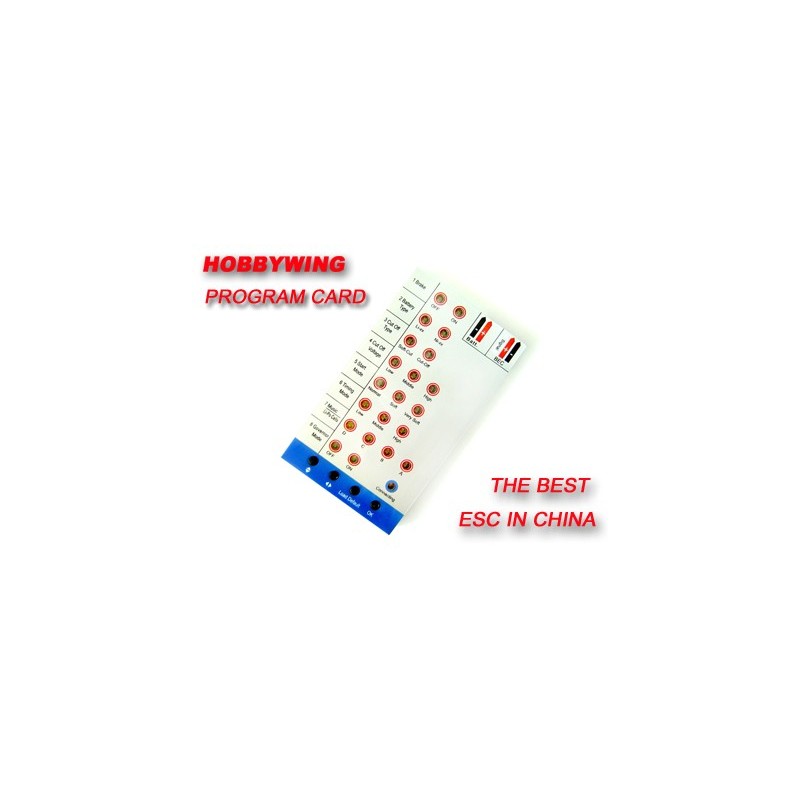

With HOBBYWING' s Program Card, you can easily set the programmable value of Electronic Speed Controller (ESC) for brushless motor. Now you can forget the complicated and boring programming method with the throttle stick of your transmitter.

HOBBYWING^TM  Program Card has a friendly user interface and easy to use. It is as small as a business card, so you can put it in your pocket when you are on field.

1  Specification

1.1 Size:  92mm (L) * 52mm (W) * 6mm (H). 1.2 Weight:  26g. 1.3 Input Voltage:  4.8-6V (If the ESC has not a built-in BEC, you must use a battery pack to supply the program card)
2  Front Panel



3   Wiring

4   How to Use It

4.1 Use "up/down" button to select programmable item, use "left/right" button to select item value; 4.2 Use "OK" button to save the settings in the ESC. 4.3 Use "LOAD DEFAULT" button to reset each item to its default  value. 4.4 Music: 4 pcs LEDs has 16 possible states, representing 16 rhythms.

5  MUSIC (RHYTHMS)

  = LED lights

No.	LED				MUSIC
	D	C	B	A
1					Disable the music playing function
2					Susanna (USA)
3					To Alice (Germany)
4					Ode to joy (Germany)
5					Take off your hood (China)
6					Jasmine (China)
7					Red river valley (Canada)
8					Auld Lang Syne (Scotland)
9					Jingle Bells (USA)
10					Song of Matador (Spain)
11					The end of the world (USA)
12					Rhythm of triumph (Germany)
13					Love is blue (USA)
14					Beautiful Spanish lady
15					Post carriage (Japan)
16					Love bird (China)

Product Details

2.1.1.       Use "up/down" button to select programming item, use "left/right" button to select item value;

2.1.2.       Brake: When "Brake " is ON, the motor will stop quickly after the throttle stick is moved to bottom;

2.1.3.       Low Voltage Protection Mode (Cutoff Type)?When "Soft-Cut" is selected, the ESC will reduce the output power gradually; When "Cut-Off" is selected, the ESC will immediately cut off the output power to motor.

2.1.4.       Low Voltage Protection Threshold (Cutoff Voltage)?

l         For Li-xx battery (Li-ion or Li-poly)?number of battery cells are judged automatically?Low / Medium / High cutoff voltage of each cell are: 2.6V/2.85V/3.1V. For example: 3 Cells Li-Poly, when "Medium" cutoff voltage is set, the cutoff voltage is: 2.85*3=8.55V

l         For Ni-xx battery (NiCad or NiMH), Low / Medium / High cutoff voltages are 0%/45%/60% of the startup voltage. For example: when a 10 cells NiMH battery pack is used, its fully charged voltage is 1.44*10=14.4V, when medium cutoff voltage is set, the cutoff voltage is : 14.4*45%=6.5V

2.1.5.       Music: 4 LEDs has 16 possible states, representing 16 rhythms. (For ESC supports above 6S Lipo, these 4 LEDs are used to indicate the cells number of your Lipo battery pack)

2.2.        CONNETING PROCESS:

2.2.1.       Disconnect the power pack from ESC;

2.2.2.       Disconnect the BEC cable from receiver, then connect it to program card;

2.2.3.       Connect the power pack to ESC;

2.2.4.       The LEDs on program card will light, shows the current programmable value of the ESC;

2.3.        OPERATION:

Press "up/down" button, you can select the programmable item, the corresponding LED will flash. Then press "left/right" button to select the item value, the flashing LED presents the value you have selected. Finally, press "OK" button, the blue LED will flash, means the new setting value is transmitted to ESC. When the data transmission is finished, the blue LED stop flashing and the brushless motor begins to play music, that means the new settings are accepted.
