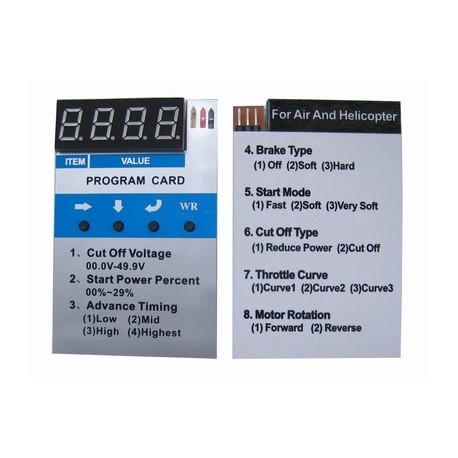

Program Card can display and modify the parameter item by the 4 digits LED and 4 buttons. When every parameter setting is done, push "write" key, all parameters can be saved into ESC automatically. The two of all parameters can be set quantificationally.

1. Low Voltage Protection Threshold: user can set proper voltage threshold according to cell quantity in range of 00.0-49.9V.

2. Start power: can be set in range of 00% - 29%. User can use different start power according to the different condition. Especially be suitable for ESC for Car and high-voltage ESC for Plane.

The keys function

KEY				WR
FUNCTION	To move the cursor horizontally. To modify the value which is more than one digit.	Two functions: 1. To browse every parameter. 2. To modify option or value of the parameter when entering this parameter item. The value is from 0 to 9 in loop.	Two functions: 1. When display a parameter item, press the key to enter this parameter item. Then the parameter value is flashing, user can modify the value. 2. Modifying is done, press the key to confirm the parameter value and exit.	Setting is done, press "WR" key to save setting parameter to ESC.

Program procedure

•

1.Connect the PPM wire of ESC to program card properly.

2.Connect the battery to ESC, program card will display "READ", the program card can automatically detect the ESC is used for Car or for Plane and read parameters from the ESC.

3.Display the version of the ESC. If it is the ESC for Plane and will display "P x.x"; if it is the ESC for Car and will display "C x.x", then display the first item after one second.

4.Press   key to browse parameter items.

5.Press  key to enter the item which needs to modify.  After entering the item, the parameter value is flashing.

6.Press  key to modify value (if the parameter value is more than one digit. press  key to shift to different digits.)

7.Press  key to confirm the modified value and exit.

8.Press WR  key to save the setting parameter to the ESC, and "good" will be displayed.

Configurable parameter with program card

When connecting Program Card and ESC, the program card can automatically detect the ESC is used for Car or for Plane and read parameters from ESC:
