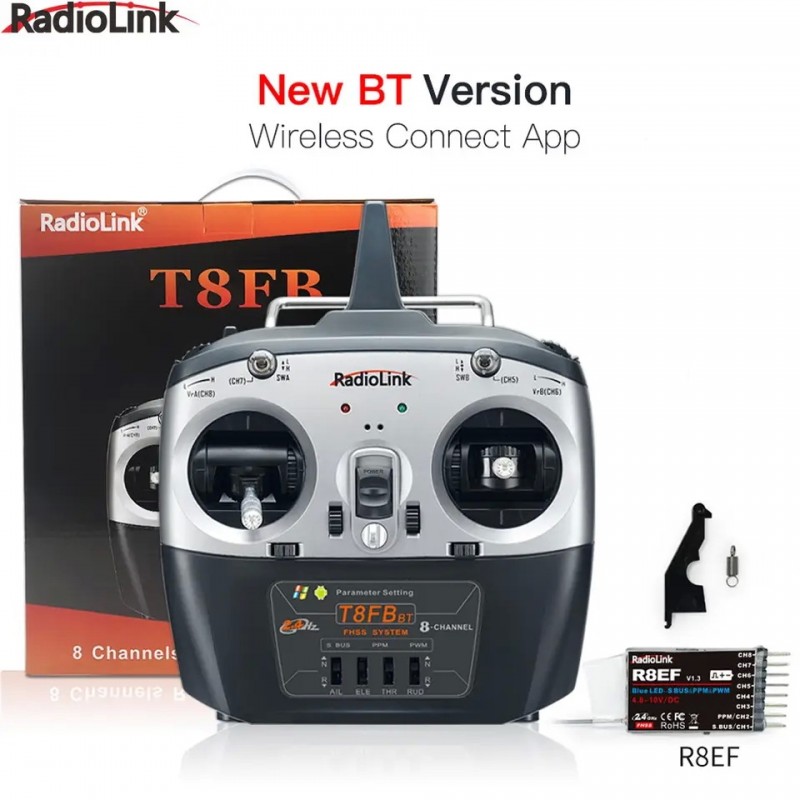

Radiolink T8FB Bluetooth Version 8CH RC Transmitter and Receiver R8EF 2.4GHz Radio Controller

SBUS PPM PWM for Drone Fixed Wing

T8FB Specifications

T8FB(BT) size: 173*102*206mm (6.8”*4”*8.11”)

Weight (with R8EF): 0.47kg（13.05oz)

Output Frequency: 2.4GHz ISM band（2400MHz~2483.5MHz）

Modulation Mode: GFSK

Channel Bandwidth: 400KHz

Channel Pacing: 1200KHz

Spread Spectrum: FHSS, 67 channels pseudo-random frequency hopping

Adjacent Channel Rejection: >36dBM

Transmitter Power: <100mW (20dBM)

Reception Sensitivity: -104dBM

Transmission Rate：38kbps

PWM Output Range: 1.0ms~2.0ms

Section precision: 4096, 0.5us per section

Cycle: 15ms/per frame

T8FB(BT) operating voltage: 4.8V~18V

T8FB(BT) operating current: <80mA

R8EF operating voltage: 3~12V

R8EF operating current: <30mA

Compatible receivers: R8EF (Std), R8FM, R8SM, R8F, R7FG, R6FG, R6F, R4FGM, R4F

R8EF Specifications

Size: 41.5*21.5*11.5mm (1.63” *0.85” *0.45”)

Weight: 7g (0.25oz)

Channels Qty: 8 channels

Signals: SBUS/PPM&PWM

Operating Voltage: 3~12V

Operating Current: 38-45mA@5V

Section Precision: 4096, 0.25us per section

Control distance: 2000 meters (1.24Miles) in the air (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).

Compatible transmitter: T8S/T8FB/RC6GS V3/RC4GS V3/RC6GS V2/RC4GS V2/RC6GS/RC4GS
