Νέο RadioMaster Zorro 2.4GHz 16CH Hall Sensor Gimbals ELRS Multi-protocol OpenTX/EdgeTX System Radio Transmitter Μεγαλύτερη προβολή

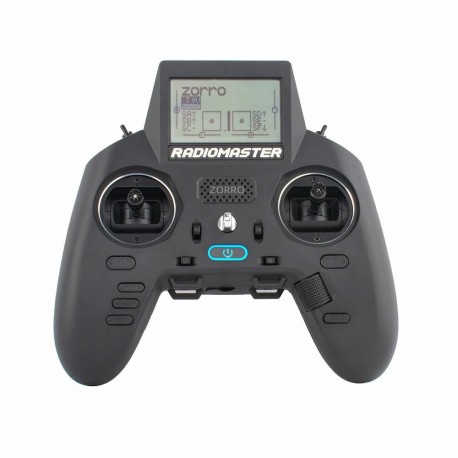

RadioMaster Zorro 2.4GHz 16CH Hall Sensor Gimbals ELRS Multi-protocol OpenTX/EdgeTX System Radio Transmitter

(SKU): I92053

RadioMaster Zorro 2.4GHz 16CH Hall Sensor Gimbals ELRS Multi-protocol OpenTX/EdgeTX System Radio Transmitter

Περισσότερες λεπτομέρειες

Διαθέσιμο

200,00 € με Φ.Π.Α

Άλλες πληροφορίες

OVERVIEW:

Featuring an ergonomic design, large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again.

Description:

Brand Name: RadioMaster

Item Name: Zorro Radio Transmitter

Weight: 350g

Size: 170*159*108 mm

Operating frequency: 2.400GHz-2.480GHz

Internal RF Options: ELRS 2.4GHz

Supported protocols: Module dependent

RF power: ELRS: 22dBm max.

Antenna gain: Folding 2db

Operational current: 160mA@8.4V

Operational voltage: 6.6-8.4v DC

Control distance: > 2km @ 20dbm

Operating system: OpenTX / EdgeTX Compatible

Control channels: Maximum 16 (Rx dependent)

Display: 128*64 Monochrome LCD

Battery: 2 x 18350 (Not included)

Charging: Built in USB-C Charging

Gimbal: Hall-effect

Module bay: Nano size (Compatible with TBS Nano Crossfires / Nano Tracer / IRC Ghost)

Firmware Upgrade method: Via USB or SD card (SD Not included)

Radio Firmware:

https://www.open-tx.org/

http://edgetx.org/

RF Firmware:

CC2500 & 4-in-1 Multi-module: https://www.multi-module.org/basics/supported-protocols

ELRS: https://github.com/ExpressLRS/ExpressLRS

Package Included:

1 x Zorro Radio Transmitter

Zorro Radio Control Specs
  VersionsZorro Radio Control
CC2500
Zorro Radio Control  4in1Zorro Radio Control ELRS Zorro Radio Control
ELRS Starter Set
Zorro Radio Control CC2500 + TBS Nano Crossfires Combo
  Physical dimensions170*159*108mm
  Weight350 grams
  Operating frequency2.400GHz-2.480GHz
  Internal RF OptionsCC2500 multi-protocol4-in-1 multi-protocolELRSCC2500 multi-protocol
  Supported protocolsModule dependentModule dependentELRSModule dependent
  RF powerCC2500: 20dBm max.4-in-1: 20dBm max. Up to 150mw ( CE & FCC Versions will be available)CC2500: 20dBm max.
  Antenna gainFolding 2db
  Operational current160mA@8.4V
  Operational voltage6.6-8.4v DC
  Control distance> 2km @ 20dbm> 2km @ 20dbmReceiver and Power Output dependant> 2km @ 20dbm
  Operating systemOpenTX / EdgeTX Compatible
  Control channelsMaximum 16 (Rx dependent)
  Display 128*64 Monochrome LCD
  Battery2 x 18350 (Not included)
  ChargingBuilt in USB-C Charging
  GimbalHall-effect
  Module bayNano size (Compatible with TBS Nano Crossfires / Nano Tracer / IRC Ghost)
  Firmware Upgrade
  method
Via USB or SD card (SD Not included)
