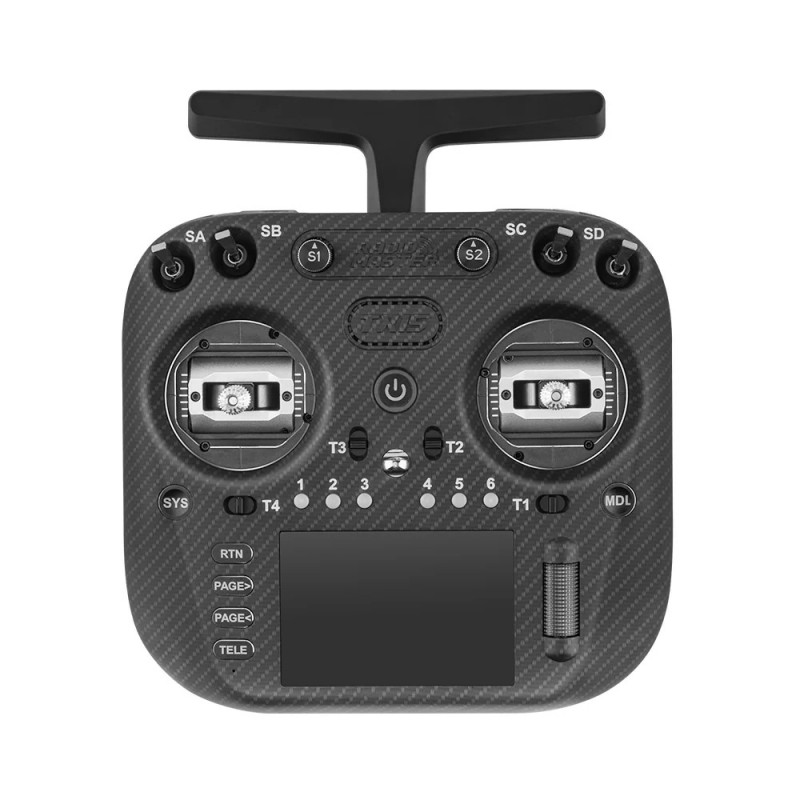

Radiomaster TX15 Max Built-in 2.4GHz/900MHz ELRS 16CH Radio Controller with AG02 CNC Hall Gimbal 3.5-Inch High-Visibility Color Touchscreen for FPV Racer Drones

RadioMaster continues to redefine the open-source remote control landscape. After years of collaboration with our open-source partners and users, we are proud to introduce the TX15 MAX. Driven by the high-performance STM32 H7 chip, it's the powerh0use behind our fastest radio ever — enabling u1tra-smooth EdgeTX control, instant model switching, and 1ightning-quick script execution. With 4GB of flash storage and MicroSD card expansion, you’ll have virtually unlimited space for models, scripts, sounds, and themes. The TX15 MAX features a LR1121 Semtech transceiver, supporting both 2.4GHz or 900MHz ExpressLRS (ELRS) for long-range, low-latency performance. Whether you're flying daily or operating in challenging RF environments, the TX15 MAX is built to perform. A smart balance battery circuit maximizes flight time, while the compact, foldable antenna design improves portability and ensures strong signal quality. The built-in gyro with TiltX/TiltY functions unlocks advanced control options, allowing you to trigger switches, pan/tilt cameras, or activate telemetry callouts with a simple tilt of your radio. Enjoy sharp visuals on the 3.5-inch IPS touchscreen with 262k color resolution and 600 nits brightness, even in sunlight. The TX15 MAX boasts AG02 CNC aluminum gimbals in anodized red, black or gold, upgraded aluminum buttons, a scroll wheel, and a carbon-fiber-look case for a premium feel. Integrated RGB LED lights around the gimbals allow customizable LUA-controlled lighting. It includes advanced cooling, a USB-C charging port, SIM connectivity, firmware updates, and fast memory access for top-tier performance. We’ve included additional switches so you can swap out the shoulder buttons with either a momentary or two-position latching switch—perfect if you prefer a traditional switch over a button.

Features:

* Blazing-Fast Performance: The STM32 H7 chip powers our fastest radio ever.

* Touchscreen Display: 3.5-inch, 480 x 320 IPS touchscreen with vivid colors and sharp detail.

* Precision Gimbals: the premium AG02 gimbals for enhanced smoothness.

* Built-in ExpressLRS: 2.4GHz / 900MHz ExpressLRS integration for reliable and long-range control.

* Smart Balance Battery Circuit: Maximizes battery efficiency and longevity for more flight time.

* Powerful, Cooling System: Low noise, high output fans and an aluminium heat sink keep your radio cool even on the hottest days.

* AG02 Gimbal: More than 20% reduced weight, with adjustable travel on both vertical and horizontal axis.

* Customizable RGB Gimbal Light- Ring: Integrated RGB LED lights around the gimbals allow customizable LUA-controlled lighting.

* Foldable Antenna: Compact and easy to store without compromising signal strength.

* Built-in Microphone: For future feature expansion.

* Built-in Gyro: Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.

* Memory: Integrated 4GB of onboard flash memory and external MicroSD card support.

* Interchangeable Shoulder Switches: Customize your controls to match your flying style.

Specifications

Brand: Radiomaster

Item: TX15 Max Radio Controller Size: 178*168*81mm Weight: 672g (without battery) Color: Red/ Black/ Gold Frequency: 2.400GHz OR Sub-G 900MHz Internal RF: ELRS 2.4GHz / Sub-G 900MHz Supported Protocols: Express-LRS Cooling Fan: Yes Transmitter Module: Built-in ELRS Built-in Flash Size: 4GB Built-in Microphone: Yes (Future expansion) Built-in Gyro: Yes (ICM-42607-C) MicroSD card* (Not included): 32GB/FAT32 (Inserting a MicroSD card will disable the onboard flash) Antenna Gain: 2dB (transmit power adjustable) Current: 875mA at max power output Voltage Range: 6.6 - 8.4V DC Radio Firmware: EdgeTX (Transmitter) (requires version 3.0.0 or later) Module Firmware: ExpressLRS Channels: Max 16 channels (Receiver dependent) Display: 3.5-inch IPS touchscreen (480 x 320 resolution) Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries not included) Connectivity: USB-C Gimbals: AG02 CNC Hall sensor gimbals Gimbal Sticks: M4 Upgrade Method: USB-C (UF2) Module Bay: JR-compatible module bay for additional modules

Dimensions:

Radiomaster TX15 Max Radio Manual: click here

Package Included:

1 * Radiomaster TX15 Max Radio Controller 1 * Signature Carry Case 1 * Short 2-position Latching Shoulder Toggle Switch Assembly 1 * Short 2-position Momentary Shoulder Toggle Switch Assembly 1 * 18650 Battery Tray 1 * USB-C Cable 1 * Screen Protector 1 * 1.5mm Hex Wrench 4 * High Tension Gimbals Springs 2 * Gimbal Stick Set Screw 1 * Stickers Set 1 * User Manual 1 * Inventory Card
