1. Description:
RKH 76mm Brushless Whoop is designed for Drone's Fans who want to build a 2S Micro Ducted Brushless Motor Kit (requires knowledge base about RC systems and soldering skill).
- Material: Delrin, TPU, 3K Pure Carbon Fiber and Stainless Steel Screws.
- Main Size: 76mm Frame, 40mm Propeller Duct, 1.0mm Thick Carbon Frame.
- FC Size: 16x16mm Square.
- ESC Size: 4in1 16x16mm Square.
- Weight: 7.98(g) = 0.28(oz).

2. Package Included:

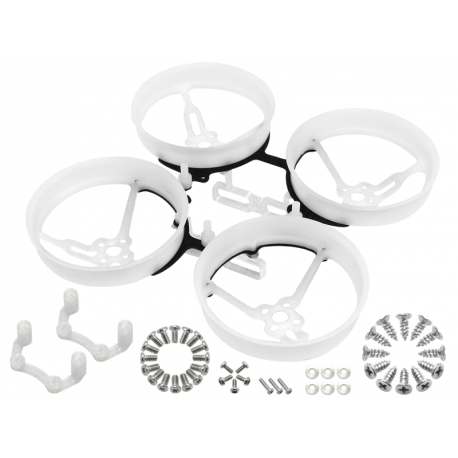

1 x Rakonheli 2S Delrin Carbon 76mm Brushless Whoop Kit (included hardware).

3. Needed To Complete:
FRSKY Version:
1 x FuriousFPV Racewhoop Smallest Brushless FC (SKU: FPV-0178-S)
1 x Fishpepper 5A BB2 48MHz DSHOT600 1-2S 4in1 ESC (SKU: FPV-0252-S)
4 x Racerstar BR1103 8000KV 1-2S Racing Brushless Motor (1.5mm Shaft) (SKU: BR1103-8000KV)
1 x 0.9g 8CH Micro Receiver with SBUS PPM Output Binding Button for FRSKY Transmitter
1 x FX805 FPV Camera 25mW or 5.8G 25mW VTX600TVL FPV Camera
1 x FPV Camera Mount (SKU: 3DP001, 3DP013) or Canopy (SKU:C02-H)
2CW+2CCW Rakonheli 40mm 3 Blade Transparent Propeller (1.5mm Shaft) (SKU: 3PROP4015-T)
2 x Battery: 1S 250mAh or 1S HV 255mAh.

SPEKTRUM DSM2 DSMX Version:
1 x FuriousFPV Racewhoop Smallest Brushless FC (SKU: FPV-0178-S)
1 x Fishpepper 5A BB2 48MHz DSHOT600 1-2S 4in1 ESC (SKU: FPV-0252-S)
4 x Racerstar BR1103 8000KV 1-2S Racing Brushless Motor (1.5mm Shaft) (SKU: BR1103-8000KV)
1 x 0.8g 2.4G DSM2 DSMX Pro Receiver for JR SPEKTRUM Transmitter (SKU:R0.8DSM2X)
1 x FX805 FPV Camera 25mW or 5.8G 25mW VTX600TVL FPV Camera
1 x FPV Camera Mount (SKU: 3DP001, 3DP013) or Canopy (SKU:C02-H)
2CW+2CCW Rakonheli 40mm 3 Blade Transparent Propeller (1.5mm Shaft) (SKU: 3PROP4015-T)
2 x Battery: 1S 250mAh or 1S HV 255mAh.
